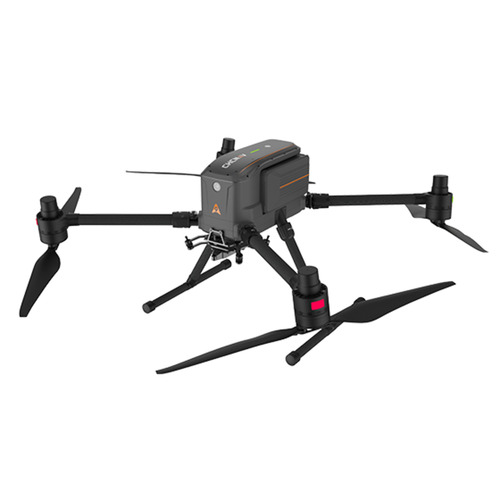

CHCNAV X500 Professional UAV Multirotor Drone Product Package - 8005 010 155

The CHCNAV X500 rotor UAV is a professional drone engineered for exceptional payload capacity and endurance. Equipped with advanced flight controls and high-precision positioning, it delivers superior maneuverability, stability, and flight performance. Its built-in visual SLAM and obstacle detection sensor ensure intelligent, safe operations. Compatible with CHCNAV sensors and third-party payloads, the X500 is ideal for applications such as surveying, urban surveillance, emergency scouting, disaster relief, and inspection missions.

• High Performance: The X500 supports a 5 kg payload capacity and offers a flight endurance of 58 minutes, or up to 50 minutes when equipped with the CHCNAV AA10 LiDAR. Its IP55 rating and 12 m/s wind resistance enable reliable performance in challenging environments.
• Optimal Flight Safety: The X500 features robust redundancy with dual GNSS, triple IMU backups, dual-redundant flight control, and safe return strategies. Its obstacle detection sensor ensures precise obstacle detection and avoidance, including trees, buildings, and towers. The V-SLAM visual positioning system enables landings on moving vehicles and vessels.
• Efficient Energy System: Paired with the BS10 charging station, which holds up to six batteries, it allows fast charging from 20% to 90% in just 40 minutes ensuring uninterrupted operation throughout
• Versatile Payload Options: The X500 supports up to 3 concurrent payloads and is compatible with CHCNAV LiDARs and cameras. Its open SDK interface facilitates integration with third-party devices, enabling customization for specific mission requirements. Built on the universal Mavlink protocol, it ensures adaptability to multiple applications.
• Long-Range Operation: The X500 uses CHCNAV’s video transmission system with a range of up to 20 km. Advanced algorithms optimize HD video transmission by minimizing latency and enhancing reliability. Its 1080p HD FPV feed and 10.1" large-screen remote control provide intuitive operating experience.
• Intelligent Flight Software: CHCNAV SmartGo ground control software supports diverse flight path options, including rectangular, strip, polygonal, and facade routes. It provides real-time updates on the drone's status, heading, and surrounding obstacles, ensuring enhanced safety for beyond-visual-line-of-sight (BVLOS) operations.

• Performance
  • Payload capacity : 5 kg max.
  • Flight time : 50 mins with CHCNAV AA10
• Physical
  • Type : Quadcopter
  • Battery life : Double hot-swap, with charging station
• Sensors
  • Camera : Yes
  • IMU : Yes
  • Obstacle avoidance : Yes
  • vSLAM : Yes
• Connectivity
  • Remote : CHCNAV SmartGo flight control software

• (1) S10614504050205002: X500 unit
• (1) 0201 051 283: X500 Accessories Kit
• (1) 4106 010 178: X500 Quick Start Guide
• (1) 0201 051 397: X500 Transport Container
• (1) 0201 051 346: X500 Propellers (A pair）
• (1) 4106 100 072: Checklist
• (1) (1) 0203 000 457: Landing Pad
• (1) 0201 051 402: Landing Pad Stakes
• (1) 4105 060 019: Remote Controller
• (2) 0101 020 525: Spare Antenna
• (1) 4104 080 019: International Universal Plug Adapter

Click Here for Data Sheet

Disclaimer:

• Some products featured on this page may require additional software to function properly. Such software may be sold separately and is not included in the listed product price. Please review individual product specifications for complete system requirements and compatibility details. For further information, please contact our sales team at sales@engineersupply.com, who will be happy to assist you.

• What support and training are available for professional drone platforms?
  • Drone operators must comply with regional regulations, which may include certifications, flight permissions, and specific operational restrictions.
• What are the regulatory requirements for operating professional drones in different regions?
  • The CTS-A100 delivers 2" angular accuracy, ensuring precise measurements for construction layout, topographic mapping, and other surveying applications.
• What is the protection rating of the X500? Can it fly in rainy weather?
  • The X500 features an IP55 protection rating to provide resistance to dust and limited water exposure. However, protection may degrade with prolonged use. Flying in rain exceeding 100 mm within 24 hours is not recommended.
• Does the X500 support GNSS PPK (Post-Processed Kinematic) differential technology?
  • Yes, the X500 supports PPK trajectory post-processing when equipped with a single camera payload, recording GNSS observation data for post-processing.
• What is the flight endurance of the X500?
  • The X500 offers up to 58 minutes of flight autonomy and features hot-swappable batteries, enabling repeated flights without interruption.
