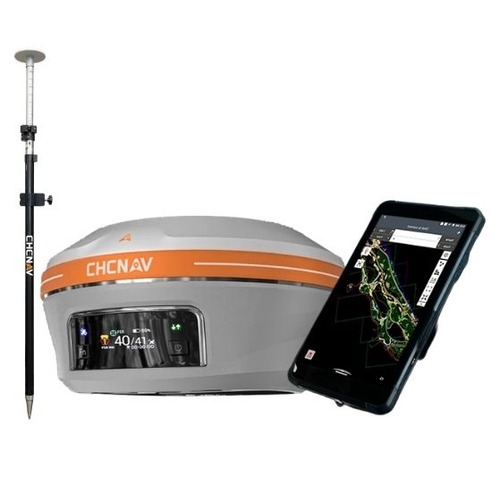

CHCNAV i93 Advanced IMU-RTK with Visual Surveying Rover, Complete Kit – 8001 010 304

The CHCNAV i93 Smart IMU-RTK GNSS Rover Complete Kit – 8001 010 304 is a high-performance surveying solution designed for professionals who need fast, accurate positioning in the field. Featuring advanced multi-constellation GNSS technology and intelligent IMU tilt compensation, the i93 delivers reliable RTK accuracy without the need to level the pole, helping crews work faster and more efficiently.

Equipped with integrated visual surveying technology, the i93 allows users to perform visual stakeout and collect points in hard-to-reach or obstructed areas with greater safety and convenience. Built-in 4G LTE, UHF, Wi-Fi, and Bluetooth connectivity provide flexible communication options for RTK network and base-rover workflows in demanding jobsite conditions.

This complete kit includes the CHCNAV i93 GNSS rover, data collector, essential field accessories, and LandStar 8 perpetual software, giving surveyors, engineers, and construction professionals a complete ready-to-work solution for surveying, mapping, construction layout, and GIS applications.
This Kit includes:

• i93 GNSS Receiver: A11551980007070507
• Range Pole (AR): 4102 020 026
• Power Adapter (5V2.4A): 4104 060 069
• UHF Whip Antenna (450-470MHz KQT450GT): 4101 030 004
• LT800 Android Tablet: 4002 020 012 (HCE600 Controller also available)
• Tablet Bracket: 0203 000 392
• Landstar 8 Data Collection Software: 1906 210 639

• Advanced Smart IMU-RTK GNSS Performance: The CHCNAV i93 features a powerful 1892-channel GNSS engine with support for GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS constellations, delivering fast initialization times and dependable centimeter-level accuracy for surveying, construction layout, GIS mapping, and engineering projects.

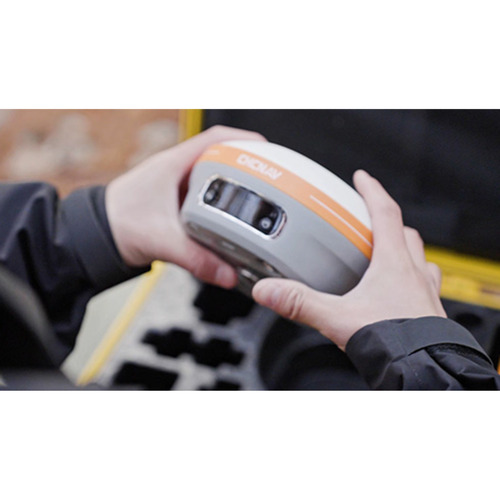

• Integrated Visual Surveying & AR Stakeout Technology: Built-in dual-camera technology provides advanced visual positioning and augmented reality stakeout capabilities, allowing users to capture measurements and stake points in obstructed or hard-to-access locations with improved safety and efficiency.
• Calibration-Free 200 Hz Auto-IMU Tilt Compensation: High-speed integrated IMU technology enables accurate tilt surveying without manual calibration or pole leveling, helping crews work faster while maintaining precise positioning results in challenging field conditions.
• Complete Professional Survey Kit: Includes the CHCNAV i93 Smart IMU-RTK GNSS rover, rugged Android data collector, LandStar 8 perpetual software, and essential field accessories for a complete ready-to-work surveying solution.
• LandStar 8 Perpetual Software Included: Advanced field surveying software provides intuitive workflows for data collection, stakeout, coordinate geometry, and project management with a perpetual license that requires no recurring subscription fees.
• Rugged IP68 Jobsite-Ready Construction: Engineered for demanding environments, the i93 features an IP68-rated waterproof and dustproof housing with up to 2-meter drop resistance for reliable performance in harsh outdoor conditions.
• Long-Lasting Battery Performance: High-capacity internal battery delivers up to 34 hours of continuous RTK rover operation, supporting extended field sessions with minimal downtime for charging.
• Advanced Connectivity & Flexible Communications: Integrated Bluetooth, Wi-Fi, NFC, 4G LTE cellular modem, and internal UHF radio provide seamless connectivity for RTK network corrections, base-rover communication, and efficient field-to-office data transfer workflows.
