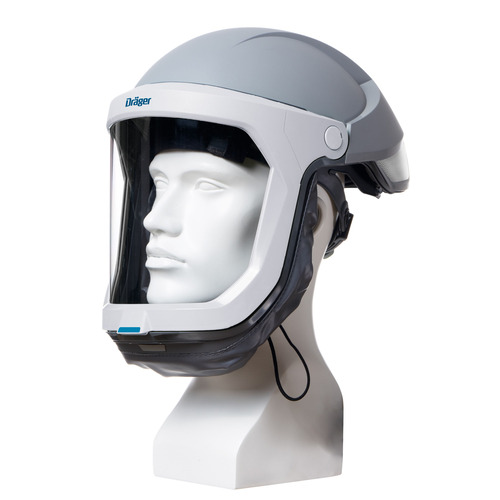

Draeger X-Plore 8000 Helmet w/ PC Visor and L1Z Neckpiece - 3710775

No matter how tough the conditions, the X-plore 8000 system from Dräger provides maximum respiratory protection without increased breathing resistance, even during long periods of time. Depending on the system configuration, it can also offer protection for the head, face including eyes, and hearing. The system consists of either an X-plore 8500 or 8700 powered air-purifying respirator for applications dependent on the ambient air or the X-plore 9300 compressed air line system for working with an independent air supply. Both are combined with a headpiece such as an X-plore 8000 helmet, faceshield, visor, hood or X-plore mask (X-plore 9300: only for loose fitting headpieces). The components can easily be combined for different use cases. No matter which product combination you choose, you can always rely on your equipment for maximum performance.

• Combines respiratory, head, eye, and face protection in one unit.
• Made of polycarbonate for high-impact resistance and clear visibility.
• Offers additional neck protection against particulates and splashes.
• Ergonomic fit with adjustable components for long-term wear.
• Designed to work with Draeger X-Plore 8500/8700 PAPR systems or the X-Plore 9300 airline system.
• Built to withstand tough environments without compromising safety or comfort.
• Quick donning and doffing with intuitive design and minimal training required.

• Length - Helmet seal: Short (L1Z), middle (L2Z), long (L3Z)
• Material - helmet seal: Zytec: Zytec® FR Tychem: Tychem® 2000 / Tychem® 4000
• Material - Visor: PC
• Material - Helmet: PA
• Material - Visor frame: ABS
• Material - Comfort padding: Foam material (EVA) with Lycra
• Material - Rigid foam shel: lPS
• Visor size: 26 x 17 cm
• Temperature range (operation): -5 °C to +50 °C
• Head harness: Ratchet, adjustable (52 – 60.6 cm)
• Air inlet: Hose connector at the back
• Air distribution: Airduct over the head, adjustable at the outlet
• Air outlet: Permeable, width adjustable textile cuff in the chin/neck area
• Colour: Grey (Helmet seal: grey)
• Weight: L1Z: 942 g L2Z: 1012 g L3Z: 1152 g L2T2: 962 g L3T4: 997 g
• Max. storage: 5 years
• Max. usage: 3 years
• Approvals: With X-plore® 8500/8700: NEN-EN 12941 - klasse TH1 (L1Z) / TH3 (L2Z/L3Z) With X-plore® 9300: NEN-EN 14594 - klasse 4A (L1Z/L2Z)/ 3B (L3Z) NEN-EN 397 (-30°C LD MM AC 440 V) ANSI Z89.1 (type 1 klasse G) 1 BT 9 3 - NEN-EN 166 ANSI Z87+
