Features

Perfect cut every time

To ensure precision accuracy, the SteelTrak’s unique pressure-sensitive clamp can be first applied lightly to allow for fine adjustments, before the pressure is increased for a firm hold. The clamp is designed to protect delicate boards and printed surfaces. The sightline strip helps you achieve exact alignment and all the blades cut along the same line.

Cut steel and aluminum composite safely and accurately

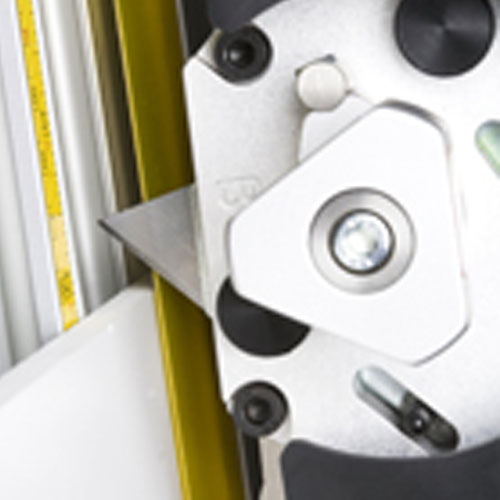

The newly developed SteelTrak C2 composite cutting head will cut steel composite panel, e.g Multishield and aluminum composite panel, e.g DiBond, in a single pass without creating dangerous sparks or dust. The new cutting head significantly reduces any curvature on the cut material to facilitate successful flat-bed printing and minimize waste. There is no need for extra edge finishing, so productivity is increased, and safety guaranteed.

Saves time and money

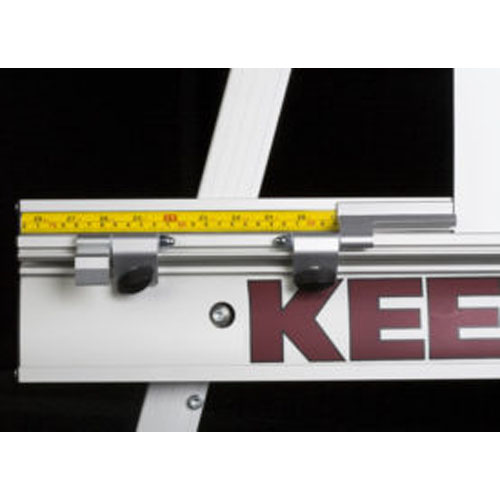

In a high production environment, repeatable accurate cutting reduces waste and increases productivity. A pair of left and right-hand production stops and a precise squaring arm allows users to quickly cut boards to a specific measurement. Scoring and cutting blades are permanently mounted for instant use and cut along the same line. With the SteelTrak, there is no need for additional tools or finishing products.

Cut and finish large sheet materials in one pass

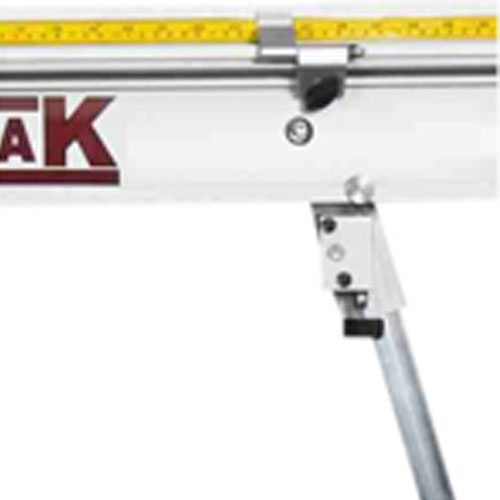

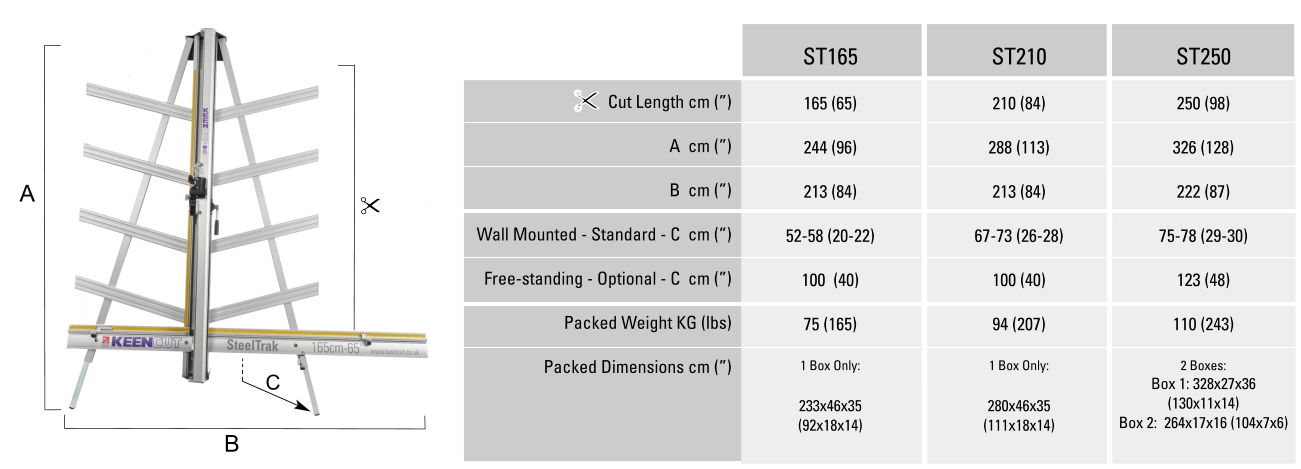

For those who need to cut larger sheet materials, the ST250 is the perfect choice. It will cut and finish 2.4m x 1.2m (8’ x 4’) sheet materials in one pass. Both the ST210 and the ST250 are fitted with an extendable arm to allow easy reach to the top of the machine.

Space saving and silent

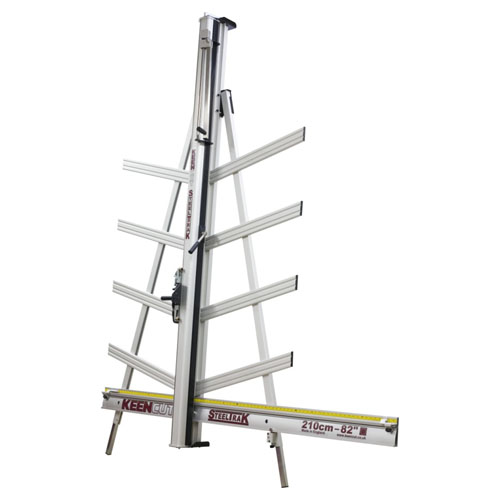

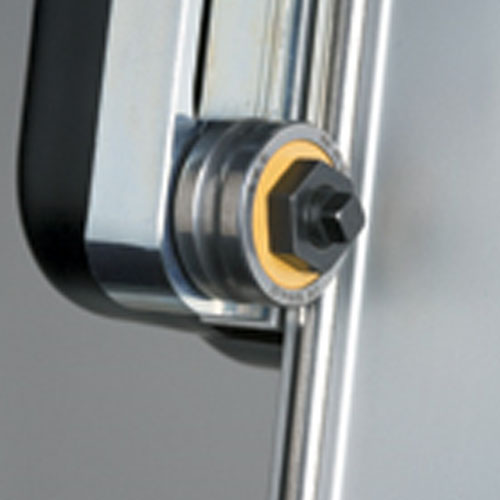

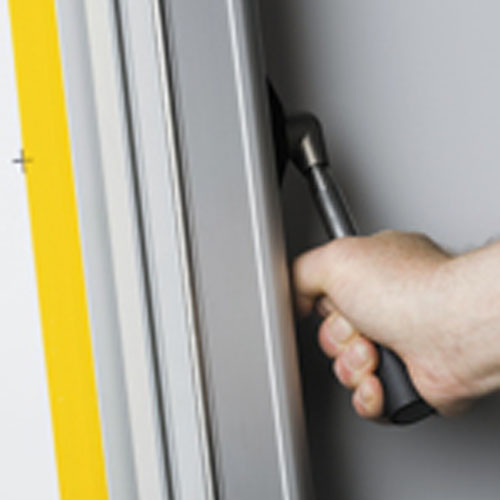

The upright structure and wall mounting feature saves workshop space. The design uses your body weight to minimize the effort needed to cut tough materials. There is no noise and no need for electric power and the upright design and the low friction bearing system combined together reduces user fatigue.

Sign trays and much more

With the addition of the optional V-groove tool, the SteelTrak creates perfect sign trays, self-standing displays, boxes and exhibition stands. The V-groove tool fits directly onto the SteelTrak cutting head and is ready for action in seconds.

In the box

Materials cut

Rigid materials
• Aluminum composite panel e.g Dibond ≤ 4mm (1/8″)
• Steel composite panel e.g Multishield ≤ 3mm (3/32″)
• V-grooves Dibond ≤ 3mm (3/32″) with optional SteelTrak v-groover
• MDF ≤ 3mm (3/32″)
• Cast acrylic / Plexiglas (scoring only) ≤ 3mm (3/32″)
• Glass ≤ 6mm (1/4″) with optional glass cutting kit (Product code: STGLC)

Semi-rigid materials
• PVC foamboard ≤ 13mm (1/2″)
• Corrugated/fluted plastic ≤ 13mm (1/2″)
• Corrugated cardboard ≤ 13mm (1/2″)
• Foam centred board ≤ 13mm (1/2″)
• Mountboard ≤ 6mm (1/4″)
• Aluminum sheet ≤ 1mm (1/25″) with optional cutting head ( Product code: STALC)
