Foster On-A-Roll Lifter Scoop - 61569

Product Code: ET13212

Condition: New

Your Price	$3,145.50 3145.50
	(You Save 10%)

List Price

$3,495.00

Qty

Accepted Payment Types

Easy Financing Available
as low as $52/mo
for 60 months. Details

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description

More Information

Reviews

Help

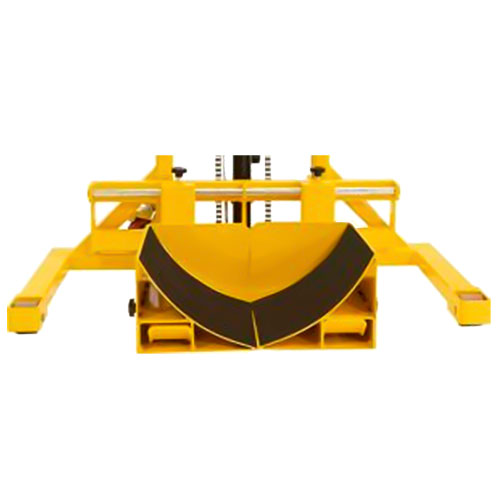

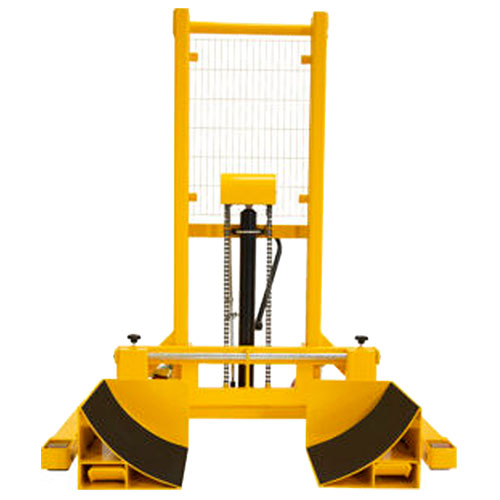

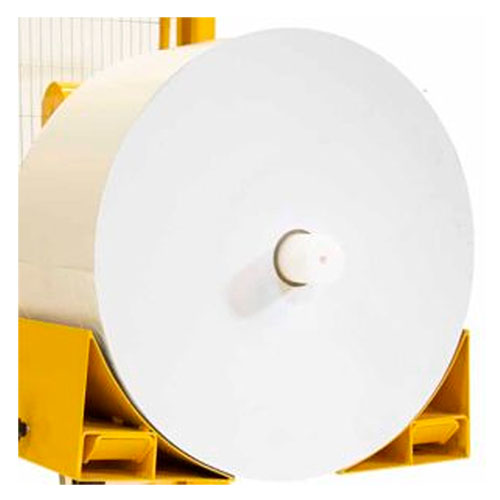

Foster On-A-Roll Lifter Scoop

Model Number: 61569

Features:

A single operator can scoop rolls off the floor or pallet without handling them
Hydraulic Foot Pump lets you adjust the height for smooth loading and unloading
Adjustable width forks accommodate rolls of diameters from 10cm to 115cm
Removable laser cone inserted into the roll core makes it simple and easy to line it up with press chuck
Circular roll holders are coated with rubberized epoxy to prevent scratching and damage to valuable media
Back stop on circular roll holders prevents rolls from falling off the rear
Handles rolls up to 23.6” wide.
Fixed front casters provide lower clearance in the front forks
Pair of heavy-duty rear swivel casters with easy step-on locking brake
Lift rolls as heavy as 1,000 lbs. (455 kg)
Rugged constructions ensures long lifter life
Single-person operation saves labor and time
2-year warranty on hydraulics and media tray. 5-year warranty on cross bars.

Specifications:

Roll Weight Capacity: 1,000 lbs (455kg)
Lift Height: 36″ H (91.5cm)
Max. Roll Width: 14” (35.6 cm) with adjustable forks up to 23.6” (60 cm)
Circular Roll Holders: 16″ (40.6 cm )
Max. Roll Diameter: 45.25″ (115cm)
Overall Media Lifter Dimensions (W x D x H): 48.4″W x 45″D x 57.8″H (123 x 114 x 147 cm)
Media Lifter Weight: 353 lbs (160kg)
Bottom Fork Clearance: 11.8” (30cm)
Front Wheel Caster: 3.15″ (8cm)
Rear Swivel Caster: 6″ (15cm)
