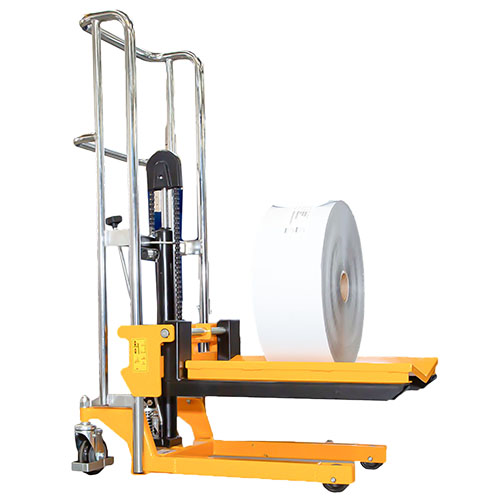

Foster On-A-Roll Lifter V-Tray Narrow Web

Model Number: 61566

Features:

The V-Tray Narrow Web On-A-Roll® Lifter for label printers and converters capacity manually operated hydraulic lifter that provides a quick and safe solution for positioning and loading narrow web rolls.
It Increases safety and reduces the risk of handling damage to valuable roll media with minimal operator training.
Use Narrow Web V-Tray On-A-Roll® Lifter with these brands of flexo and digital narrow web presses and others: Bobst, Edale, Gallus, Mark Andy, MPS, Nilpeter, Omet, RotaFlex
Material damage is reduced or eliminated when moving rolls
Reduced on-the-job injuries and enables workers to easily handle heavy rolls
Heavy material rolls are handled quickly and easily
Cantilevered roll tray extends 6” over front casters so it won’t interfere with any obstructions on the press or floor
V-Tray cradle design secures rolls with varying diameters

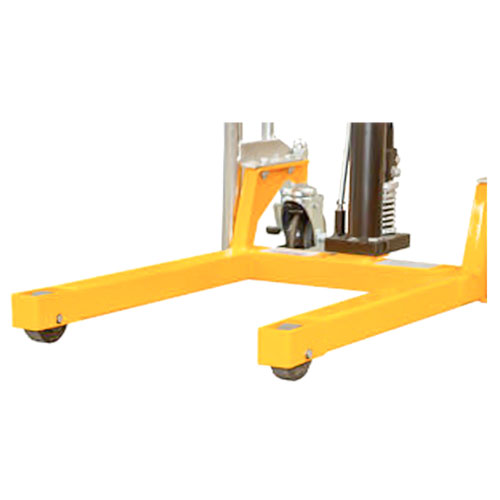

3” low profile front casters and frame fits underneath your press or converting line
Manually operated hydraulic foot pump raises rolls to the optimal height with minimal effort
Two heavy-duty rear swivel casters for maneuvering through tight spaces
Reduced on-the-job injuries and enables workers to easily handle heavy rolls
Rugged constructions ensures long lifter life
Single-person operation saves labor and time
2-year warranty on hydraulics and media tray. 5-year warranty on cross bars.

Specifications:

Roll Weight Capacity: 600 lbs (300 kg)
Lift Height: 47″ H (120 cm)
Max. Roll Width: 26″ (66 cm)
Max. Roll Diameter: 30″ (76 cm)
Overall Media Lifter Dimensions (W x D x H): 41″ x 32.25″ x 57″ (104 x 59.2 x 144.6 cm)
Media Lifter Weight: 205 lbs (93 kg)
Roll Tray Width: 40.6 cm
Roll Tray Length: 44 cm
Bottom Fork Clearance: 3.01″ (7.7 cm)
