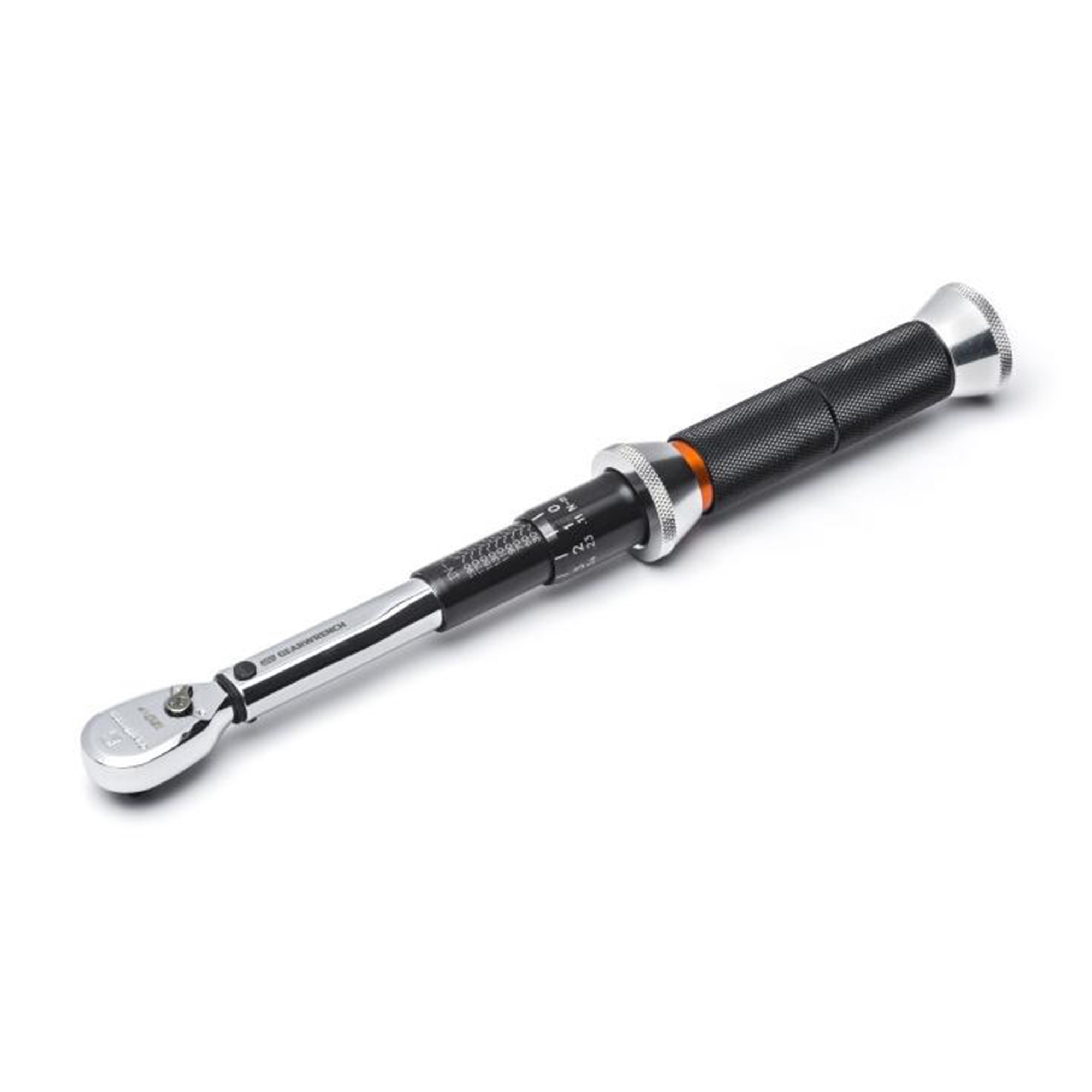

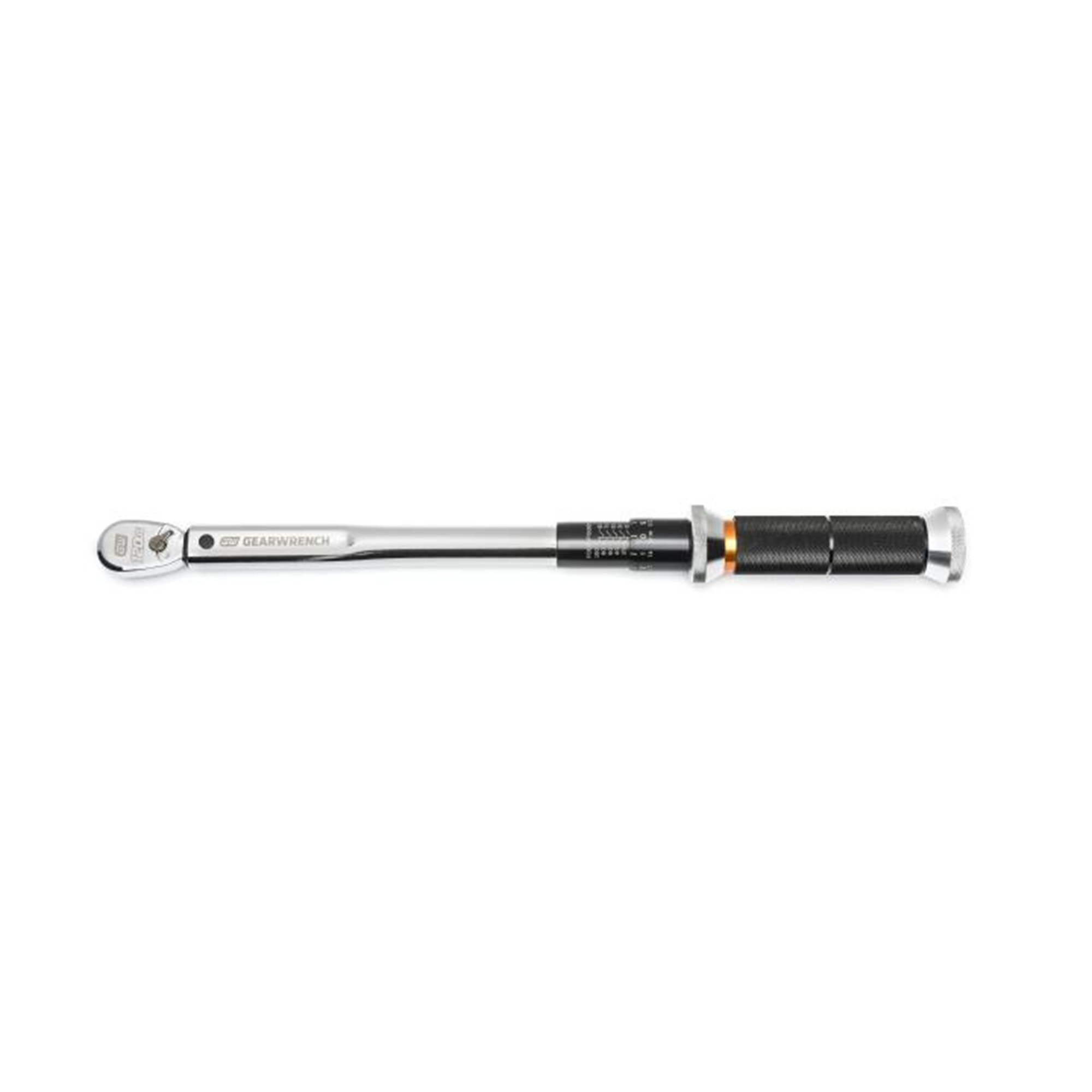

Gearwrench - 1/4" Drive 120XP Micrometer Torque Wrench 30-200 in/lbs. - 85171

The GEARWRENCH family of torque wrenches & torque products offer the latest innovations in torque measurement. Included in the line are a micrometer, tire shop, beam, and electronic torque wrenches, as well as, torque multipliers. The micrometer wrenches are available for fixed and flex heads. The fixed headline offers wrenches in 1/4" to 3/4" drives. The flex head wrenches are available in 3/8" and 1/2" drives. The tire shop wrenches feature a rugged tire tread rubber cover on the head intended to specifically be used for checking wheel lug nuts and are available in 3/8" and 1/2" drives. The electronic torque wrenches ensure a more precise fastener torque level and are available in 3/8" and 1/2" drives. The GEARWRENCH line of torque products allows the user to complete any job where accurate torque is required.

• 120XP™ head provides a 3° ratcheting arc to turn fasteners in narrow spaces
• Torque accuracy of +/- 3% CW in the upper 80% of wrench capability delivers high performance
• Enclosed ratchet head design resists dirt infiltration for continuous and efficient execution
• Low profile tube, teardrop head, and flush mounted on/off switch allow better access in tight confines
• Scale markings are highly visible and easy to read
• Knurled aluminum handle lets you grip comfortably, while clearly marked midpoint promotes additional accuracy
• 100% steel construction offers lasting strength and durability
• Meets or exceeds ASME B107.300 and exceeds ANSI specifications on load and cycle

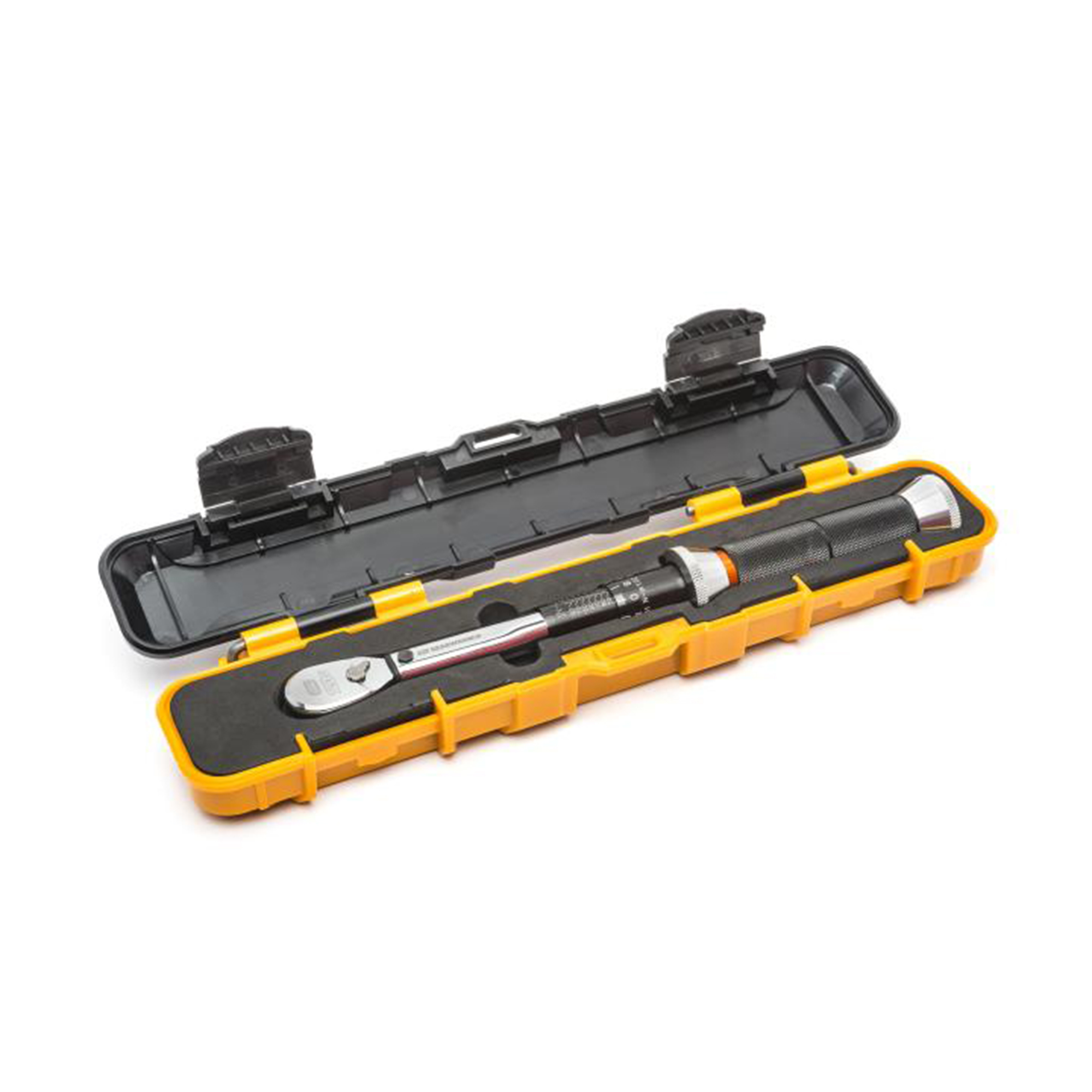

• Injection molded case with removable lid and EVA foam insert for secure storage and convenience
• 1 year limited warranty; calibration accuracy warrantied for 90 days

• Prop 65: WARNING: This product contains or produces a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
• ASME Specification: B107.300
• Minimum Torque (Primary Scale): 30 in/lb
• Tether Ready: No
• Maximum Torque (Primary Scale): 200 in/lb
• Minimum Torque (Alt Scale): 3.95 Nm
• Maximum Torque (Alt Scale): 23.16 Nm
• Torque Accuracy (20-100% of Full Range): +/-3% Clockwise
• Certified: No
• Head Thickness Less Tang: 0.25 in
• Primary Scale Increments: 1 in/lb
• Alt Scale Increments: 0.11 Nm
• Head Thickness: 0.39 in
• Type: Micrometer
• Repair Kit: 81099P
• Knurled: Yes
• Flexible: No
• Overall Length: 11.0 in
• Head Width: 1 in
• ANSI Specification: Exceeds on Load and Cycle
• Packaging: Sleeve
• Weight (Catalog): 1.365 lb
• Warranty: 90 Days Calibration/1 Year on Parts
• Drive Tang Size: 1/4 in
• Head Length: 1.5 in
• Tooth Count: 120
• Finish: Full Polish Chrome
• Overall Height: 1.25 in
• Included Storage: Injection Molded Case with Removable Lid and Foam Insert
• Overall Width: 1.25 in
• Material: Alloy Steel

• Gross Weight: 1.365 lbs
• Length: 13.39 in
• Width: 2.76 in
• Height: 2.17 in
