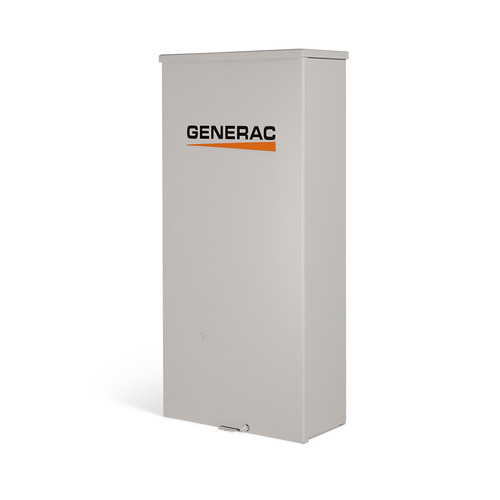

Generac 100A Non-Service Entrance Rated Automatic Transfer Switch, 16 Circuit - No SPD - 9947

This new series of Generac Automatic Transfer Switches is designed for use with single phase generators which utilize an Evolution™ or Power Zone™ 200 Controller. This transfer switch has an integrated load center to allow for essential circuit backup. It is especially useful where the main service is large, and only a portion of the building will be served by the generator, or when the main electrical breaker panel is located outdoors.

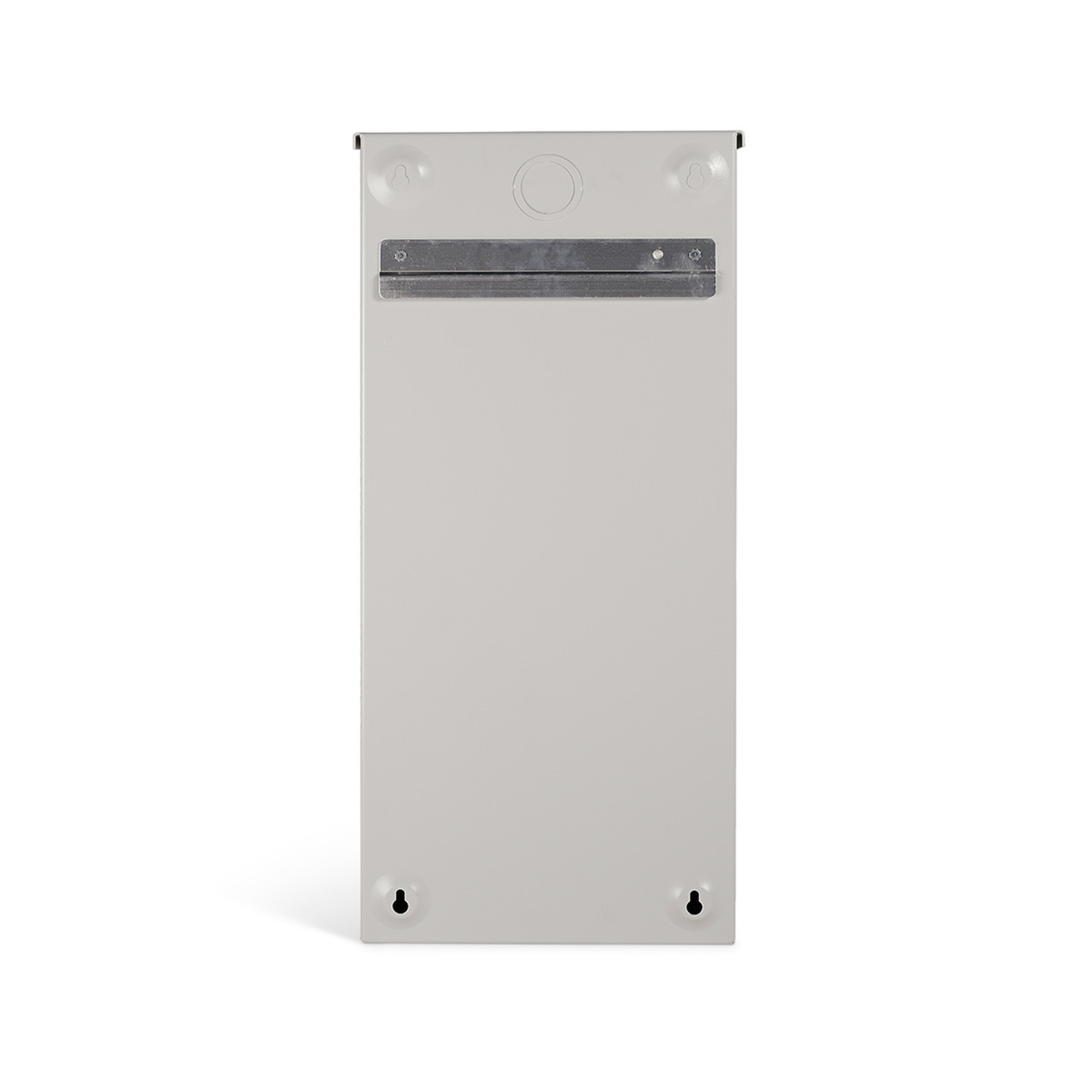

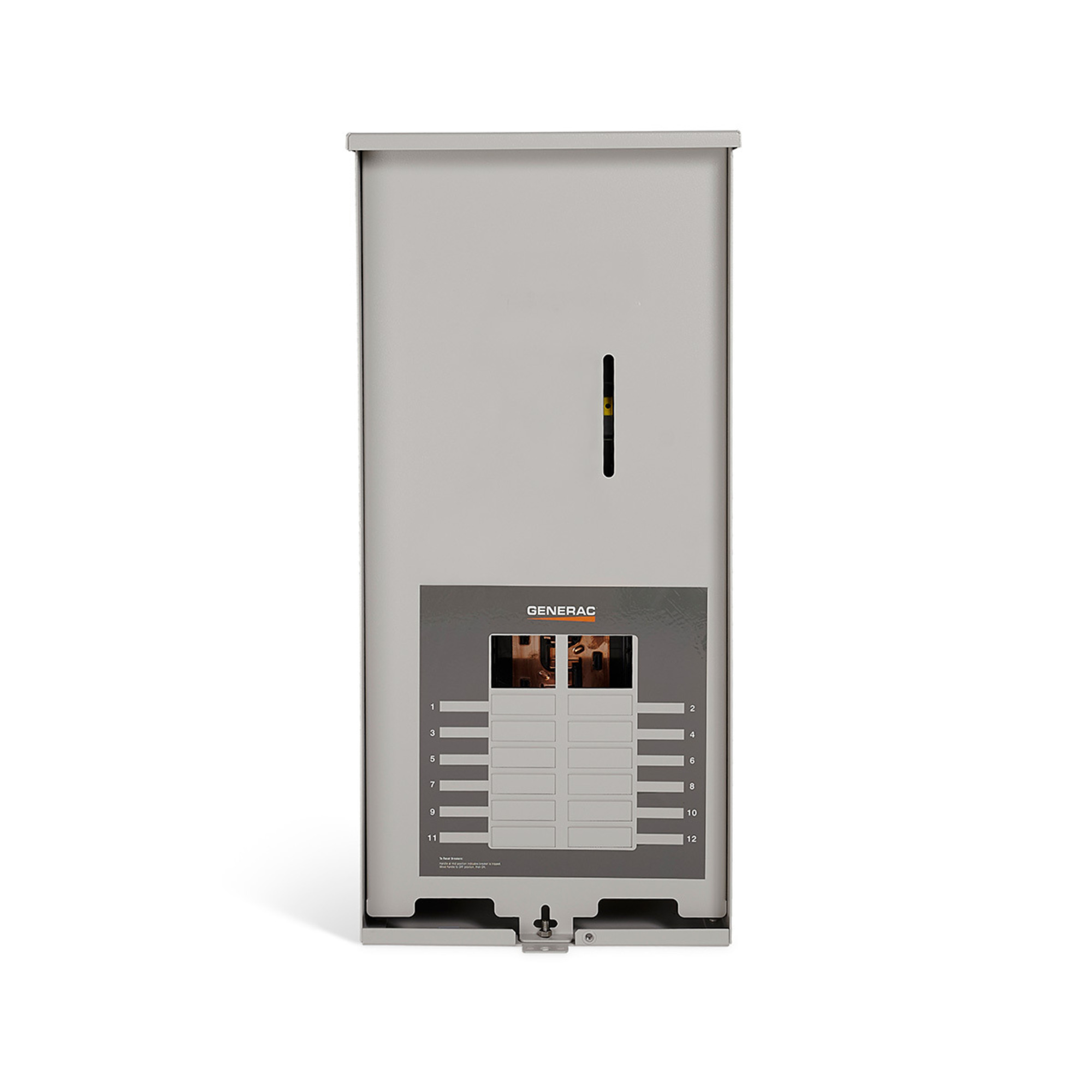

It comes standard with a 16 space breaker panel that can be populated with the appropriate sized breakers needed for any application. This transfer switch is cETLus listed. This switch is listed for use with Siemens®, Eaton®, or Square D® one inch breakers. The bottom four breaker spaces will accommodate tandem breakers, making the panel expandable to 24 circuits. This new series of switch includes a fast mount hanging system to simplify and expedite installations.

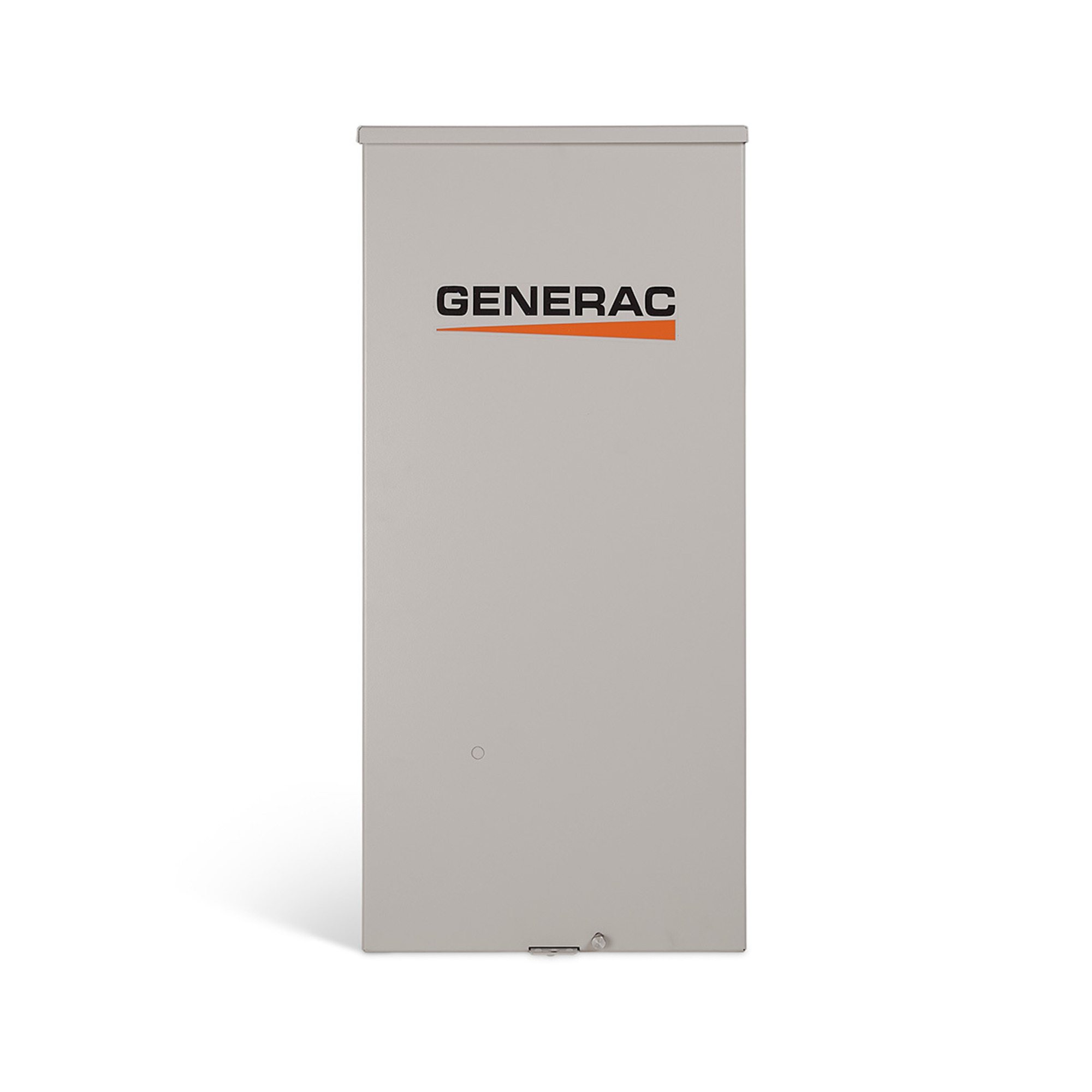

• This automatic transfer switch is housed in an all-weather, aluminum NEMA/UL Type 3R enclosure with electrostatically applied and baked powder paint. The Heavy Duty Generac Contactor is a cETLus component recognized device, designed for years of service. The controller on the generator handles all of the timing, sensing and exercise functions. Multi listed for use with 1" standard, tandem, GFCI and AFCI breakers from Siemens, Eaton, and Square D for the most flexible and cost-effective installation. All switches are covered by a 5 year limited warranty

• Enclosure Type: NEMA 3R
• Service Entrance Rated: No
• Amp Rating: 100
• Lug Range: 2/0 - #14
• ETL/UL Rating: cETLus
• Withstand Rating: 10,000A
• Load Transition Type: Open Transition
• Circuits: 16 Spaces, 24 Circuits
• Voltage: 120/240
• Phase: 1
• Height (in/mm)
  • H1: 26.8 / 679.4
  • H2: 30.0 / 672.0
• Width (in/mm)
  • W1: 10.5 / 266.7
  • W2: 13.5 / 342.9
• Depth (in/mm): 6.6 / 167.6
• Depth with Fast Mount: (in/mm) 6.9 / 175.2
• Weight: (lbs/kgs) 39 / 17.7
