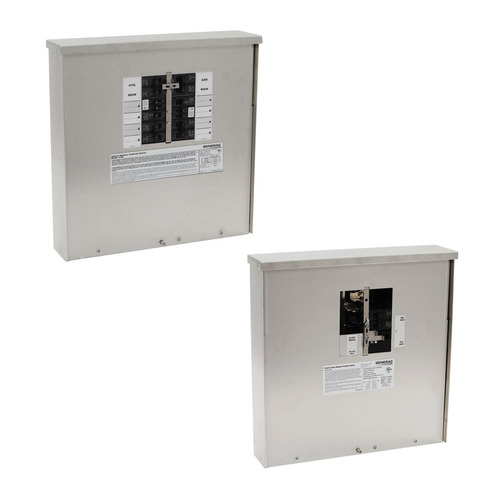

Generac 30/50A 7.5/12.5kW Manual Transfer Switch Outdoor Power Center - (2 Options Available)

• 6382: 200A Service Entrance Rated NEMA 3R - 30A Inlet Manual Transfer Switch
• 6335: 200A Service Entrance Rated NEMA 3R -50A Connector Manual Transfer Switch

The Generac 30/50A 7.5/12.5kW Manual Transfer Switch Outdoor Power Center is engineered to provide a safe and reliable way to transfer power from a backup generator to your home's entire electrical panel during a power outage. By seamlessly switching the power source from the grid to the generator, these switches ensure that your home remains powered and protected against disruptions. This manual transfer switch is essential for maintaining electrical service during emergencies, offering peace of mind and continued functionality of critical household systems.

• NEMA 3R enclosure (outdoor rated)
• Inlet on bottom of enclosure for cord connection
• Provides additional spaces for branch circuits for outdoor applications such as air conditioner compressors, sewage lift pumps, boat docks, outbuildings, garages, pump houses, and barns.

• Circuits: 200 Amp Service Entrance Rated
• Utility Main: 200 Amps
• Voltage: 125 / 250, 1Ø
• Rated AC Frequency: 60 Hz
• Maximum Number of Spaces for Branch Circuits: 12
• Enclosure: Outdoor (NEMA 3R)
• Warranty: Two Year Limited

• Model 6337 - 30A Power Inlet Box
  • Rain-tight resin (bottom connection), NEMA L14-30
• Model 6338 - 50A Power Inlet Box
  • Rain-tight resin (bottom connection), NEMA CS6365
• Model 6340 - 30A Power Inlet Box
  • Rain-tight aluminum (bottom connection), NEMA L14-30
• Model 6341 - 30A Power Inlet Box
  • Rain-tight resin with flip lid (bottom connection), NEMA CS6365
• Model 6343 - 30A Power Inlet Box
  • Rain-tight aluminum (bottom connection), NEMA L14-30
• Model 6344 - 50A Power Inlet Box
  • Rain-tight aluminum (bottom connection), NEMA CS6365
• Model 6346 - 30A Power Inlet Box
  • Aluminum with flip lid (front connection), NEMA L14-30
• Model 6347 - 50A Power Inlet Box
  • Aluminum with flip lid (front connection), NEMA CS6365
• Model 6327 - 10 ft (3 m) 30A Generator Cord, Model 6328 - 25 ft (3 m) 30A Generator Cord, and Model 6329 -50 ft (15.2 m) 30A Generator Cord
  • NEMA L14-30 ends
• Model 6330 - 10 ft (3 m) 50A Generator Cord, Model 6389 - 25 ft (7.6 m) 50A Generator Cord, and Model 6390 -50 ft (15.2 m) 50A Generator Cord
  • NEMA 14-50 male and locking CS6364 female

• Product L x W x H (in / mm): 18 x 18 x 4 (457 x 457 x 102)
• Product Weight (lb / kg): 21 (9.5)

Click Here for Spec Sheet

*Spec sheet might include optional accessories not included with this purchase
