GeoMax Zoom95, A10, 1" Robotic Total Station Package - 6017108

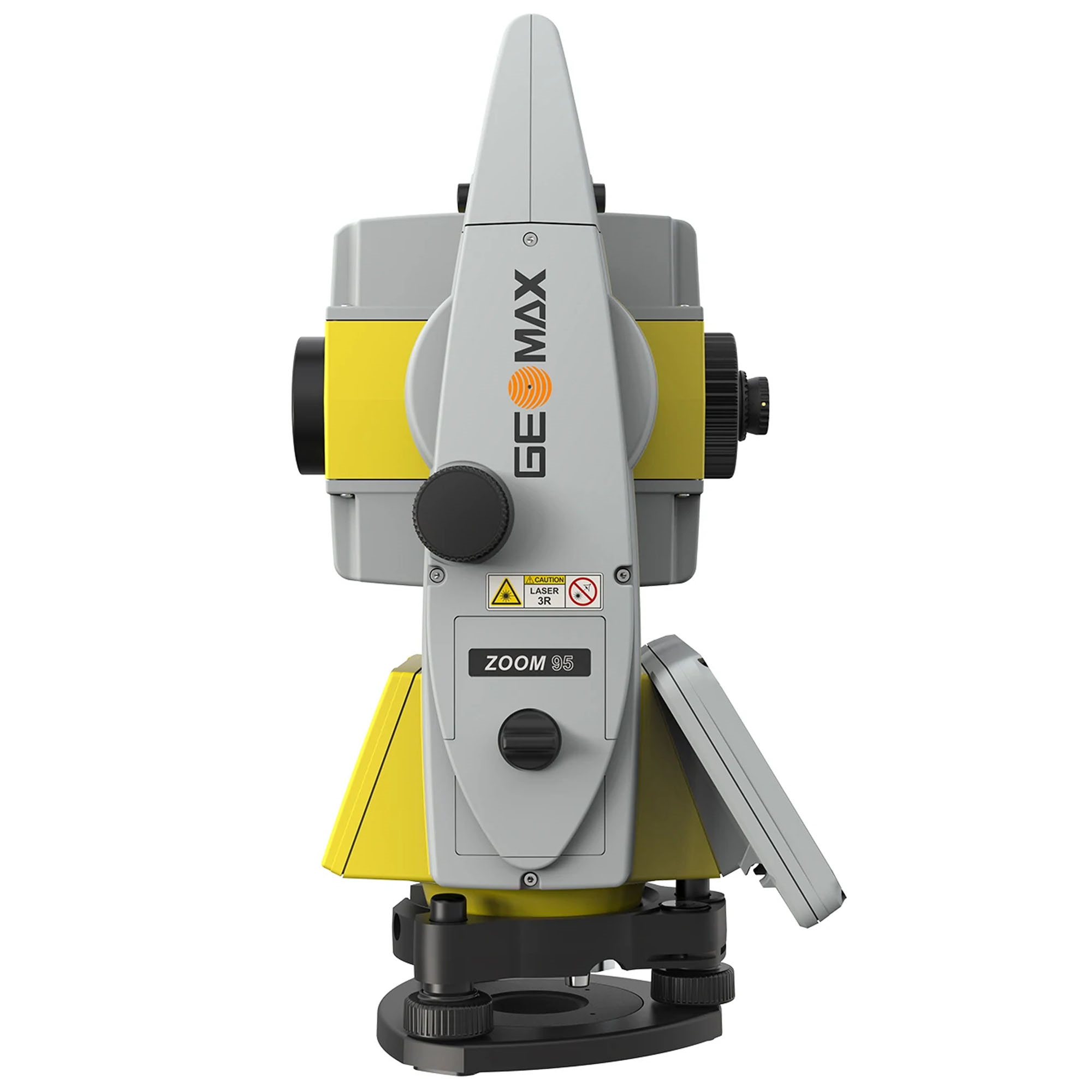

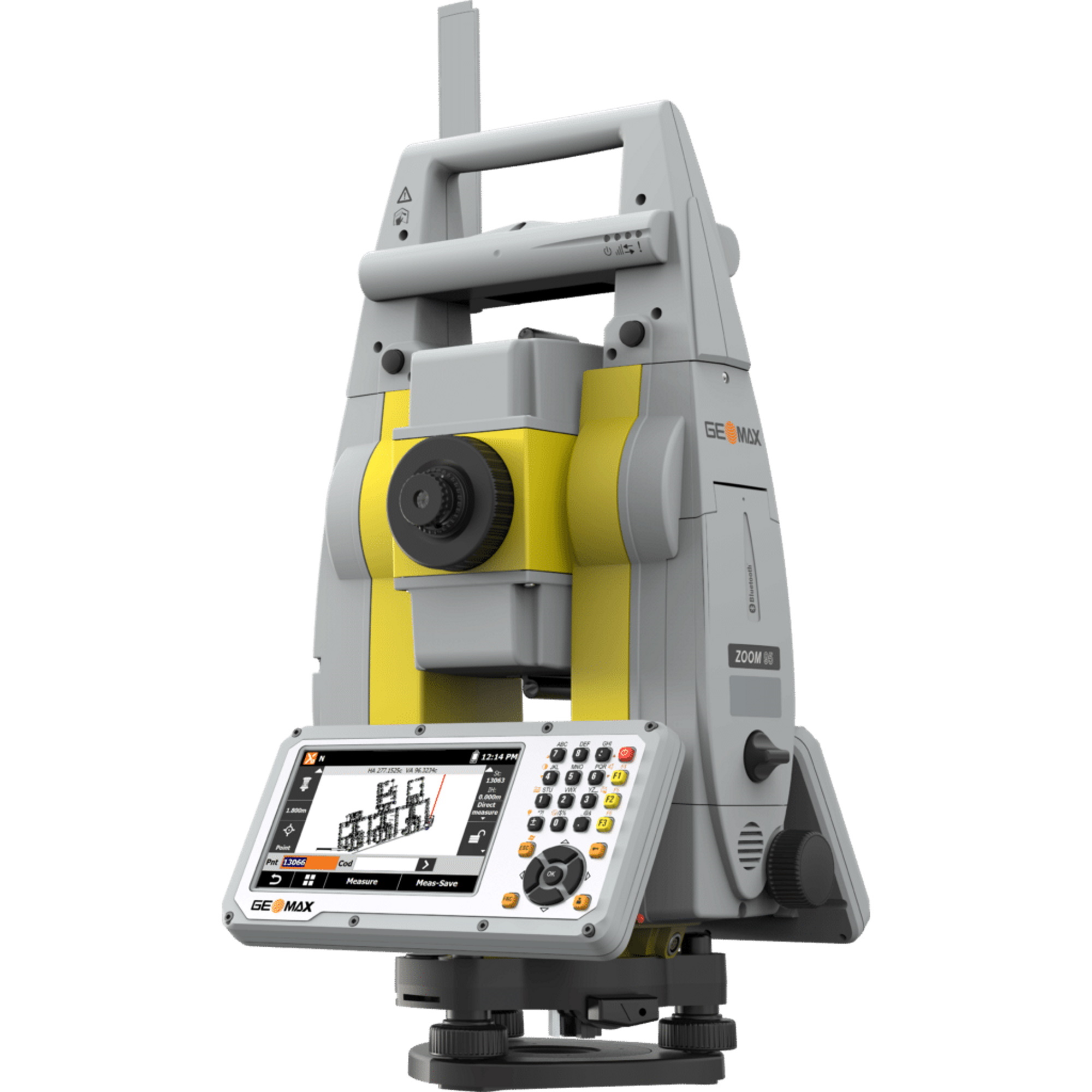

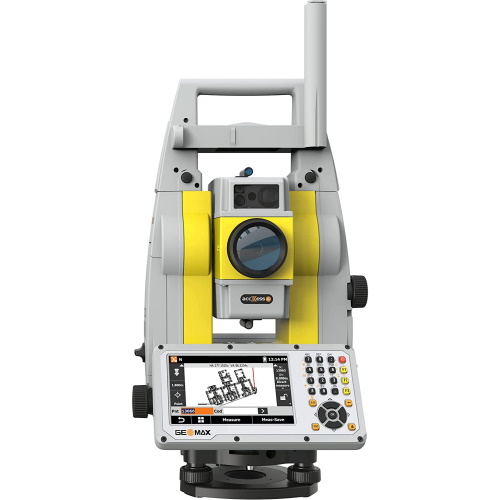

GeoMax Zoom95, A10, 1" Robotic Total Station Package

Model Number: 6017108

Features:

• This solution is not only economical, with no maintenance cost, but your data is digitalised, secure and easy to access.
• Zoom95 is the perfect one-person total station.
• Features advanced STReAM360 technology to quickly locate, track and stay locked to the prism, this one-person total station substantially minimizes the time of any survey task and maximizes your performance and accuracy.
• Modern data handling.
• Large 5" VGA touch screen.
• Powerful processor - easy & fast handling of big files.
• Automatic data backup.
• Scout: Quick search for passive prisms within a large area.
• Maximum flexibility.
• Field software: X-PAD Ultimate Survey or Build on Android, X-PAD Survey or Construction on Windows Mobile.
• Filed controllers: GeoMax' or your own device.
• Smart investment.
• No maintenance cost for field software.
• Latest Hexagon technology with Stress-free equipment PIN/PUK - anti-theft feature.
• Data can be accessed, stored, and shared via the X-PAD 365 File Manager, data is always safe, thanks to automatic backups.
• Collaborative Survey and Stakeout feature allows several users to work on the same surveying or stakeout project together, sharing real-time surveyed points and drawings and immediately seeing their progress.

Specifications:

Angle Measurements:

• Accuracy: 1" (0.3 mgon)
• Display resolution: 0.1" (0.1 mgon)
• Method: Absolute, continuous, diametrical
• Compensation: Quadruple axis

Telescope:

• Type: accXXess
• Magnification: 30x
• NavLigth™ Range: 5 m - 150 m
• NavLigth™ Accuracy: 5 cm at 100m

Distance Measurements to Std. Prims Accuracy/Time (Typical):

• Single (fast): 2 mm + 1.5 ppm / 0.8s
• Standard: 1 mm + 1.5 ppm / 2.4s
• Continuous: 3 mm + 1.5 ppm / < 0.15s
• Range: up to 3500m

Distance Measurements - Reflectorless:

• Range: accXess5 / accXXess10, 500 m / 1000 m
• Accuracy: 2 mm + 2 ppm*
• Time: Typ. 2-6 sec
• Precise capture: 8x20 mm at 50 m

Interface:

• Keyboard: Full alphanumeric; 25 keys; illuminated (2nd optional)
• Display: 5" WVGA 800x480 colour and touch with LED backlight
• Data recording: 2 GB internal memory; removable SD card and USB stick
• Ports: Serial; USB; internal Bluetooth®; long-range Bluetooth handle, External power and WLAN
• Operating system: Microsoft® Windows® EC 7.0

Motorisation:

• Technology: Hybrid Drives
• GeoTRAil - GNSS based prism search: 100 g/sec (Speed)
• Scout - Opto-electronic prism search: 300 m at round prism (Range)
• TRack - Automatic prism logging: 800 m at round prism (Range), 90 km/h at 100m (max Speed)
• AiM - Automatic prism fine aiming: 1,000 m at round prism (Range), 1" (Hz/V accuracy ), Image processing (Technique)

NAVLIGHT ™ - Alignment Aid:

• Range: 5 m to 150 m
• Accuracy: 5 cm at 100 m

Physical Specifications:

• Weight: 5.0 - 5.3 kg (w/o battery and tribrach)
• Operating- / storage temperature: -20° C to 50° C / -40° C to 70° C
• Protection class: IP55 dust and waterproof rating
• Humidity: 95%, non-condensing

Power Supply:

• Internal battery: Removable Li-Ion 4.4 Ah / 7.4 V
• Operating time: Up to 8 h**

Plummet:

• Type: Laser point, adjustable brightness
• Accuracy: 1.5 mm at 1.5 m instrument height

Software:

• Operating System: Open Windows CE
• Open for 3rd part SW: Yes
• Basic Package: Fully flexible*****
• Advance Package: Fully flexible*****

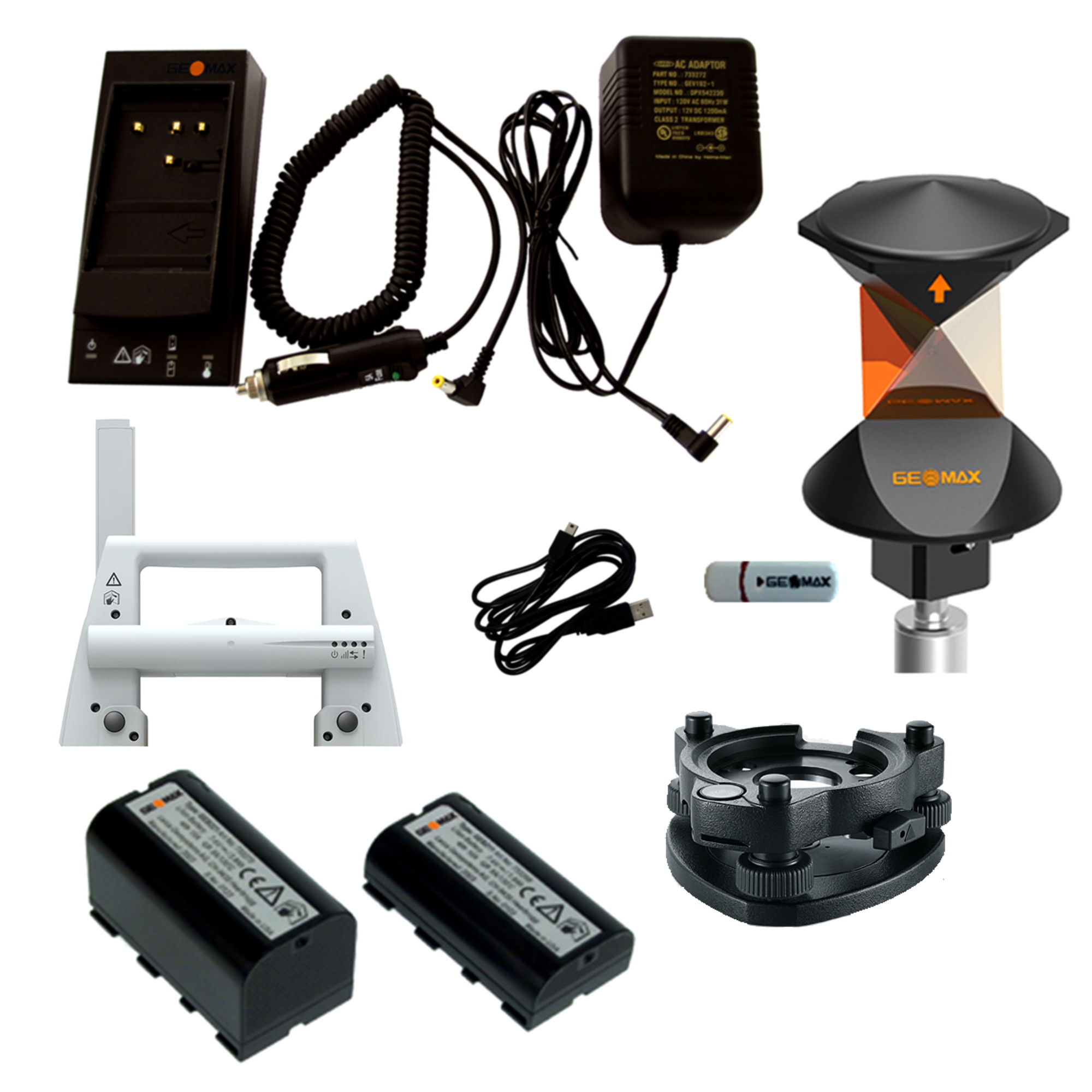

GeoMax Zoom95, A10, 1" Robotic Total Station Package Includes:

• 918657 Zoom95 Fully Robotic WinCE Total Station with AiM360, TRack360 and Scout360, 1", accXXess10 EDM, NavLight, alphanumeric keyboard with VGA colour & touch display, Long Range Bluetooth Handle interface, internal Bluetooth, USB port, SD Card slot, Quick Guide and shipping case.
• 855818 ZMS108 USB Memory Stick 8GB
• 776093 ZBA400, Li-Ion Battery 4.4Ah
• 766872 ZCH201 Charger for ZBA201 & ZBA400 Li-Ion batteries
• 848428 ZTR201 Advanced Tribrach without optical plummet, black
• 834473 ZRT82, Long-Range Bluetooth Handle for GeoMax Zoom70/75/90/95 total station
• 832680 ZRP1, 360° prism with ruggedized rubber caps
• 794088 ZDC301 USB cable Mini-USB to USB Host (Zipp10/Zipp20/Zoom40/Zoom90/Zoom95 to a PC/Tablet)

Note:
* > 500 m: 4 mm + 2 ppm;
** Battery time may be shorter depending on conditions;
**** Single measurement every 30 seconds, at 25°C. Battery time maybe shorter, depending on conditions;
***** X-PAD, FieldGenius, Carlson SurvCE.
