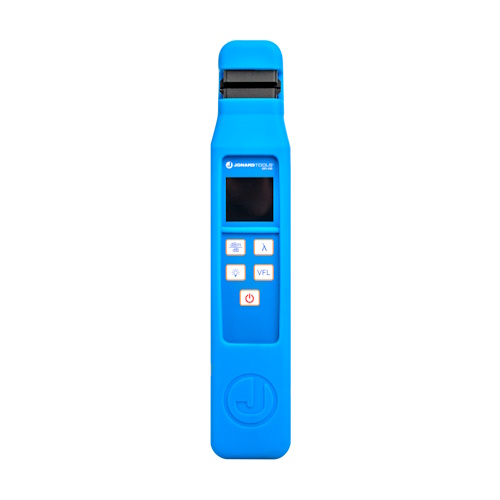

Jonard Tools - Advanced Optical Fiber Identifier w/ Power Meter & VFL

Model Number: OFI-100

Features:

Designed to quickly identify the direction of light being transmitted in the fiber and display the relative core power without damaging the fiber. This fiber identifier is the perfect tool for identifying fiber in network systems without disrupting the network and includes a built-in VFL and Power Meter for convenience. This fiber identifier also features the following:
Efficiently identifies the traffic direction and frequency (270Hz, 1KHz, 2KHz) with an audible warning
LCD clearly displays the relative core power, signal direction, and battery life
Reversible adapter has one side for 2 mm and 3 mm fiber optic cables, and the opposite side is used for 250 µm and 900µm fiber
Built-in VFL allows you to find faults in fiber cables quickly and easily
Built-in Power Meter can be used to measure power using 850, 1300, 1310, 1490, 1550, and 1625 nm wavelengths

Specifications:

VFL MODULE: Class IIIR Laser Diode, 1mw-5mw
IDENTIFIED WAVELENGTH RANGE: 800-1700 nm
IDENTIFIED SIGNAL TYPE: CW, 270Hz±5%, 1kHz±5%, 2kHz±5%
DETECTOR TYPE: Ø1mm InGaAs
ADAPTER TYPE: Ø0.25 (Applicable for Bare Fiber), Ø0.9, Ø2.0 , and Ø3.0
SIGNAL DIRECTION: Color Display
SIGNAL DIRECTION TEST RANGE:
- -46~+10 dBm (1310 nm, CW/0.9 mm bare fiber)
- -50~+10 dBm (1550 nm, CW/0.9 mm bare fiber)
SIGNAL FREQUENCY DISPLAY: 270 Hz, 1 kHz, 2 kHz
INSERTION LOSS: 1.0 dB (Ø0.25 & Ø0.9), 1.5 dB (Ø2.0 & Ø3.0)
BATTERY TYPE: (2) AA
DIMENSIONS: 9.25 in x 1.69 in x 1.97 in (23.5 cm x 4.29 cm x 5 cm)
WEIGHT: 0.59 lb (267.86 g)
