Jonard Tools - Fiber Optic Power Meter (-70 to +6 dBm) with FC/SC/LC Adapters - FPM-70

Product Code: ET16451
Jonard Tools - Fiber Optic Power Meter (-70 to +6 dBm) with FC/SC/LC Adapters - FPM-70
Condition: New
  • Usually ships off dock within:2 to 4 Business Days
Your Price $264.95

Accepted Payment Types

Free Shipping

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description
More Information
Reviews
Help

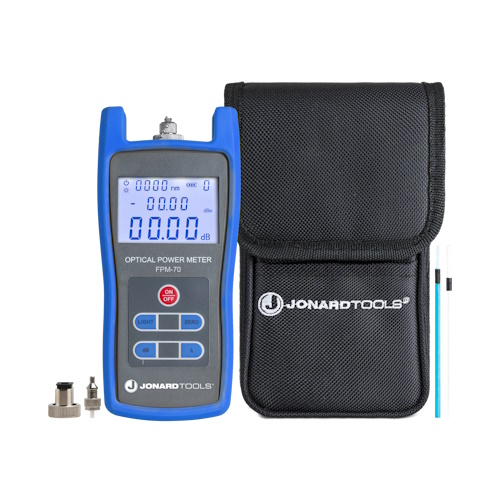

Jonard Tools - Fiber Optic Power Meter (-70 to +6 dBm) with FC/SC/LC Adapters

Model Number: FPM-70

Features:
  • Primarily used in long haul applications, this fiber optic power meter is perfect for measuring both the absolute optical power and relative power loss in fiber optic cables. This power meter features the following:
  • Power measurement range of -70 dBm to +6 dBm, perfect for long distance or long haul telecom, coax, and fiber optic cables
  • Measures a wide variety of wavelengths from 800-1650 nm, with a mere 0.01 dB resolution
  • Measures 6 preset calibrated wavelengths with high precision to determine absolute or relative power
  • Special function of the unit allows the device to be manually calibrated as needed
  • Includes FC and SC adapters to connect to PC/UPC/APC FC and SC connectors
Specifications:
  • CONNECTOR TYPES: FC, SC (APC/PC/UPC) & LC (PC/UPC)
  • MEASUREMENT RANGE: -70 dBm to +6 dBm
  • DATA STORAGE: No
  • CALIBRATED WAVELENGTHS (nm): 850, 980, 1300, 1310, 1490, 1550, 1625, 1650
  • DETECTOR TYPE: InGaAs
  • SINGLE MODE RANGE: 980, 1310, 1490, 1550, 1625, 1650 nm, ≤ ± 0.25 dB
  • MULTI MODE RANGE: 850, 1300 nm, ≤ ± 0.8 dB
  • RESOLUTION: 0.01 dB
  • OPERATING TIME: ≥130 hours
  • BATTERY TYPE: (3) AA batteries
  • DIMENSIONS: 7" x 3.25" x 1.5" (17.78 cm x 8.26 cm x 2.54 cm)
  • WEIGHT: 1.50 lb (680 g)
  • MPN: FPM-70
  • UPC: 810053350478
