Klein Tools - 400A AC/DC TRMS Clamp Meter With Temperature And DC Micro Amp (CL390)

Product Code: ET13731

Condition: New

Your Price	$99.97
	(You Save 17%)

List Price

$119.98

Qty

Accepted Payment Types

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description

More Information

Reviews

Help

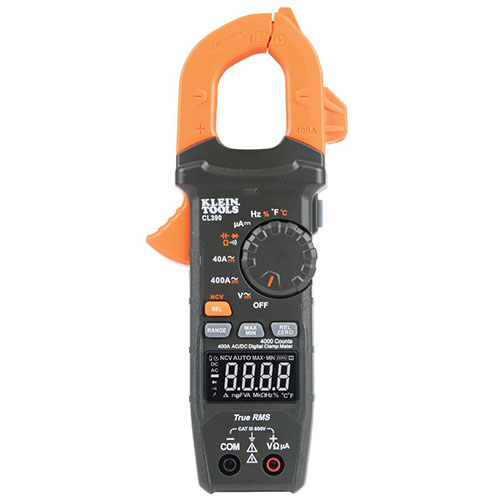

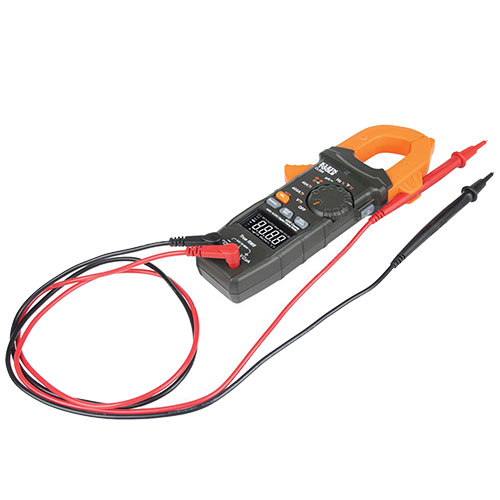

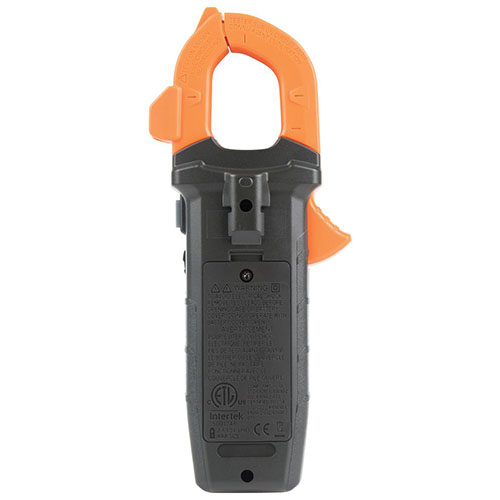

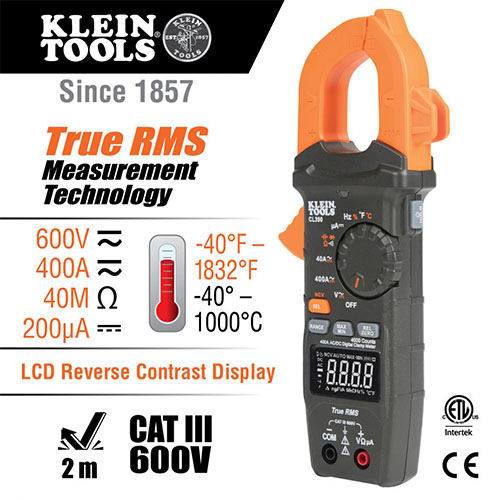

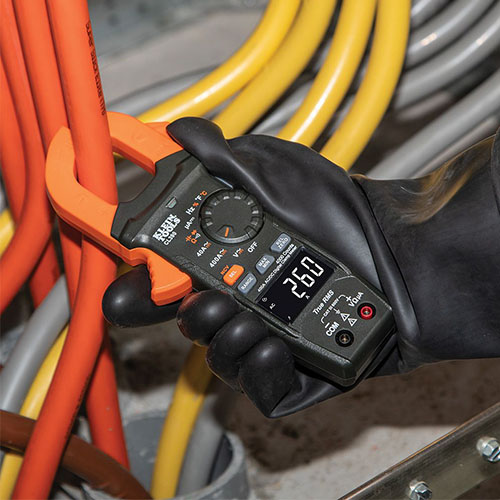

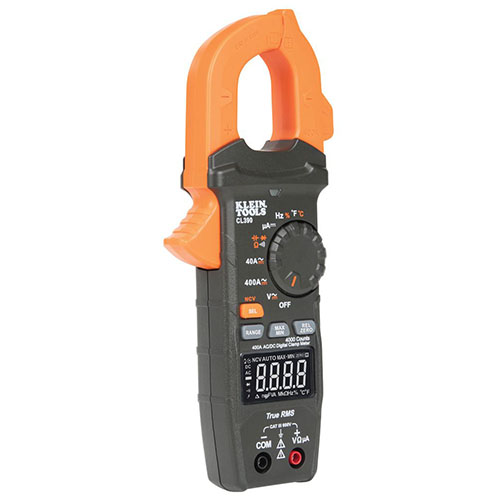

Klein Tools 400A AC/DC TRMS Clamp Meter With Temperature And DC Micro Amp

Model Number: CL390

Features:

Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation
Non-contact voltage tester integrated into the clamp jaw
High-visibility reverse contrast LCD display for improved view ability in all ambient lighting conditions
Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
Measures AC/DC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, and continuity via test-leads, and temperature with thermocouple
Measures temperature with a K-Type thermocouple probe
Max/Min, Rel/Zero and Data Hold capability
Auto-power off after 10 minutes to conserve battery life
Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions, and 3 x AAA batteries
Low battery indicator and easily accessible battery compartment
Built to withstand a 6.6-Foot (2 m) drop
CAT III 600V, Class 2, Double insulation safety rating
Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations

Specifications:

Type: AC/DC Current TRMS Clamp
Application: Measures both AC/DC current and NCVT via the clamp and AC/DC voltage, DC microamp current, resistance, continuity, frequency, duty-cycle, capacitance and tests diodes via the test leads, and temperature with thermocouple
Special Features: Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; AC/DC Current Measurement; High Visibility Reverse Contrast LCD; NCVT
Material: ABS/Electronics
Batteries: 3 x AAA
Auto-Power Off: Yes
Jaw Size: 1.6'' (4.1 cm)
Drop Protection: 6.6' (2 m)
Display: 4000 Count Reverse Contrast LCD
Functions: TRMS, AC/DC Current, NCVT, AC/DC Voltage, Resistance, DC microamp, Frequency, Capacitance,
Continuity, Duty Cycle, Diode Test, and Temperature
Voltage: 600 V AC/DC
Frequency: 10 Hz to 60 kHz for 8 V to 220 V AC RMS
Current: 400 A AC/DC
Capacitance: 4000 µF
Ohms (Resistance): 40 MΩ
AC Voltage: 600 V
DC Voltage: 600 V
DC Polarity Indicator: Yes
DC Micro-Amp: 200 µA
Temperature Range: -40° - 1832°F (-40° - 1000°C)
Standard: CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified
Overall Length: 8.45'' (21.5 cm)
Overall Height: 1.5'' (3.8 cm)
Overall Width: 3.5'' (8.9 cm)
Weight: 11 oz (314 g)
