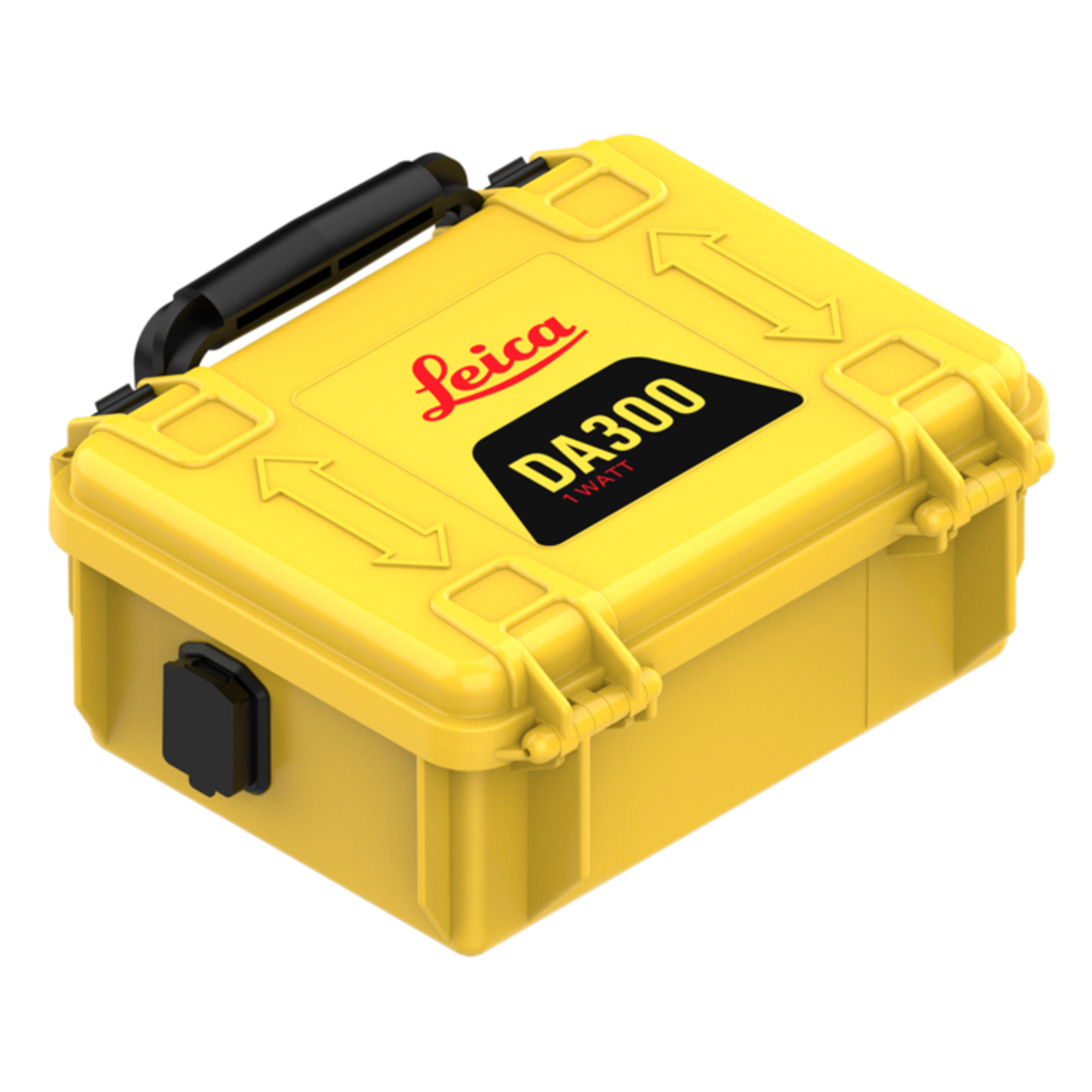

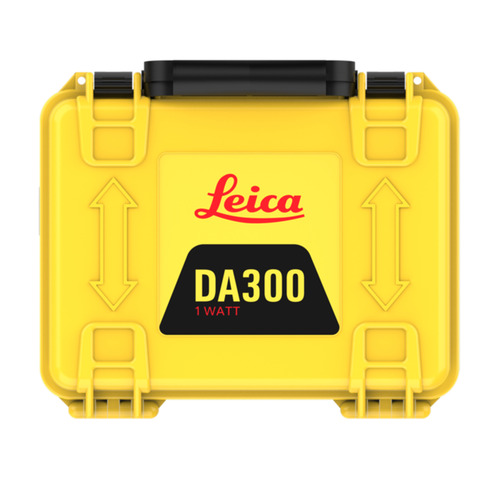

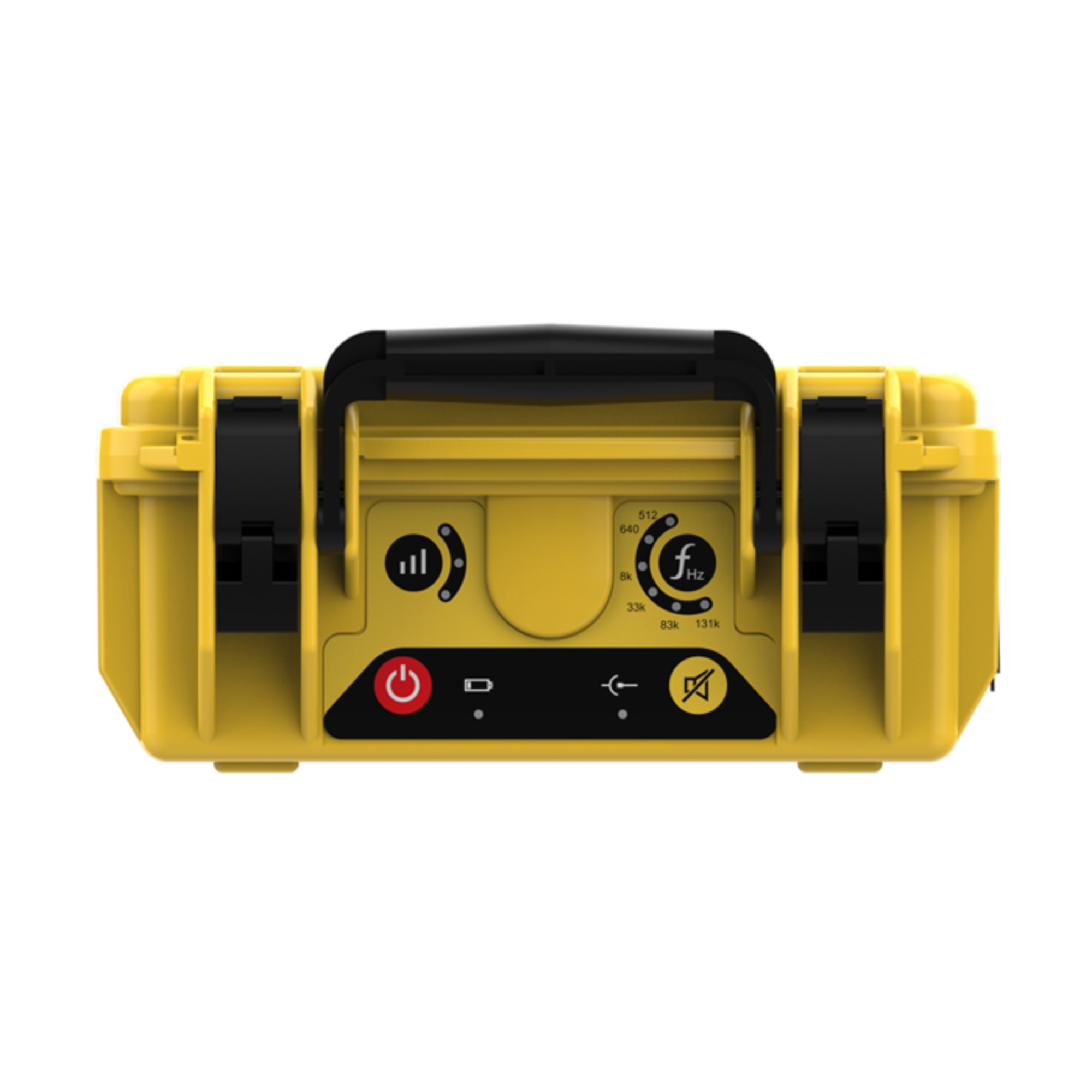

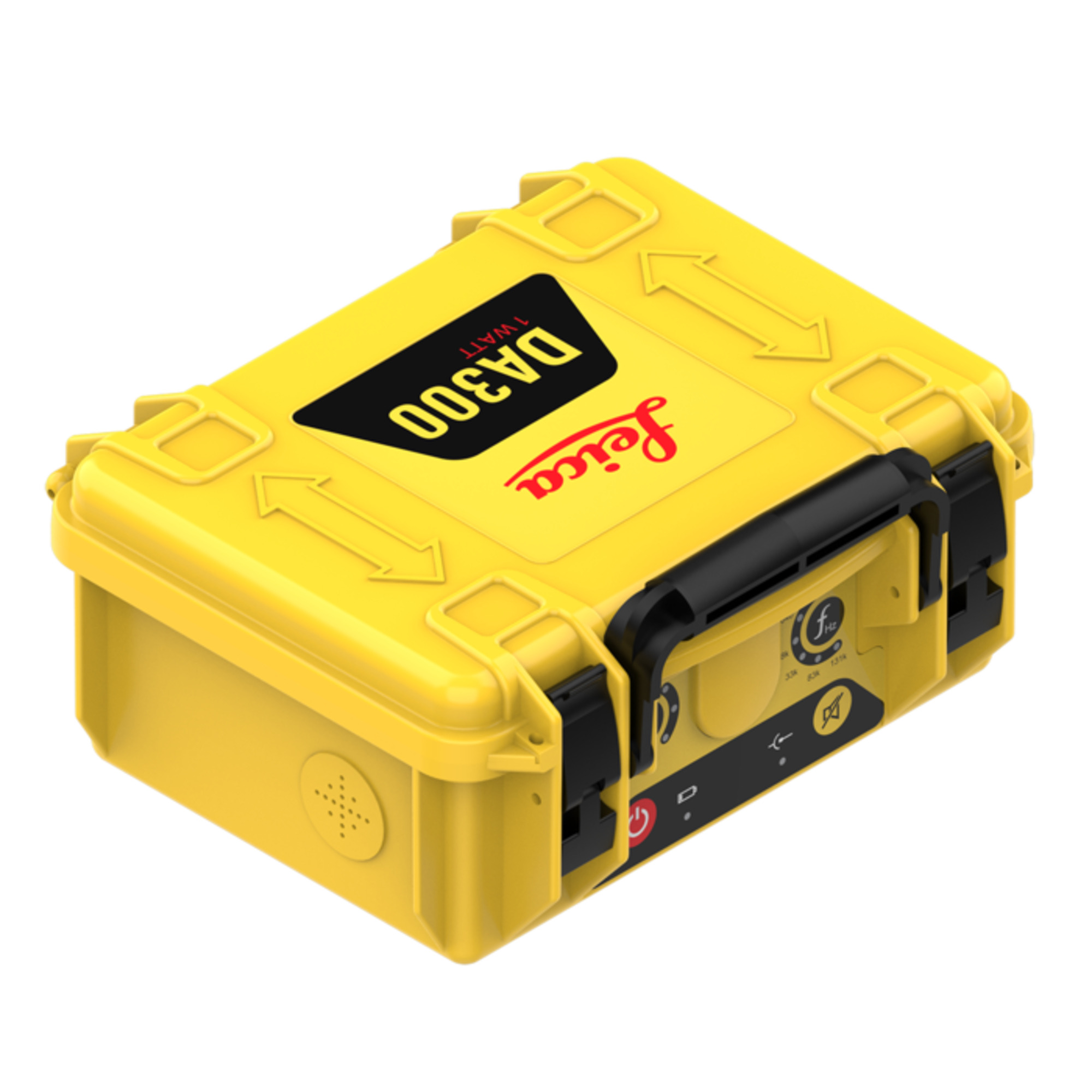

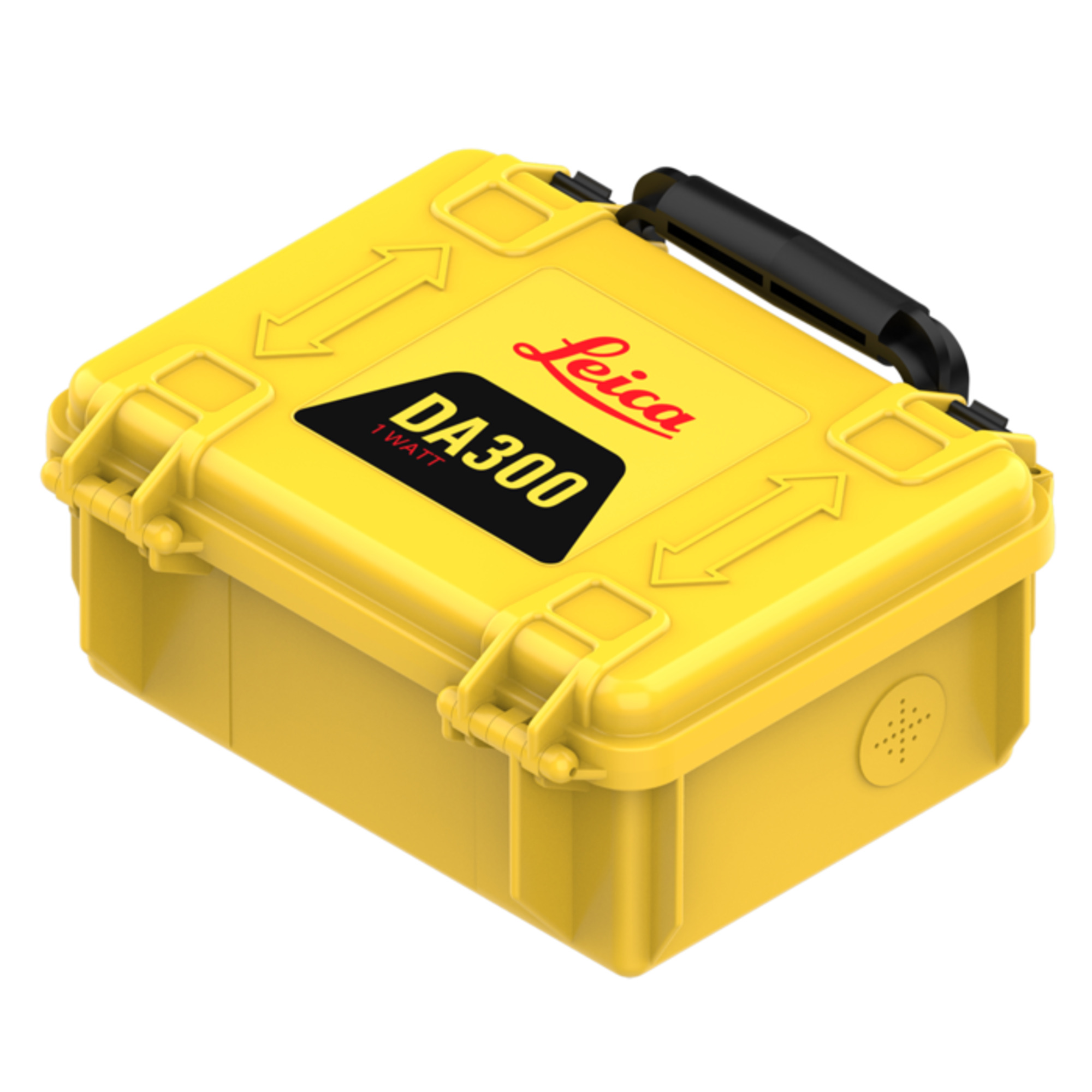

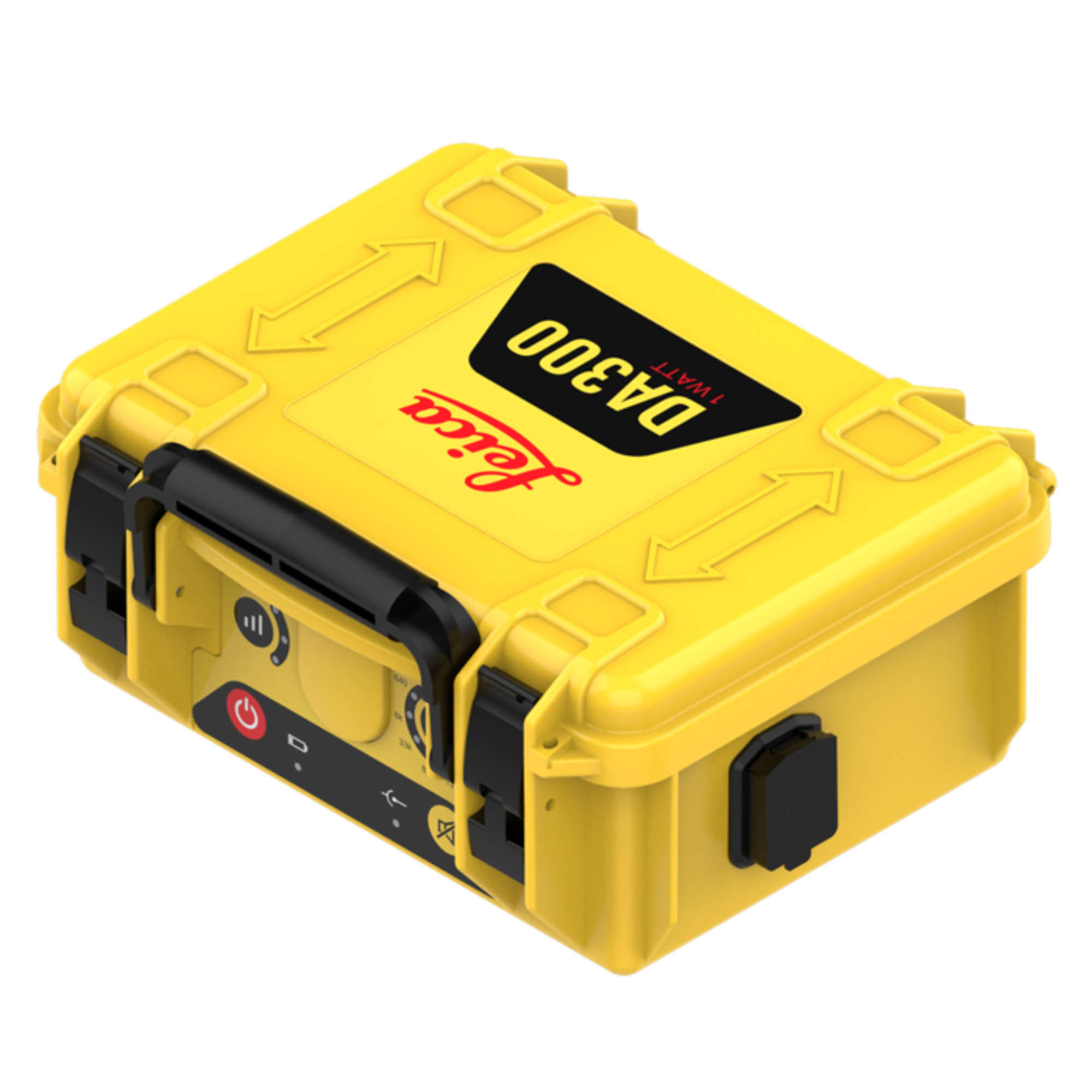

Leica DA300, 1 Watt Signal Transmitter - 1003819

The Leica DA300 simple and intuitive signal transmitter extends the applications and scope of the DD300 CONNECT cable locator, helping to improve the detection and tracing of buried utilities, which may carry only a poor or no detectable signal. ​ The Leica DA300 transmitter can be operated in both passive and active modes with the supplied accessories, such as the transmitter signal clamp, Property Plug connector, and crocodile clamps.

• Induction Mode Frequencies: 32.768 (33) kHz / 8.192 (8) kHz
• Power Output: Up to 1 Watt max.
• Direct Connection Mode Frequencies: 131.072 (131) kHz / 83.078 (83) kHz / 32.768 (33) kHz / 8.192 (8) kHz / 512 Hz / 640 Hz
• Environmental Standard: IP67
• Operating Temperature: -20 °C to +50 °C / -4 °F to +122°F
• Storage temperature: -40°C to +70°C, / -40°F to +158°F
• Battery: 4 x LR20 Alkaline Battery - Li-Ion as optional
• Battery operating time ** 15 h
• Dimensions (HxWxD): 250 x 206 x 113 mm / 9.84 x 8.11 x / 4.45 inches
• Weight with batteries: 2.46Kg / 5.42 lbs

• Leica DA300, 1 Watt Signal Transmitter
• 4x LR20 Alkaline batteries
• Three Year warranty
• *Li-Ion pack available (optional)
