Leica DSX Utility Detection Radar System (GPR) with Perpeutal Liscense, Surveyor Kit

Model Number - 6015141

*Optional accessories shown in video are not included in the purchase of this model*

The DSX Surveyor package includes the DXplore Survey software add-on, which enables the operator to combine GPR data with GNSS or TPS coordinates. An integrated GPS antenna is required and is not included. Click Here to view the compatible GPS antenna.

What's in the box

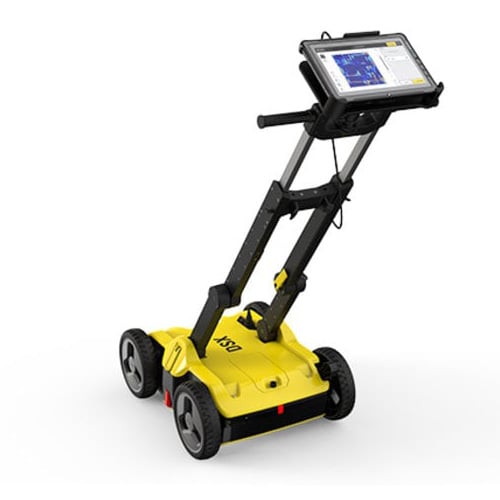

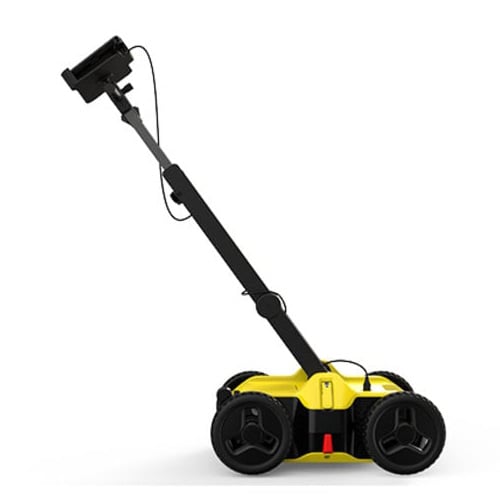

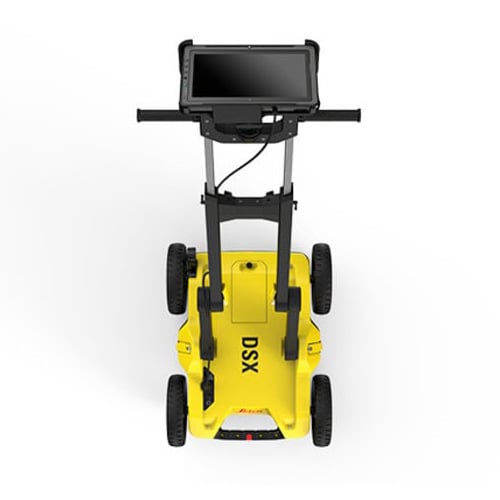

DSX Utility Detection System
CT1000 Tablet Controller
2 Year DSX Basic Customer Care Program (CCP)
2 Year DSX Survey Customer Care Program (CCP)
DXplore Build Edition and DXplore Survey with perpetual license

Reliable Detection Results

Detect underground utilities in high resolution to mark out reliable avoidance zones.
Verify specific utility locations obtained from existing maps, DigSafe, or from a first pass using a cable locator.
Import point-of-interest aspects as well as utility records to help you make better decisions.

Ease of Use

Ensure smooth and accurate underground utility detection without expert knowledge.
Complete utility detection and mapping in just a few steps through intuitive user interface.
Scan anywhere and at any time, even in narrow areas and under severe conditions.

Instant 2D/3D Utility Map

Save time on site by mapping underground utilities in just minutes.
Export utilities in CAD or BIM-ready formats for future use on site or in the office.
Create customizable, professional deliverables.

Integrated Solution

Offers a complete workflow from data acquisition to excavation.
Add DXplore Survey to generate utility maps compatible with coordinate reference systems.

Specifications

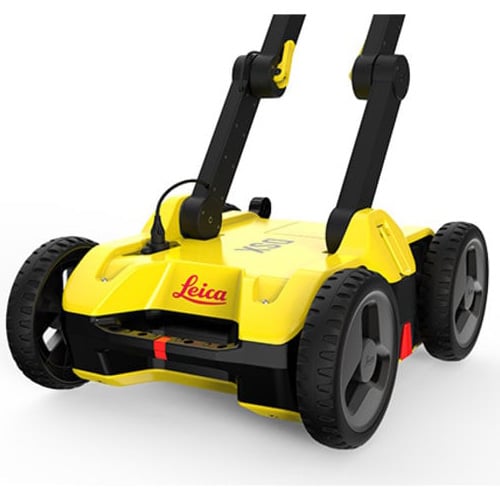

DSX Utility Detection Radar

Central Frequency - 600 MHz
Detection Depth - up to 6.56ft / 2m
Acquisition Speed - Up to 4.3mph or 7km/h
Scan Interval - 18in / 0.50m
Positioning - 2 encoders on wheels, GNSS antenna integration (Surveyor Kit only)
Environmental - IP65
Battery - Li-ion 14.8V / 5800mAh up to 8 hours operating time
Operating Temperature - 14°F to 104°F / -10°C to 40°C
Warranty - 2 years

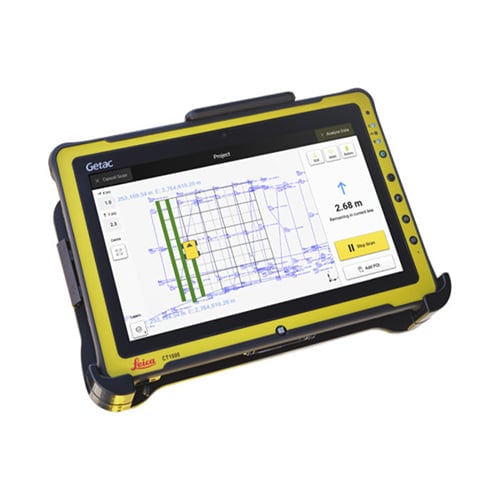

CT1000 Tablet

Display - 11.6in
Processor - Intel Core i3-7100U
Memory - RAM 4GB, 128GB SSD
Operating System - Windows 10 Professional
Positioning - GPS (GlobalSat)
Environmental - Sunlight readable display (LCD + Touchscreen + Hard Tip stylus) IP65/MIL-STD810G
Weight - 3.1lbs / 1.39kg
Battery - Li-ion 11.4V / 2160mAh
Communications - WiFi, Bluetooth v4.2, 4G LTE (Model 880920) - RJ45 connection to DSX
Warranty - 2 Year Global Warranty (Battery - 1 Year)

Software

Setup

Offline tutorials
Status check (connection, battery level, etc.)
Project and draft management

Acquisition

Grid Scan Mode
Radar sensor control (scan and pause, etc.)

Positioning

Real-time position display from wheel encoders
Google Maps and current location support
Reference point entering support
Local coordinate system support.
GNSS antenna support (Leica GS14, 16, 18 T; iCON gps 70, 70 T; GG03, GG04, GG04 Plus)
