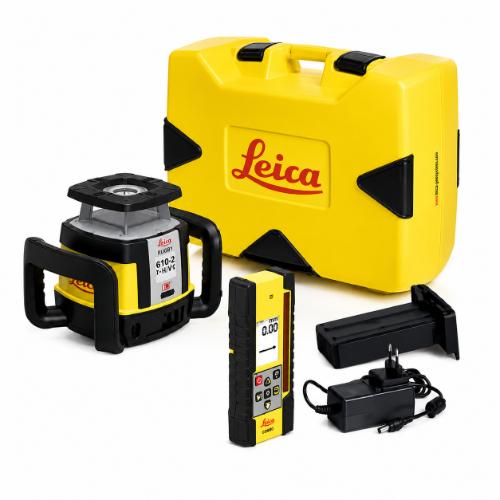

Leica Rugby CLH Combo with CLX200 - Manual Grade Laser - 6012276

The Leica Rugby CLH Combo with CLX200 Manual Grade Laser is a rugged self-leveling rotary laser designed for horizontal leveling and manual single-grade applications. The included CLX200 upgrade enables manual slopes up to 8%, making it ideal for grading, drainage, and concrete work.

With an operating diameter of up to 4,400 ft. (1,350 m) using the included CLC Combo Receiver/Remote, the Rugby CLH delivers dependable performance on large jobsites. Its simple controls, selectable rotation speeds, and accurate self-leveling help crews work efficiently in a variety of construction applications.

Built to withstand harsh conditions, the Rugby CLH features an IP68 dustproof and waterproof rating, long-lasting rechargeable Li-Ion battery, and an upgradeable CLX platform that allows additional functionality to be added as project needs evolve.

• Manual single-grade functionality with CLX200 upgrade
• Creates manual slopes up to 8% on a single axis
• Slope Catch and Slope Lock for matching and maintaining existing grades
• Self-leveling accuracy of ±1/16 in. at 100 ft. (±1.5 mm at 30 m)
• Self-leveling range of ±6°
• Working range up to 4,400 ft. (1,350 m) diameter with the included CLC Combo Receiver/Remote
• Remote control operating range up to 1,968 ft. (600 m) diameter
• Selectable rotation speeds of 10, 15, and 20 RPS
• Rugged IP68 and MIL-STD-810G construction for demanding jobsite conditions
• Rechargeable Li-Ion battery provides up to 50 hours of runtime with fast charging capability
• Upgradeable CLX platform allows future expansion without replacing the laser

• Manual slope and grade setting
• Driveways and access ramps
• Parking lots and drainage work
• Concrete and form leveling
• Site preparation and land leveling
• Elevation transfer and height checking
