Nedo Z28 - Z Series 28X Automatic Builders Level (460757-185)

Product Code: ES8209
Nedo Z28 - Z Series 28X Automatic Builders Level
Nedo Z28 - Z Series 28X Automatic Builders Level
Nedo Z28 - Z Series 28X Automatic Builders Level Nedo Z28 - Z Series 28X Automatic Builders Level
Condition: New
  • Usually ships off dock within:2 to 4 Business Days
Your Price $384.99
(You Save 30%)
List Price $550.00

Accepted Payment Types

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description
More Information
Reviews
Help

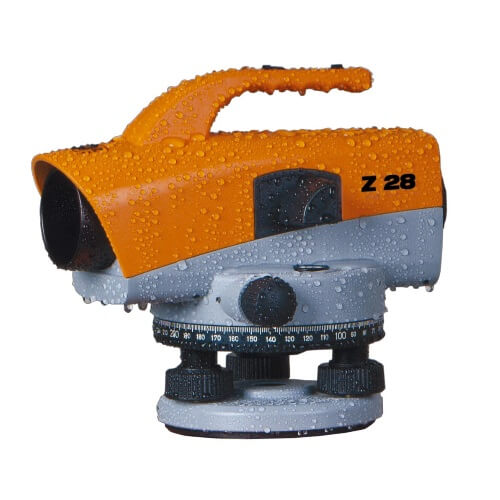

Nedo Z Series 28X Automatic Builder's Level

Model Number: Z28

The Nedo Z-Series levels are premium engineers’ auto levels that meet the most exacting demands. These levels have an especially large aperture to provide plenty of light-gathering power, a rugged, air-damped compensator and a jet-water proof metal housing conforming to protection class IP X6. Perfect for extreme conditions like dust and rain.

Description:
  • Automatic engineers' level
  • Bright optics with large objective aperture: 36 mm
  • Jet water protected; IP X6
  • Sturdy, reliable air-damped compensator
  • Sturdy metal housing
  • High-contrast image
  • Made in China
Specifications:
  • Image: upright
  • Magnification: 28x
  • Stadia Feature for Measuring Distance 1:100 Ratio
  • Clear objective aperture: 1.4'' / 36 mm
  • Shortest focusing distance: 25.6'' / 0.65 m
  • Multiplication factor: 100
  • Compensator operating range: ±15'
  • Setting accuracy: ±0.4"
  • Horizontal circle: 360°
  • Sensitivity of circular bubble: 8'/0.08'' / 8'/2 mm
  • Accuracy 1 km Double run leveling standard Deviation: ±0.06''/1.5 mm
  • Protection class: IP X6
  • Weight: 3.8 lbs. / 1.75 kg
  • Connecting thread : 5/8"x 11
Includes:
    Nedo Z28 28X Automatic Builder's Level

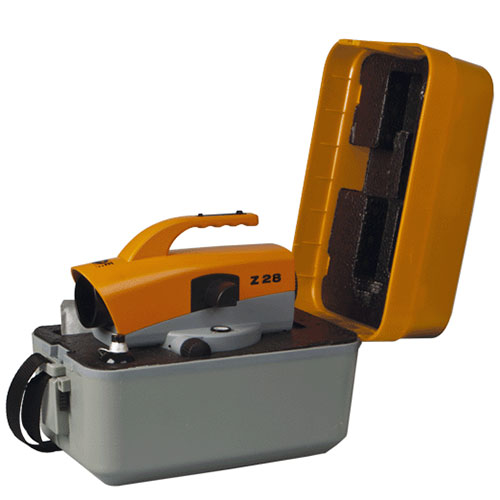

  • Carrying Case
  • Lens Cover
  • Plumb Bob
  • Allen Key
  • Adjusting Pin
  • One Year Manufacturers Warranty

Click here to view the Nedo Z Series Auto Levels Brochure

  • MPN: 460757-185
