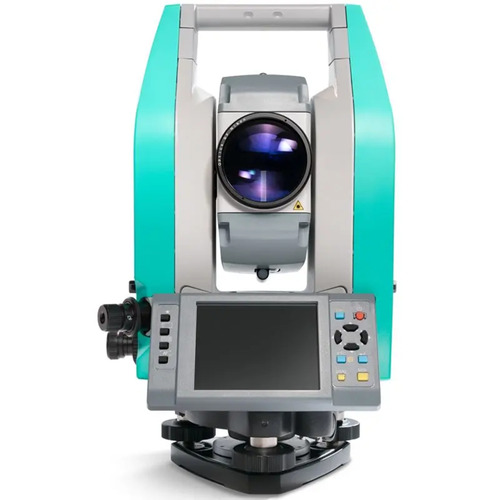

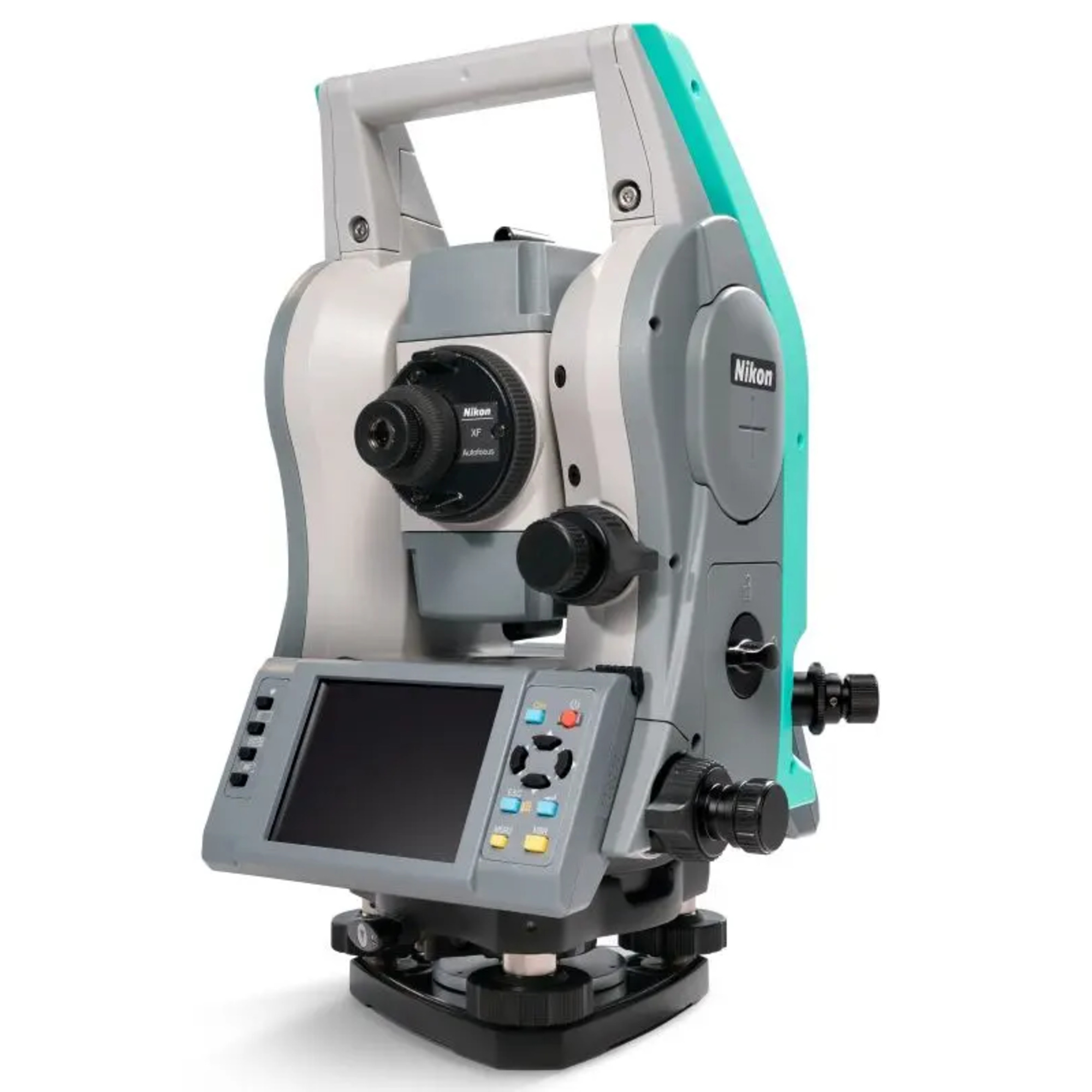

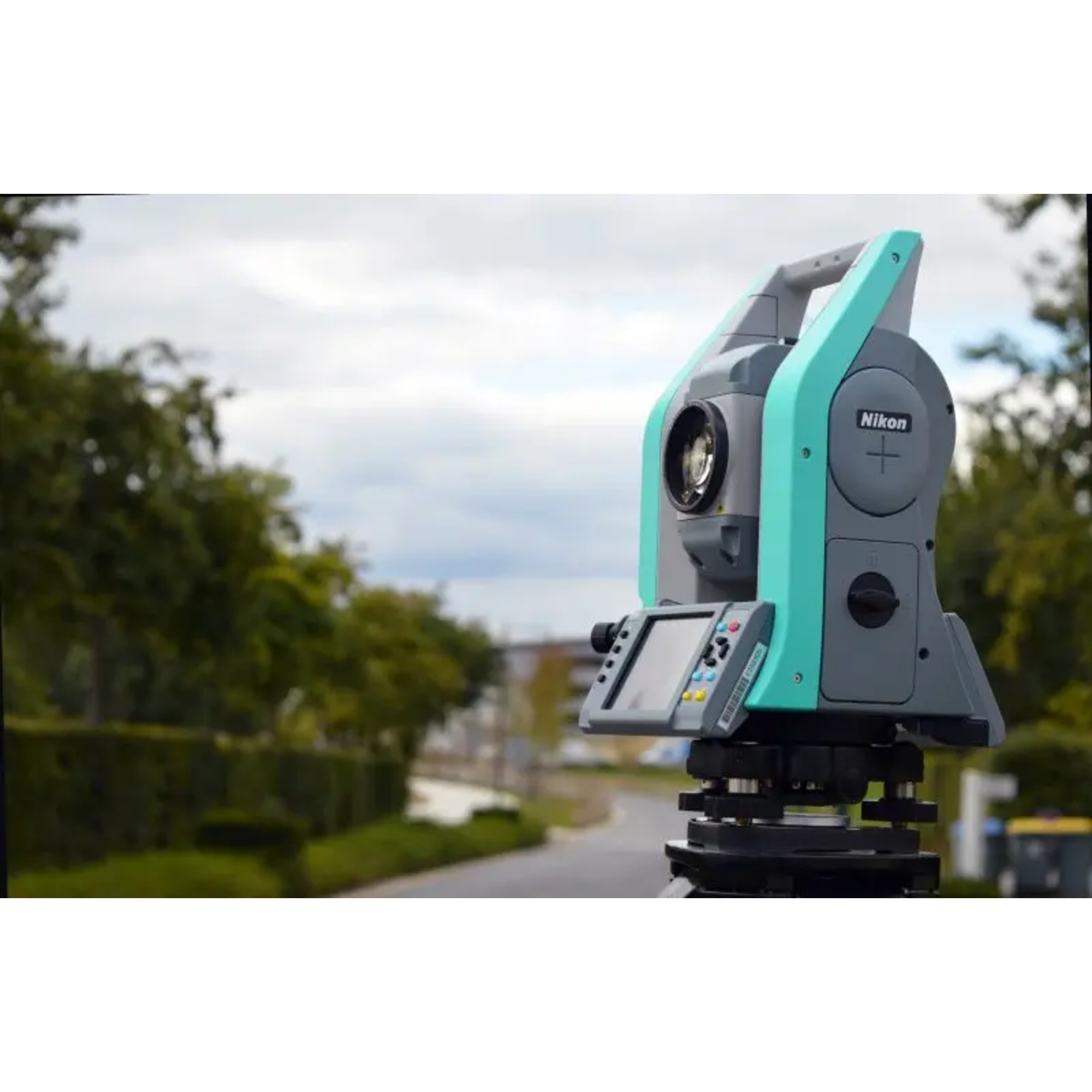

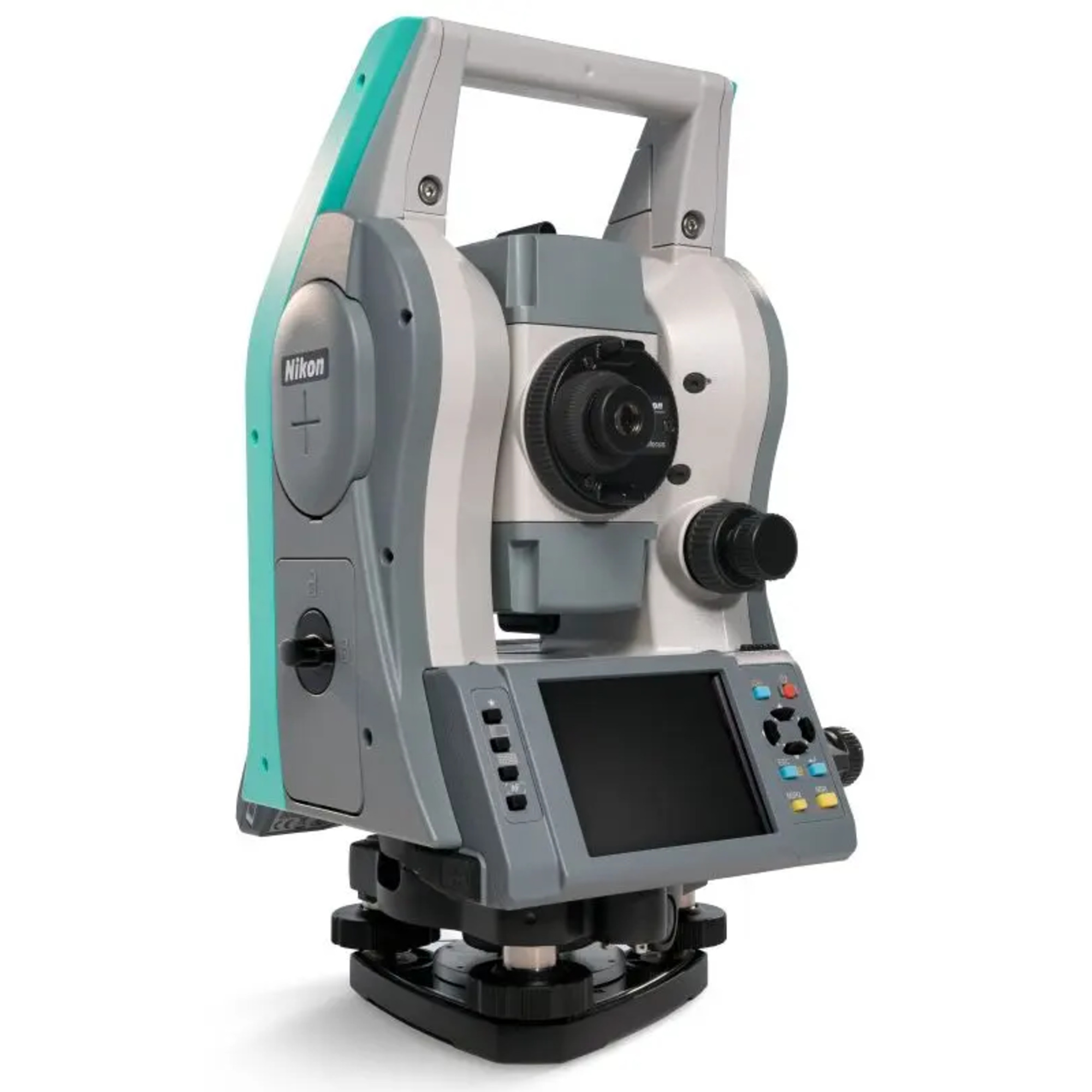

Nikon XF HP Series 1" High Precision Total Station w/ Optical Plummet - HNA40170

Nikon XF HP Series 1" High Precision Total Station is the premium model in Nikon’s XF series, engineered to provide outstanding precision, efficiency, and dependability for demanding layout and measurement work. Manufactured in Japan with Nikon’s renowned optics and a durable construction, it is tailored for surveyors who require enhanced accuracy across diverse field conditions.

• High Precision: 1" angular accuracy for critical survey tasks.
• Phase Shift EDM Technology: Provides superior accuracy for non-prism edge and corner measurements compared to Time-of-Flight EDM.
• Dual Color Touchscreen Displays: Easy-to-use interface with Survey Pro and Layout Pro onboard software.
• Hot-Swappable Batteries: Continuous operation without downtime.
• Optical Plummet: Ensures precise instrument setup.
• Security Options: PIN protection and optional L2P asset tracking.
• Easy non-prism edge and corner measurements

• Angle accuracy: 1" (0.3mgon)
• EDM type: Reflectorless technology
• EDM accuracy to Prism: Nikon XF HP: (1mm + 1.5ppm)
• Distance range: Nikon XF HP: Up to 3,000m (16,404 ft) to single prism (ISO 17123-4)"
• Reflectorless range: Nikon XF HP: Up to 500 m (2,625 ft) (KGC 90%)"
• Compensator: Dual axis
• Others:
  • Autofocus on Nikon XF (not available on HP models)
  • Dual-face, full-sized color touchscreen displays
  • PIN security
  • Compact, light weight total station
  • Powerful onboard software: Survey Pro (included standard), Survey Basic (included standard) and Layout
  • Pro (license included standard, install optional)
  • 2x Li-Ion long-life batteries, hot swappable
  • 512 MB RAM / 4 GB Flash Storage Memory
  • USB memory stick port for data transfer
  • Bluetooth and Laser Pointer
  • Optical plummet

• 1x Nikon XF HP Main Unit
• 2x Li-Ion Long-life Batteries
• 1x Tribrach
• 1x Plastic Carrying Case
• 2x Shoulder Straps for Carrying case
• 1x Universal Charger, Power Cord and Adapters
• 1x Rain/Dust Cover
• 1x Lens Cap
• 1x Adjustment Pin Tool
• 1x Allen Wrench
