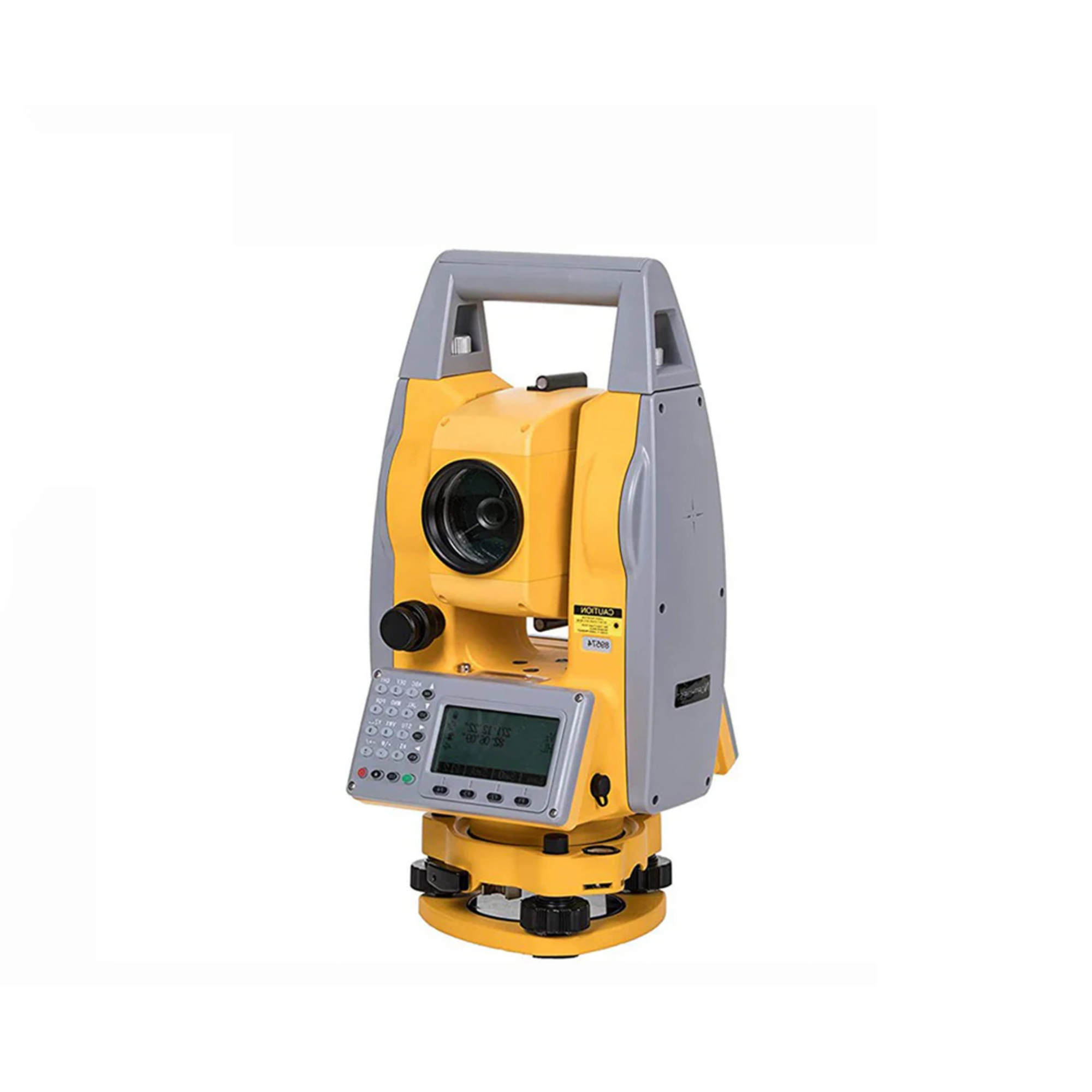

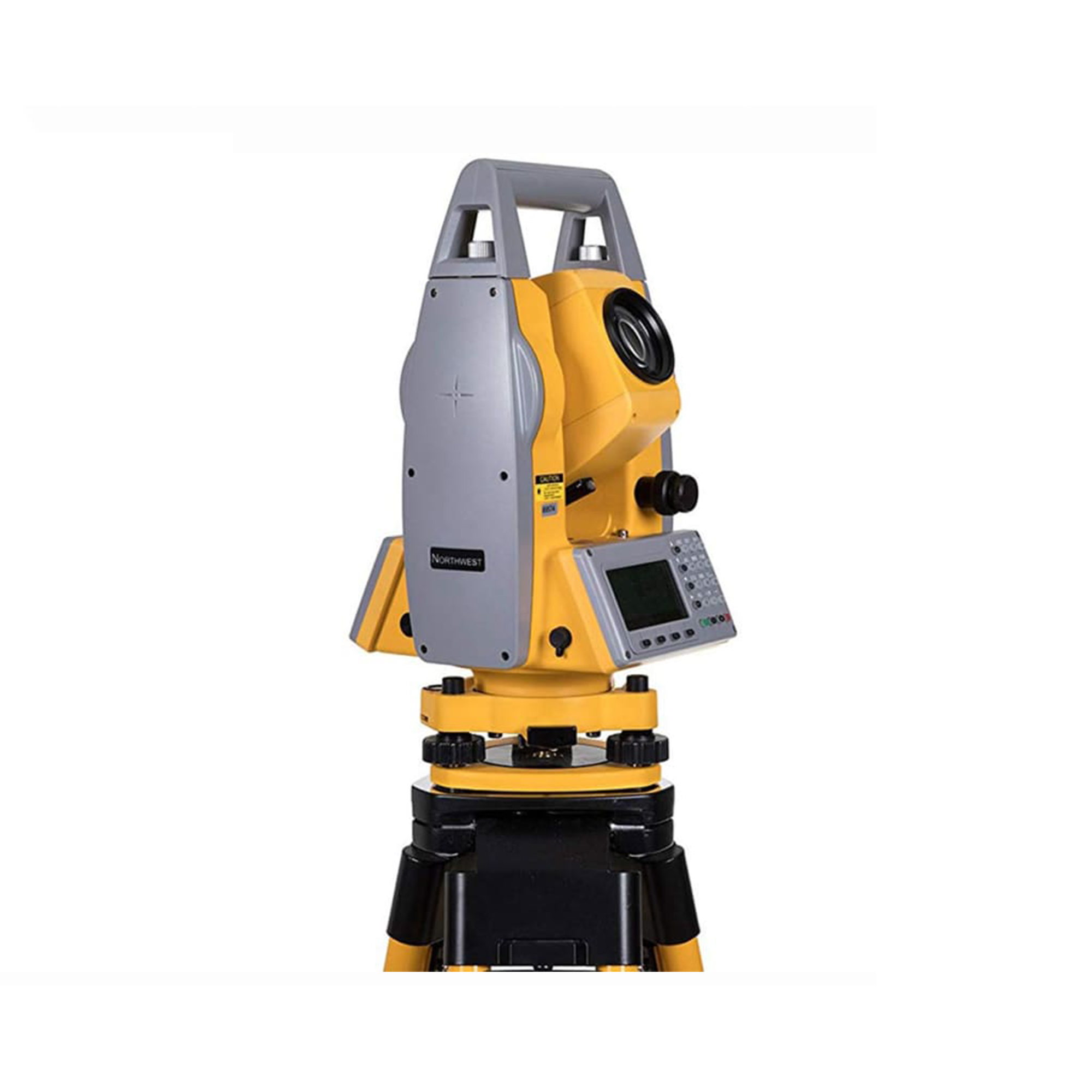

Northwest Instrument NTS03 Total Station

Model Number: 10836

Features:

NTS03 is the newest reflectorless series of NWi Total Stations.
It’s key features are designed to quickly, reliably and efficiently get the job done in any environment.
Accurate, economical, durable and dependable
The 2” NTS03 Total Station is the complete on-the-site solution for construction and survey professionals.

Specifications:

Telescope
Objective Aperture (EDM): Φ45mm
Magnification: 30x, 1º20’ Field of View
Resolving Power: 4.0”
Minimum Sight Distance: 1.2 m (3.94 ft)
Angle Measurement
Measuring Method: Absolute Encoder
Minimum Display: 1”/5”/10”, selectable
Detection Method: Level Radial, Vertical Radial
Accuracy: 2”
Range Finding:
Reflectorless/Laser Pointer: Class 3R/IIIa
EDM: Coaxial
Automatic Correction of Input Parameters: Meteorological, Atmospheric Refraction, Earth Curvature
Instrument
Display: LCD, 6 lines x 12 characters
Internal Memory: 20,000 points
Data Port: I/O, USB , Bluetooth, Micro SD Operating
Time: 9 hours Battery
Battery: Rechargeable Lithium Ion Battery
Weather Proof: IP55 (IEC60529)
Operating Temperature: -20°c to +50°c
Level Vial Sensitivity
Plate Level: 30" / 2mm
I Circular Level 8' 12mm
Compensation:
Method: Electronic
Range: +/- 3' 1 Resolving Power 3"
Laser Plummet
Accuracy: +/- 0.8mm / 1.5m
Laser Class 2/1 EC60825-1
