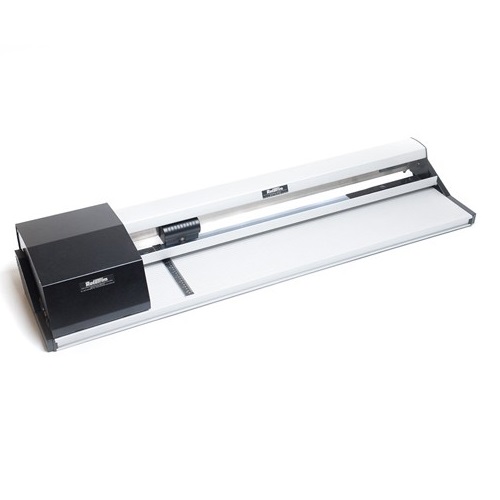

Rotatrim RCPT2150 - PowerTech Series 2150 - 85" Rotary Trimmer 60440

Model Number: 60440

The PT2150 is the second largest size in the PowerTech ‘PT’ Series range and will power through materials of up to 85″ (2150mm) in length, large enough to accommodate 2A0 landscape. It is a heavy duty precision trimmer which will cut most flexible materials up to 2.0mm in thickness.

Powered trimmer with foot pedal operation
Two speed variants available: normal (0.5M/sec) or high (1.0M/sec)
Self-lifting clamp mechanism enables a single user to evenly cut large materials
Overload protection feature
Ultra hard Sheffield D2 ‘Tool Steel’ self-sharpening, precision engineered blades
Large single square stainless steel guide rail completely eliminates head swivel
Aluminium baseboard, end frames, head and side rule

All PowerTech trimmers come complete with foot-pedal, mains power cable and a spare cutting wheel.

Machine Speed Variants
The PowerTech is available in both normal speed and high speed variants. The normal speed variant cuts at 0.5M/sec and has more torque so is better for trimming heavier materials. The high speed version cuts at 1.0M/sec and is better where lighter materials (generally up to 1.0mm) in thickness are being cut. On the high speed machine, it is also possible to remove the RCC plate (as it is used for thinner materials), to allow for a cut to be performed in both directions.

The PowerTech is a powered version of the Technical, operated by a foot pedal. Heavy-volume, large-format shops will see a quick return on investment through reduced manpower and increased productivity.

The PowerTech frees both hands and decreases operator fatigue.
The trimmer is electrically driven through a steel-reinforced belt for longevity.
All-metal construction (and extruded aluminum baseboard, end frames and head) ensure robustness.
An auto-lifting clamping mechanism locks materials into place as the head begins to cut, then automatically releases at the completion of the cut; prevents material and substrate scratching.
A triple roller mechanism provides extreme down force for the cutting of heavy materials (maximum cut depth of 3mm).

Perfect for cutting up to 3mm:

Aluminum (.5mm)
Banners
Canvas
Card
Cellophane
Cibachrome
Cork
Digital prints
Encapsulations
Engraving lam (1mm)
Flexographic plates (.067″)
Floor graphics
Foamex (1mm)
Foil
Inkjet paper
Laminations
Leather
Lithoplate
Magnetic Vinyl
Masonite (2mm)
MDF (2mm)
Mount board
Photo Paper
Photo Film
Polyester
Polystyrene
Posters
Self-adhesive film
Tissue paper
Veneers

Specifications:

All-metal construction (and extruded aluminum baseboard, end frames and head).
Triple roller mechanism provides extreme down force for the cutting of heavy materials.
Maximum cut depth of up to 3mm.
Trimmer Voltage: 120V
Self-Sharpening, Long-lasting, Rotary Blades
Blades ground to extremely tight tolerances twice and then deflashed to remove any edge burring.
Foot Pedal Operated: The trimmer is electrically driven through a steel-reinforced belt for longevity
The cutting head will move alternately from left to right and right to left each time the footswitch is depressed.
Cut Length: 85"
Overall Size: 114″W x 13 1/2″D x 7″H
ISO9001:2008 quality certified
1 year general manufacturers' warranty under normal use (excluding cutting wheels, motors and clamping strips)
Made in England

MPN: 60440
