Schonstedt Multi-Frequency Pipe & Cable Locator

Model Number: REX

Features:

The sleek design of the transmitter is less than 2” thick and weighs less than 4 lbs. At slightly over 7 lbs.
The entire system fits easily into a custom shoulder bag.
Ultralight Design: Receiver + Transmitter = Under 7lbs
Compact & Portable: Receiver retracts for easy carrying
Multi-Frequency Versatility: 512 Hz, 33 kHz and 82 kHz, plus 50/60 Hz passive and 512 Hz sonde detection
Transmitter comes equipped with rechargeable batteries
Designed for utility locating professionals in Water, Sewer, Gas, Electric, Telecomm industries.

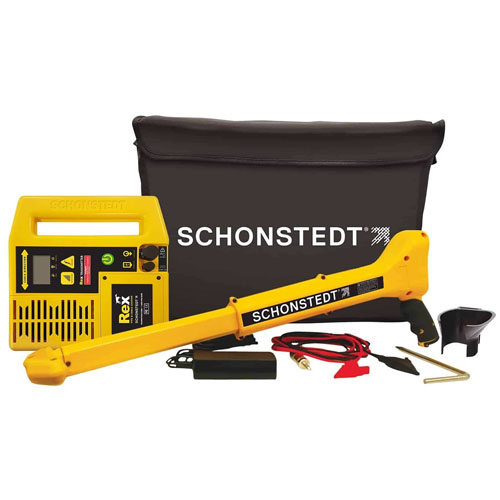

Package Includes:

Receiver & Transmitter
Holster (Model Number: PC10012)
Conductive Clip Assembly (Model Number: TM70000) which includes Standard Conductive Clips

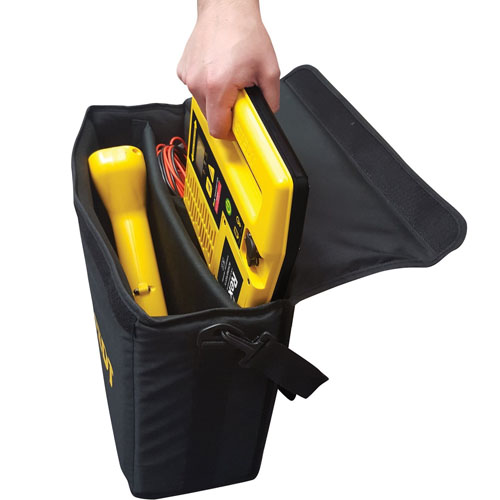

Soft Shoulder Bag (holds receiver, transmitter, accessories)
Ground Stake (Model Number: 208263)
Power Supply & Cord for Transmitter charging
Rex Receiver: One 9V Battery (in unit) (Model Number: B11013)
Rex Transmitter: One Rechargeable NiMH pack (12V) (in unit) (Model Number: FD50040)
3 Year Manufacturer's Warranty

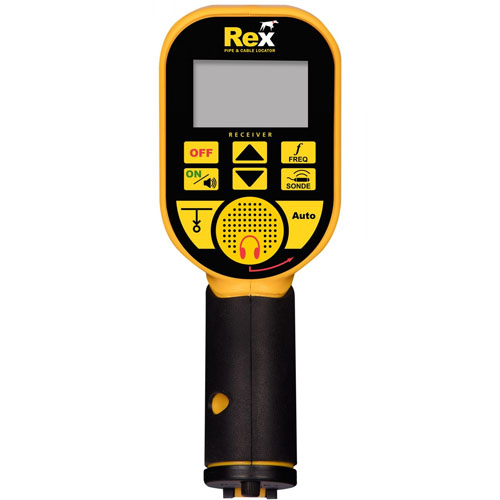

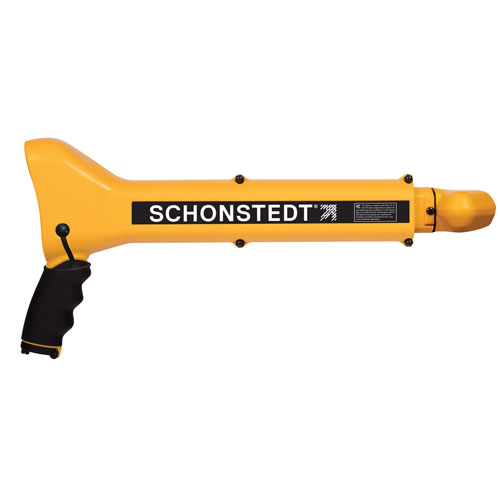

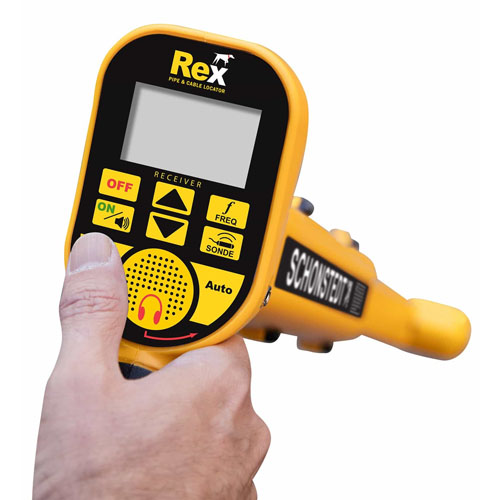

REX Specifications:

Operating Frequency: Active: 512 Hz, 33 kHz and 82 kHz; Passive: 50 or 60 Hz; Sonde: 512 Hz
Battery: One 9V battery
Battery Life: 12 hours (intermittent use)
Weight (incl. batteries): 2.8 lbs (1.25 kg)
Operating Temp: -4°F to 140°F (-20°C to 70°C)
Water and Dust Resistance: Rated IP54
Dimensions: Closed: 17.5" (~44 cm); Extended: 27.7" (~70 cm)
Max. Depth Capability: Approximately 19' (5.8 m)
Sonde mode: approximately 5’ - 15’ (1.5 m to 4.2 m)

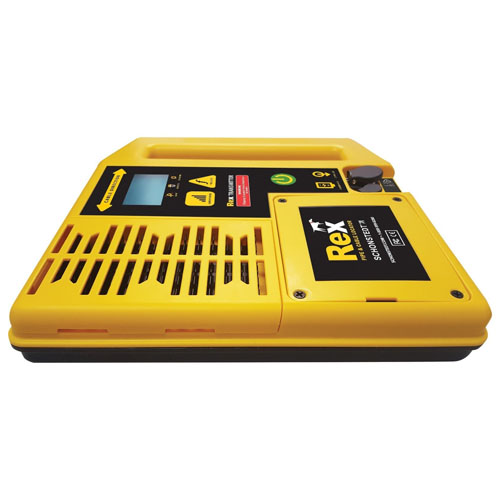

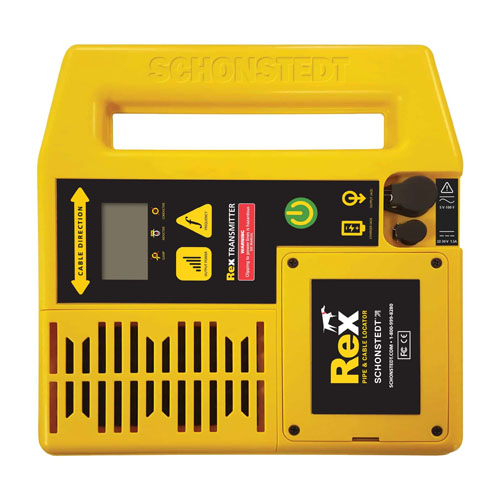

Transmitter Specifications:

Operating Frequency: 512 Hz, 33 kHz and 82 kHz
Operating Modes: Conductive, Inductive, and Inductive Clamp
Max Output Power (Conductive mode @ 1000 Ω load): 512 Hz - 1/2, 1, 2 or 5 W; 33 kHz - 1/2, 1, 2 or 5 W; 82 kHz - 1/2 or 1 W
Battery Type: Rechargeable NiMH pack (12V)
Battery Life: 8 Hours (intermittent usage @ 70° F)
Charging: Internal Smart Charger powered by AC/DC power adapter
Dimensions: 10”W x 10.25”D x 1.75” H (25.4 cm x 26 cm x 4.5 cm)
Weight: 3.5 lbs (1.6 kg)
Operating Temperature: -4°F to 140°F (-20°C to 70°C)
Backlighting: White LED array
Water and Dust Resistance: Rated IP54
