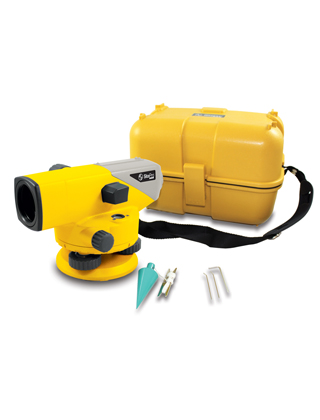

SitePro 24-Power Automatic Level Sokkia Style 25-SK24X

These autolevels feature excellent magnification with large aperture that allows more light for a sharper image. Finely tuned magnetically dampened compensator levels and stabilizes the line of sight despite fine vibrations providing high precision leveling results

• Compensator is designed with four suspension wires made of super-high-tensile metal that features minimal thermal expansion coefficient
• Horizontal and vertical cross hairs with 1:100 stadia lines - measures level, alignment & estimates distance
• Fine motion horizontal tangent knobs on left and right sides allow friction braked rotation, endless horizontal drive and precise pointing and angle measurement
• Peep sight to aid in sighting
• Solid leveling metal base with three precision leveling screws provides stability in all weather and jobsite conditions
• 360° Graduated horizontal circle in 1-degree increments for layout applications
• 10'/2mm circular bubble vial with 90-degree mirror for accurate and quick set-up

Specifications:

• Magnification: 24X
• Leveling Accuracy: 1/16-in at 150-ft (1.5mm @ 46m)
• Angular Accuracy: 1°
• Working Range: 300-ft (92m)
• Field of View: 1° 20'
• Minimum Focus Distance: < 1-feet
• Compensator range: +/-15'
• Comp Setting: ±0.3"

Includes:

• Level
• Lens Cover
• Plumb Bob
• Adjustment Tools
• Carrying Case
• User Manual
