SitePro DW 3-D Rotary Laser - 27-LR430HDV

Product Code: ES9658
SitePro DW 3-D Rotary Laser - 27-LR430HDV
SitePro DW 3-D Rotary Laser - 27-LR430HDV
Condition: New
  • Usually ships off dock within:2 to 4 Business Days
Your Price $1,293.80
(You Save 30%)
List Price $1,857.60

Accepted Payment Types

Apply Now
Easy Financing Available
as low as $22/mo
for 60 months. Details

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description
More Information
Reviews
Help
SitePro DW 3-D Rotary Laser

Model Number: 27-LR430HDV

Features:

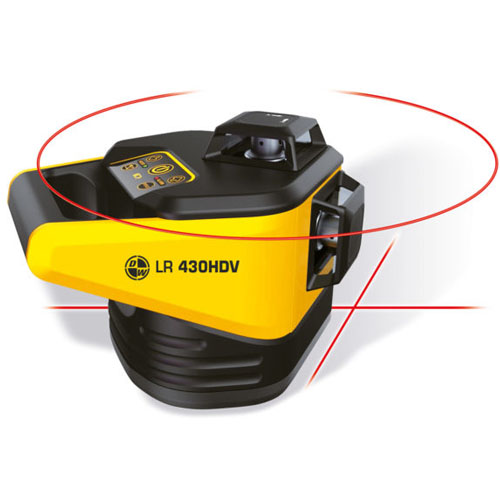

  • The LR 430HDV is a 3-dimensional rotary laser featuring three 360° plane leveling system- horizontal and two 90° vertical rotating laser planes.
  • 1/16-in at 100 feet (1.8mm at 30m) leveling accuracy
  • 2,950 ft (900m) diameter working range with detector
  • Extremely high rotation speed of up to 2,000 rpm
  • Electronic self-leveling
  • Three integrated rotary head with built-in 635nm diodes
  • Compact, ergonomic design with single button operation
  • Multiple scan angles, beam positioning, and variable rotation speeds
  • Single axis ±4° slope
Specifications:
  • Leveling: Horizontal w/2x 90° Verticals
  • Horizontal Accuracy: ±1/16-in at 100-ft (±1.8mm at 30m)
  • Vertical Accuracy: ±1/8-in at 100-ft (±3mm at 30m)
  • Angle Accuracy: 20”
  • Leveling Type: Electronic Self-Leveling (±4º)
  • Slope/Grade: Single Axis -4º to +4º
  • Working Range (dia.) Without Detector: Up to 65-ft (20m)
  • Working Range (dia.) With Detector: Up to 2950-ft (900m)
  • Beam Rating: 635 nm, Class 2
  • Beam Color: Red
  • Rotation Speed: 400, 800, 2000 RPM
  • Scanning: 10°, 45°, 90°
  • Power Supply: Four (4) C Cell Alkaline or Li-on Rechargeable Batteries
  • Operating Time with Li-Ionen Battery: 10.5 to 23 hrs
  • Operating Time with Alkaline Batteries: 13 to 35 hrs
  • Environment: IP55, Water/Dust Resistant
  • Operating Temp.: 14° to 112° F (-10° to + 45° C)
  • Storage Temp.: -4° to 158° F (-20° to 70° C)
  • Dimension: 8.5 x 6.0 x 6.2-in (215 x 150 x 156mm)
  • Weight (instrument): 4.7 lb (2.07 kg)

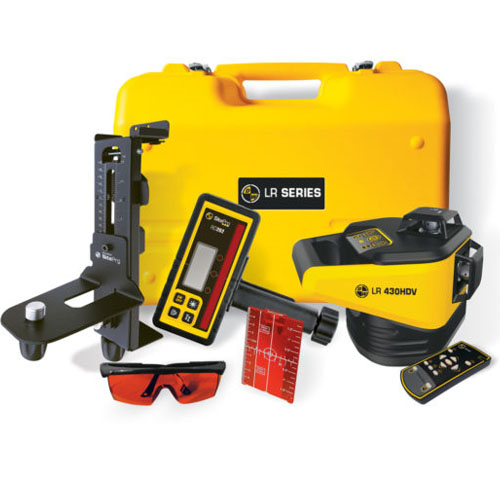

Includes:
  • LR 430HDV rotary laser
  • RD202 Laser detector
  • Remote
  • Universal mount
  • Magnetic target
  • Glasses
  • Rechargeable battery/charger kit
  • 4-’C’ alkaline batteries
  • Carrying case
  • User guide
  • MPN: 27-LR430HDV
  • UPC:
