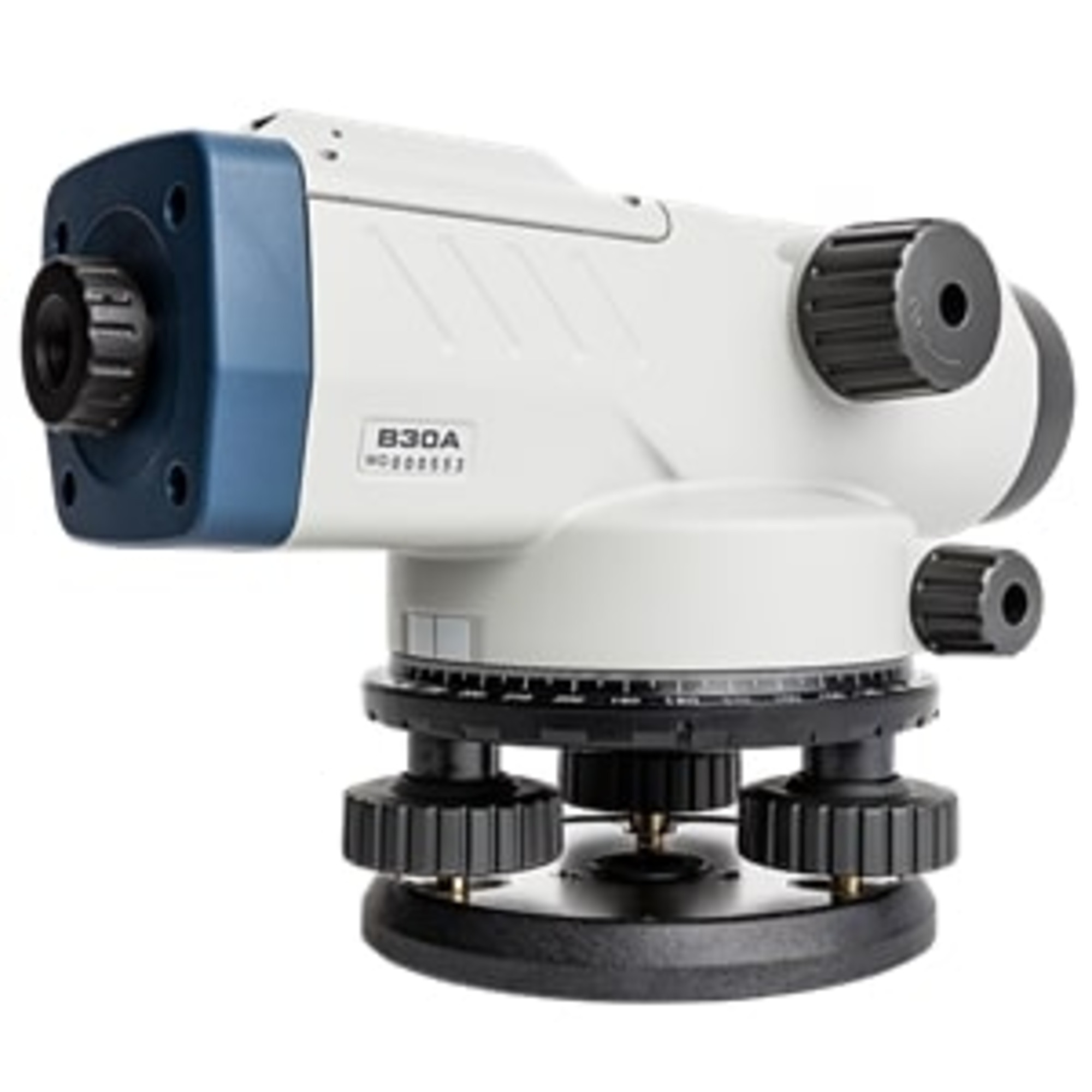

Sokkia B30 28X Automatic Level

Model Number: 1009572-03

Sokkia B series automatic levels feature enhanced reliability under all environmental conditions. Tough and compact bodies are more tightly sealed against water, humidity and dust (IPx6). The B series levels provide quick setup, easy sighting, and superior durability against vibration and shock, ensuring the increased productivity over an extra-long period of time.

Features

Precise, Reliable Automatic Compensator: The B series levels incorporate the most precise and reliable compensator available in the market today. The technological superiority of the Sokkia automatic levels has been proven since the release of the best-selling B2 model in 1963. Four super-high-tensile suspension wires and magnetic damping system ensure accuracy and stability even when exposed to temperature changes, vibrations, or shock.
Superior Telescope: Optimally designed telescope provides exceptionally bright and sharp view that reduces operator's eye strain. Ultra-short focus distance of 20cm (7.9in.) from end of telescope makes it easiest to use in confined locations.
Quick Collimation: Two knobs of endless horizontal motion drives can be operated with either hand for fast and easy aiming.
Horizontal Angle Measurement: Horizontal angles can be read in 1° or 1 gon units. Freely rotatable circle allows any angle reading from zero. Right angles can be quickly set for layout and alignment tasks. The readout window is conveniently located on the instrument base - directly below the eyepiece.
Stadia: The stadia lines on the reticle allow distance measurements. Simply multiply the staff length between the top and bottom stadia lines by 100.
Easy to Adjust: Reticle adjustment is made with one screw. Circular levels vial is adjusted with two screws. Both adjustments are simple and fast with provided tools.

Includes:

B Series Automatic Level Instrument
Lens Cap
Plumb Bob
Vinyl Rain Cover
Cleaning Cloth
Tool Kit
Operator's Manual
Hard Carrying Case
Manufacturers 5-Year Limited Warranty.

Specifications

Model	B30
Telescope
Length	214mm (8.42in.)
Magnification	28x
Objective aperture	36mm (1.42in.)
Resolving power	3.5"
Field of View (at 100m/328ft.)	1°25' (2.5m / 8.2ft.)
Minimum focus	0.2m (7.9in.) from end of telescope 0.3m (1ft.) from instrument center
Image	Erect
Reticle pattern	Cross line
Stadia constant	0
Stadia ratio	100
Focusing knob	1-speed
Sighting aid	Peep sight
Lens hood	-
Accuracy (standard deviation for 1km double run leveling)
Without micrometer	1.5mm (0.06in.)
With micrometer	-
Compensator
Type	Pendulum compensator with magnetic damping system
Setting accuracy	0.5"
Working range	±15'
Circular level
Sensitivity	10' / 2mm
Mirror	Plane mirror
Horizontal circle
Diameter	103mm (4.1 in.)
Graduations	1° / 1gon
General
Horizontal motion drive	Clampless, endless, double-sided knobs
Water resistance	IPX6 (EC 60529:2001)
Operating temperature	-20 to +50°C (-4 to +122°F)
Width	130mm (5.12in.)
Length	215mm (8.46in.)
Height	140mm (5.51in.)
Weight	1.7kg (3.7 lb.)

MPN: 1009572-03
