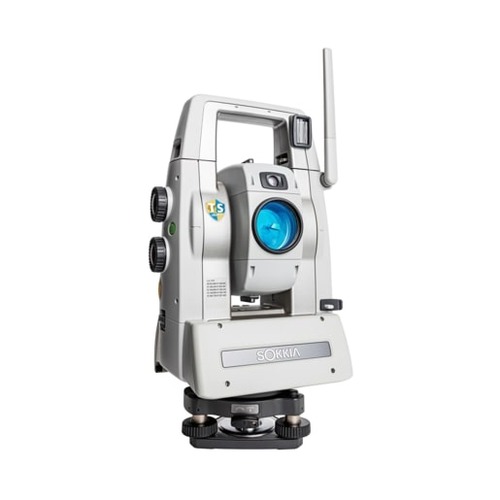

Sokkia NET AX2 Automated 3D Stations w/ Bluetooth & SD Card (US Version) - (2 Options Available)

• 212067101: NET05AX2T 0.5"
• 212067111: NET1AX2T 1"



​The Sokkia NET AXII series, including the NET05AXII and NET1AXII models, represents a line of high-precision Automated 3D Stations designed for applications such as structural monitoring, engineering, and large-scale 3D measurements. The Sokkia NET AXII series Automated 3D Stations are engineered to deliver exceptional precision and reliability, making them ideal for professionals engaged in high-accuracy measurement tasks across various industries.

• Angular accuracy option of either 0.5” or 1”
• Reliable distance accuracy at 0.5 mm
• Rapid and customizable 2D monitoring
• Auto-collimation accuracy of 1”
• Automated Matrix Detection and Target Acquisition

• Telescope
  • Magnification / Resolving power: 30x / 2.5"
• Angle Measurement
  • Display resolutions (selectable): 0.1" / 0.5" (0.00002 / 0.0001 gon, 0.0005 / 0.002 mil)
  • Dual-axis compensator / Collimation compensation: Dual-axis liquid tilt sensor, working range: ±6' / Collimation compensation available
  • IACS (Independent Angle Calibration System): Provided
• Distance Measurement
  • Laser output: Reflectorless mode: Class 3R / Prism / sheet mode: Class 1
  • One prism: 1.3 to 3,500 m (4.3 to 11,480 ft.)
  • Reflective sheet RS50N-R: 1.3 to 200 m (4.3 to 640 ft.)
  • Measuring time (Fine mode): 0.9s (initial 1.5s)
• Auto-Collimating
  • One prism:.3 to 1,000 m (4.3 to 3,280 ft.)
  • Reflective sheet RS50N-R: to 50 m (16 to 160 ft.)
  • Prism 1": mm at 200 m)
  • Reflective sheet: 4" (1 mm at 50 m)
• OS, Interface and Data Management
  • Operating system: ndows® Embedded CE 6.0
  • Display: 5”, transmissive TFT QVGA color LCD with LED backlight, Touch screen, Automatic brightness control
  • Keyboard: 25 keys with backlight
  • Trigger key: On right of instrument support
  • Data storage: Internal: 500 MB (includes memory for program files) / External: USB flash memory up to 8 GB
  • Interface: Serial RS-232C, USB 2.0 (Type A / mini B)
  • Bluetooth®: Bluetooth Class 1, Ver.2.1+EDR, Operating range: up to 600 m (1,960 ft.)*12
• General
  • Target searchlight: LED (white), Blink / On, selectable
  • Laser-pointer: Coaxial red laser using EDM beam, ON / OFF, selectable
  • Levels: Graphic: 6’ (Inner Circle) / Circular level: 10’ / 2 mm
  • Optical plummet: Magnification: 3x, Minimum focus: 0.3 m (11.8 in.) from tribrach bottom Dust and water protection / Operating temperature IP65 (IEC 60529:2001) / -20ºC to 50ºC (-4 to 122ºF)
  • Size with handle (w x d x h): Single face: 230 x 196 x 393 mm / Dual face: 230 x 207 x 393 mm
  • Weight with battery and tribrach: Single face: 6.8 kg (15.0 lb) / Dual face: 7.0 kg (15.4 lb)
  • Motor type / Rotation Speed: DC motor drive / 85°/s
• Power Supply
  • BDC70 Standard Battery: 7.2V, 5.2Ah / Li-ion rechargeable battery
  • Operating time (20ºC): Approx. 4 hours*5
  • External battery (option): BDC60: approx.7 hours / BDC61: approx.14.5 hours
