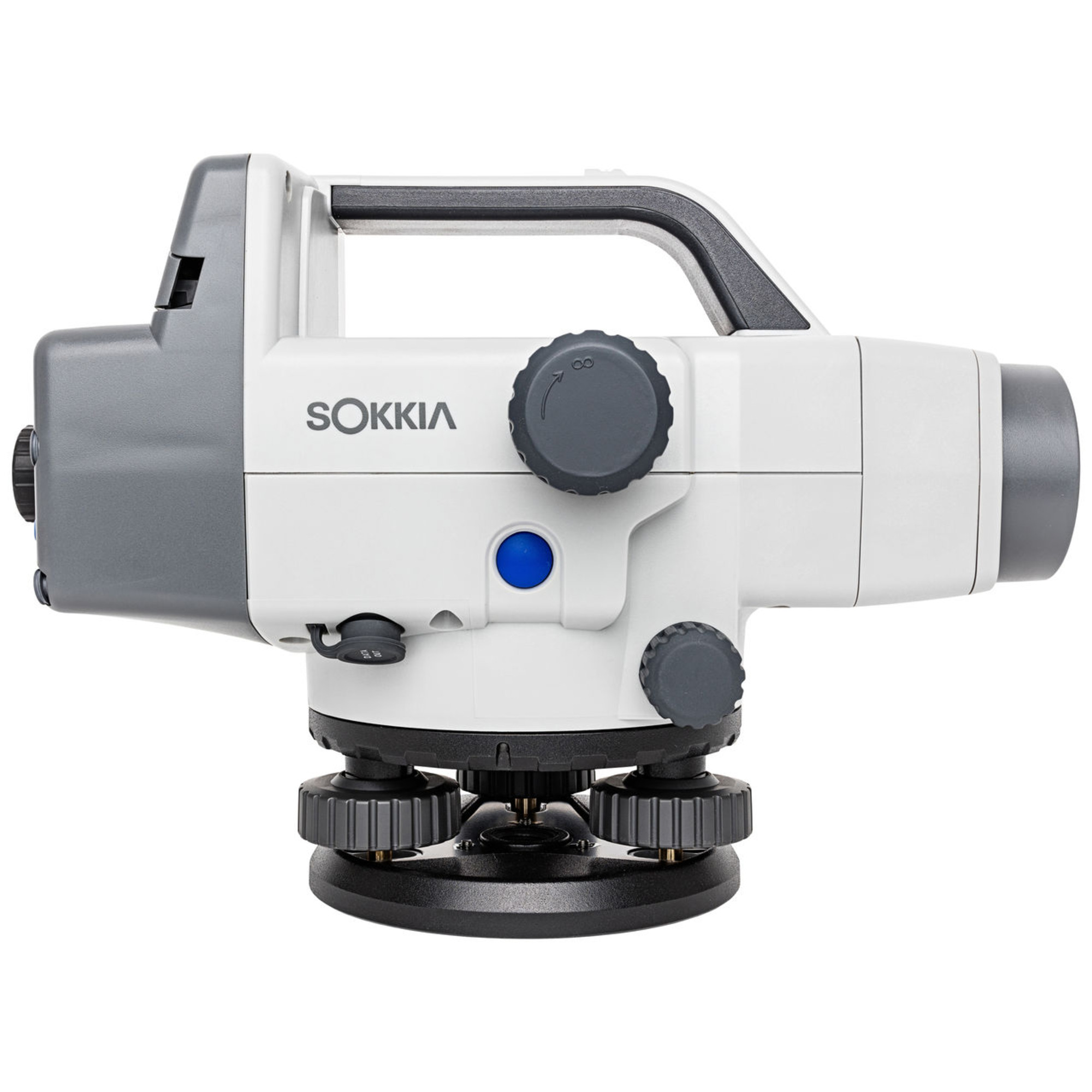

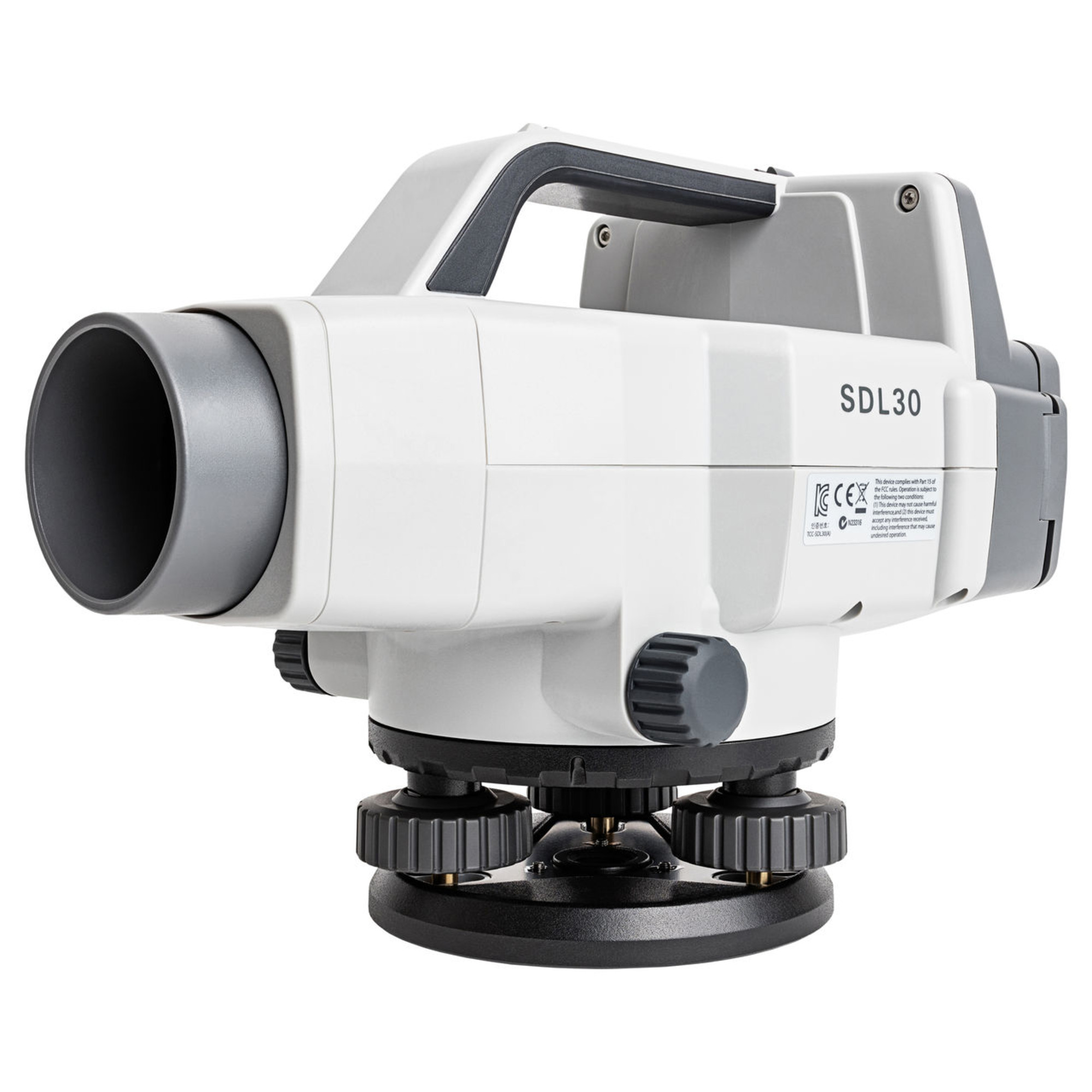

Sokkia SDL30 32x Digital Level - 2112330B0

The SDL30 is an accurate, dependable digital level combining user-friendly convenience and maximum functionality. All you have to do is aim at the staff, adjust the focus, and then with a single touch of a key the SDL30 accurately measures height and distance. The results are easy to see on the LCD.

• Aim, focus and press a key. Height and distance are simultaneously measured in 2.5 seconds, 20 percent faster than ordinary digital levels.

• Distance Measurement
  • BIS30A staff: 0.4 mm (0.016 in.)
  • Height Accuracy (ISO 17123-2): 0.6 mm (0.024 in.)
  • Visual BGS staffs: 1.0 mm (0.04 in.)
• Distance Accuracy (D: measuring distance)
  • Electronic: <±10 mm (±0.4 in.) [D<=10 m (D<=33 ft.)]
• General
  • Sensitivity of circular level: 10'/2mm
  • Horizontal circle: Diameter: 103mm (4in.), Graduation: 1° (1gon)
  • Display: Dot matrix LCD (128 x 32 dot) with illuminator
  • Keyboard: 8 keys (7 keys on front panel, 1 key on side panel)
  • Data storage: 2,000 points internal memory
  • Interface: RS-232C, baud rate 1,200 to 38,400bps
  • Onboard programs: Elevation / Height difference / Cut & Fill setting-out / Setting-out distance / Height measurement
  • Water Protection: IPX4 (IEC60529:2001)
  • Operating Temperature: -20 to 50°C (-4 to 122°F)
  • Size (w x d x h): 158 x 257 x 182 mm (6.2 x 10.1 x 7.2 in.)
  • Weight with Battery: 2.4 kg (5.3 lb.)
  • Standard Battery: BDC46B (Rechargeable Li-ion, 7.2V, 2.45Ah)
  • Operating Time: Approx. 16 hours at 25°C (77°F)
