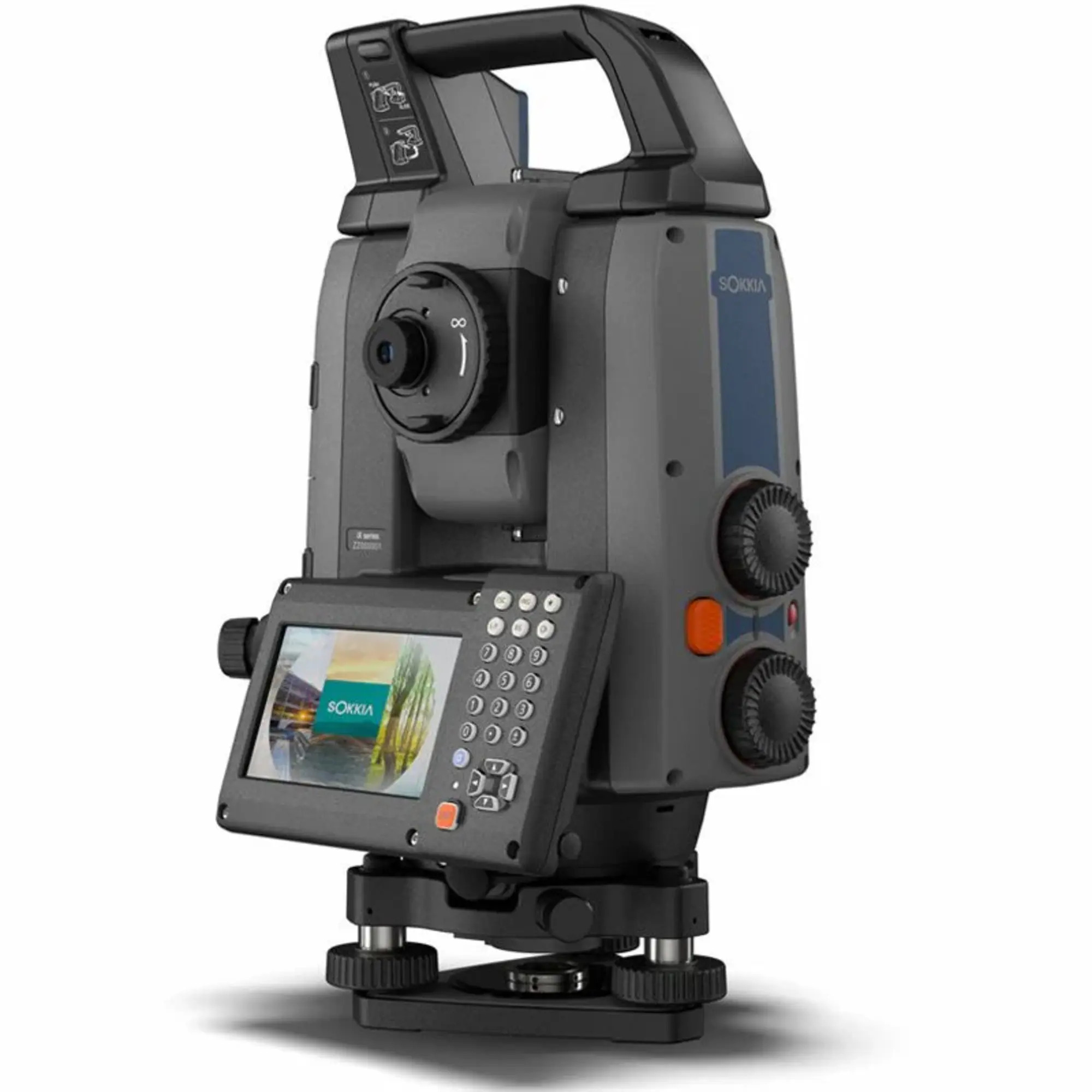

Sokkia iX-1500 Series Intelligence X-ellence Total Station w/ RC Capable Kit & Power Supply (Unit ONLY) - (3 Options Available)

• 1074136-01: iX-1501 - Angle Accuracy 1"
• 1074137-01: iX-1503 - Angle Accuracy 3"
• 1074138-01: iX-1505 - Angle Accuracy 5"



Built for job site mobility, the flagship iX Series robotic total station enables accurate and productive workflows for highly demanding survey and construction applications. Precisely lay out or survey more points in less time and improve quality and consistency. Easy-to-use digital processes with repeatably accurate results mean less rework and better quality control. iX is one professional tool that does it all for survey and layout.

NOTE: The text “w/RC” in the descriptions simply means that RC connectivity is supported on the instrument. The RC devices are not included in these PN’s and must be purchased separately or as part of a specific solution kit.

• Precise positioning with single-person operation
• High-speed advanced ultrasonic motors
• Easy-to-use with MAGNET or GeoPro software
• Seamless integration into BIM workflows
• Three-year instrument and five-year motor warranty
• Ultra-rugged IP65 dust and water resistance

• Non-Prism Accuracy: 2mm (0.0065 ft) + 2ppm
• Accuracy: (0.3, 1.0, 1.5) mgon
• Prism-2 EDM Range: 6000m (19685ft)
• Prism EDM Accuracy: 1mm (0.003 ft) + 2ppm
• Non-Prism Range: Up to 800m (2624ft)
• UltraTrac Range Prism-2: Up to 1000m (3280ft)
• Turning Speed: 150°/sec
• Tracking Speed: 20°/sec

• Model
  • Motor: Brushless Direct Current (BLDC) motor
  • Tracking range: 360° Prism ATP1/ATP1S: 600m (1968ft)
  • RC range: Up to 600m (1968ft)
  • Dual-axis compensator (Tilt): ±6'
• Data Management
  • Field Software: Sokkia Field/3rd parties
  • Data Storage: Internal: 1GB
  • USB: Up to 32GB
  • Interface: RS-232C, USB 2.0 (Type A and mini B)
  • LongLink™: Yes. Up to 600m
  • WiFi: IEEE 802.11 b/g/n
• Hardware
  • Guide Light: Green LED (524nm) and Red LED (626nm)
  • Operating range: 1.3 to 150m (4.3 to 490ft)
  • Ingress protection: IP65 (IEC 60529:2001)
  • Operating temperature: -20 to +50°C (-4 to +122°F)
  • Dimensions: 212(W) x 172(D) x 355(H)mm | 8.32" x 6.77" x 13.97"
  • Weight with battry & tribrach: Approx. 5.8kg (12.8lb) (with RC-PR5 handle)
  • Laser plummet: Optional
• Power Source
  • Power source: BDC72 Li-ion (5986 mAh)
  • Operating time (20°C): ~ 4 hours
• Telescope
  • Length: 142 mm
  • Aperture: EDM: 38 mm
  • Magnification: 30x
  • Image: Erect
  • Resolving power: 2.5”
  • Field of view: 1°30’
  • Minimum focus: 1.3 m (4.3 ft.)
  • Reticle illumination: 5 brightness levels
• Angle Measurement
  • Horizontal and vertical circles type: Rotary absolute encoder
  • Detecting: 2 sides
  • Angle Units: Degree/Gon/Mil (selectable)
• Angle Accuracy (ISO 17123-3 : 2001)
  • Collimation compensation: On/Off (selectable)
  • Measuring mode: Horizontal angle: Right/Left (selectable) Vertical angle: Zenith/Horizontal/Horizontal ± 90° /% (selectable)
• Tilt Angle Compensation
  • Type: Liquid 2-axis tilt sensor
  • Minimum display: 1”
  • Range of compensation: ± 6’ (0.0018 gon)
  • Automatic compensator: On (V and H/V) / Off (selectable)
  • Tilt offset: Can be changed
• Distance Measurement
  • Measuring method: Coaxial phase shift measuring system
  • Signal source: Red laser diode 690 nm Class 3R
  • (IEC60825-1 Ed. 3.0: 2014/FDA CDRH 21CFR Part1040.10 and 1040.11 (Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No.56, dated May 8, 2019.))
• Measuring Range
  • Prism-2 X 1*2: 1.3 to 6,000 m (19,685 ft.)
  • 360° Prism ATP1/ATP1S: 1.3 to 1,000 m (3,280 ft.)
  • Prism-5: 1.3 to 500 m (1,640 ft.)
  • Reflective sheet RS90N-K*3: 1.3 to 500 m (1,640 ft.)
  • Reflective sheet RS50N-K*3: 1.3 to 300 m (980 ft.)
  • Reflective sheet RS10N-K*3: 1.3 to 100 m (320 ft.)
  • Reflectorless (White)*2: 0.3 to 800 m (2,624 ft.)
