Spectra Geospatial SP100 Network Rover Kit with Ranger 7 Data Collector - SG-NROV-KIT

The Spectra Geospatial SG‑NROV‑KIT is a high‑performance GNSS network rover solution designed for precision surveying and mapping applications. Featuring the SP100 Tilt GNSS Receiver and Ranger 7 Data Collector, this kit delivers centimeter‑level accuracy with tilt compensation, multi‑constellation tracking, and seamless network connectivity. Built for demanding field conditions, it combines advanced technology with rugged reliability for professional geospatial workflows.

• SP100 Tilt GNSS Receiver with multi‑constellation support (GPS, GLONASS, Galileo, BeiDou)
• Network RTK connectivity via cellular or Wi‑Fi for real‑time corrections
• Tilt compensation for accurate measurements even when the pole isn’t perfectly vertical
• Spectra Ranger 7 Data Collector with Survey Pro software integration
• Rugged field design rated IP67 for dust and water resistance
• Long battery life for extended field sessions
• Quick‑mount pole and bracket for fast setup and transport

• GNSS Support: GPS L1/L2/L5, GLONASS G1/G2, Galileo E1/E5, BeiDou B1/B2
• Tilt Accuracy: ± 2 cm at 30° tilt
• RTK Range: Up to 50 km line‑of‑sight
• Data Link: Cellular, Wi‑Fi, Bluetooth®
• Environmental Rating: IP67 dust/waterproof
• Operating Temp.: −30 °C to +65 °C
• Power Supply: Internal Li‑ion battery (> 10 h operation)

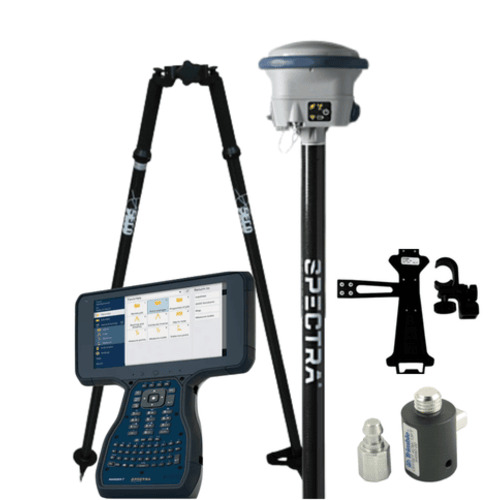

Package Contains:

*Packages can be tailored to your project requirements*

• (1) Spectra Geospatial GNSS Receivers (SP100 No Radio) - SP100-111-00
• (1) Spectra Geospatial SP100 Configuration Level - Rover / Network Rover Mode Termed (1 Year) - SP100-ROV-T
• (1) Spectra Geospatial Ranger 7 V2 Data Collector, HARDWARE ONLY (QWERTY, Americas/EU WWAN) - RG72-002-001
• (1) Spectra Geospatial Origin GNSS - Perpetual - OR-GNSS-P
• (1) Spectra Geospatial Ranger 7 Pole Mount - 121349-01-2
• (1) Spectra Geospatial 2.0m Carbon Fiber Range Pole - 88400-01-SPN
• (1) Spectra Geospatial Quick Lock Adapter for GNSS Receiver - 84690-00-GEO
• (1) Seco Thumb-Release Carbon Fiber BiPod - 5219-03
