Spectra Precision 24X / Air Damped Autolevel Package w/ Tenths Rod and Tripod - AL24A-1

Product Code: ET16846
Spectra Precision 24X / Air Damped Autolevel Package w/ Tenths Rod and Tripod - AL24A-1
Spectra Precision 24X / Air Damped Autolevel Package w/ Tenths Rod and Tripod - AL24A-1
Condition: New
  • Usually ships off dock within:14 to 21 Business Days
Your Price $313.99
(You Save 35%)
List Price $484.00

Accepted Payment Types

Free Shipping

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description
More Information
Reviews
Help

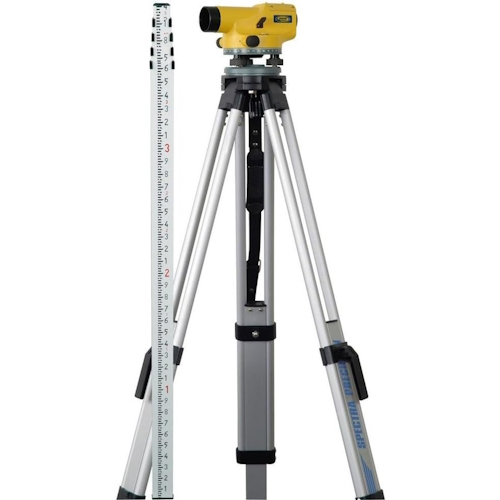

Spectra Precision 24X / Air Damped Autolevel Package w/ Tenths Rod and Tripod

Model Number: AL24A-1

Features:
  • The Spectra Precision 24X / Air Damped Autolevel Package w/ Tenths Rod and Tripod is a high-quality instrument that can deliver precise elevation control and alignment tasks, such as general building construction, cut and fill measurements, area leveling, and more.
  • Choice of Magnification
    • 20x, 24x, 28x or 32x magnifications suited to various applications.
  • Choice of Magnetic or Air Damped
    • Magnetic compensators are ideally suited for use in high-vibration areas. Air-damped compensators are best suited to achieve higher accuracy at longer distances.
  • Superior Optics
    • Bright, sharp images even in low light conditions.
  • Continuous Horizontal Tangent Drives
    • Double-sided, continuous horizontal tangent drives allow smooth, easy aligning to the target; right or left-hand use.
  • Stadia Lines
    • Stadia lines for simple distance measurement - adds versatility to the instrument.
  • Angle Measurement
    • Horizontal scale directly below the eyepiece makes angle measurement quick and convenient
  • Water Resistant Construction
    • Built for use in harsh construction environments.
  • Built-in Bubble Mirror
    • Easy to see circular bubble for quicker setup and leveling.
  • Metal Housings
    • Rugged metal housings provide increased durability.
  • Hard-shell Carrying Case
    • Protects the instrument when not in use
User Benefits:
  • Multiple magnifications and compensation methods to fit all jobsite conditions
  • Quick, easy setup and adjustment with built-in bubble mirror and continuous horizontal tangent drives
  • Built-in sighting scope for quick sighting to grade rods
  • Complete packages available with tripods and grade rods
  • Hard-shelled carrying case with plumb bob, toolkit, rain hood
Applications:
  • General Construction
    • Leveling concrete forms and footers
    • Vertical alignment such as anchor bolt and form alignment
  • Machine Guidance Compatible
    • Dual slope grading and steep slope excavating
    • Slope work for sports fields, tennis courts, driveways, parking garages, ramps
  • Interior
    • Layout of walls
    • Installation of drop ceilings
Specifications:
  • Includes:
    • Tripod: No
    • Rod: No
  • Magnification: 24x
  • Accuracy: ±2.0 mm (0.08 in)*
  • Aperture: 30 mm (1.2 in)
  • Shortest Focus: 0.6 m (1.97 ft)
  • Compensator: Air dampened
  • Telescope: Aperture 30mm (1.2 in.)
    • Telescope image: Erect
    • Field of view angle: 1⁰20'
    • Shortest focus distance: 0.60m (1.97 ft.)
    • Stadia constant: 100
    • Addition constant: 0
  • Dimensions (L x W x H):
    • Instrument: 103 x 190 x 135mm (5.2 x 7.5 x 5.3 in.)
    • Case: 170 x 280 x 190mm (6.7 x 11 x 7.5 in.)
  • Weight:
    • Instrument: 1.6 kg (3.5 lb)
    • Case: 1.25kg (2.75 lb)
*Note: Standard deviation according to DIN 18723 on one kilometer of double leveling
  • MPN: AL24A-1
  • UPC: 692284007938
