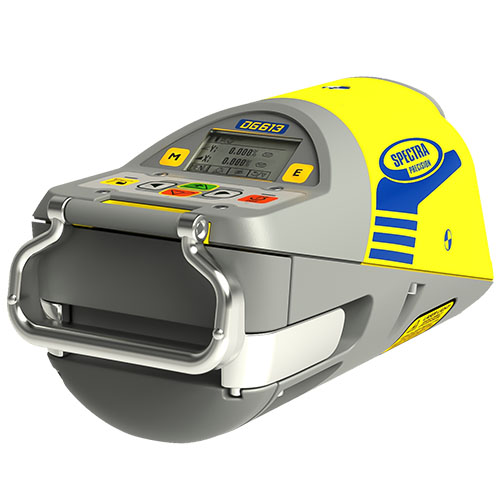

Spectra Precision DG613 Pipe Laser

Model Number: DG613

Features:

Compact and Powerful.
Self-leveling range of -12% to +40% over the entire grade range
The DG613 works over a distance of 150m (500ft) providing full operation in a single set-up between manholes.
The Spectra Precision® DG613 Pipe Laser is built for efficiency, accuracy and reliability when laying pipes.
The length of the DG613 has been reduced to make it easier to set up the lasers into tight inverts in the manhole.
Compact length allows easy set-up even in tight inverts
Large, bright, graphical user interface makes the screen easier to see and use when in or out of the pipe.
The same graphical user interface can be seen on the remote – what you see on the laser you see on the remote.
Cross axis compensation provides a quicker more accurate set-up as the laser does not have to be level in the pipe – place it in the pipe, it levels, you work.
Bright visible beam works up to 150 m (500 ft)
IP68 protection (dust and waterproof)
RC803 remote works via radio 130 m (430 ft) or infra-red 150 m (500 ft) for both “over-the-top” set-up and in the pipe/trench set-up.
The DG613 has advanced functions that make setting up and using it easy and accurate

Applications:

Specifications:

Grade range: -12% to +40%
Self-leveling range: Complete grade range (no rough leveling required) also automatic compensated in the cross axis
Line range: 20° ±1°
Line center: Yes
Menu with variable settings: Yes
Line set/check / Line alert: Yes
Accuracy: ± 1/16 in @ 100 ft, (1.5 mm/30 m); 10”
Temperature compensation: Yes
Operating range: 500 ft (150 m)
Spot Align, Spot Match,Spot Lok, Spot Search with SF803: No
ST802/ST805 Transporter: No
Color of Laser Beam: DG613 - Red
Waterproof: IP68 - Continuous submersion at 10 ft (3 m)
Laser classification / output: 3A/3R / 4.5–5 mW, optional 2 / <1 mW
Weight: 8.8 lb (3.98 kg)
Length x Diameter: 9.8 in (25 cm) x 5.3 in (13,5 cm)
Battery type and life: NiMH / 40 hrs (DG613G: 30 hrs) with daily setup at 20° C
Battery pack: Sealed (NiMH), Sealed removable (alkaline)
Warranty: 5 Years
Wireless remote specifications
Functionality: RC803 -Radio-/IR-Remote Control offers all Laser functions
Through the pipe range: 500 ft (150 m)
Front / Over the top range: 425 ft (130 m)

Components:
