Spectra Precision DG813 Red Beam Pipe Laser, Standard Package - DG813

Product Code: ET16752
Spectra Precision DG813 Laser, 1248 Trivate Plate 8 inch (200mm), RC803, SF803, ST805, 956 Target, NiMH Battery Pack and Charger - DG813
Spectra Precision DG813 Laser, 1248 Trivate Plate 8 inch (200mm), RC803, SF803, ST805, 956 Target, NiMH Battery Pack and Charger - DG813
Condition: New
  • Usually ships off dock within:14 to 21 Business Days
Your Price $4,765.20
(You Save 37%)
List Price $7,524.00

Accepted Payment Types

Apply Now
Easy Financing Available
as low as $79/mo
for 60 months. Details
Free Shipping

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description
More Information
Reviews
Help

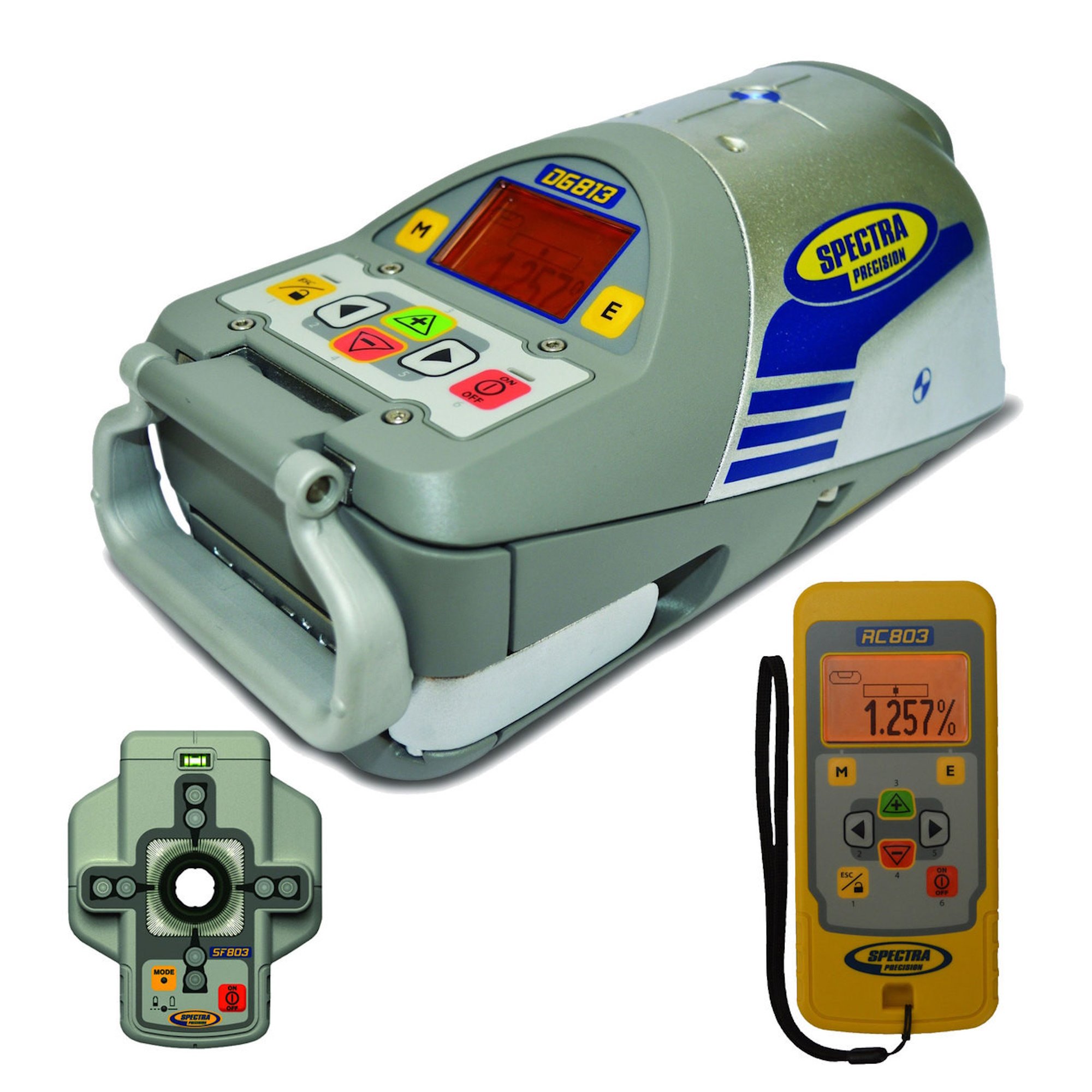

Spectra Precision DG813 Laser, 1248 Trivate Plate 8 inch (200mm), RC803, SF803, ST805, 956 Target, NiMH Battery Pack and Charger

Model Number: DG813

Features:
  • The Spectra Precision DG813 Laser, 1248 Trivate Plate 8 inch (200mm), RC803, SF803, ST805, 956 Target, NiMH Battery Pack and Charger is a pipe laser kit that includes the DG813 laser and various accessories to help you with pipe laying and alignment tasks.

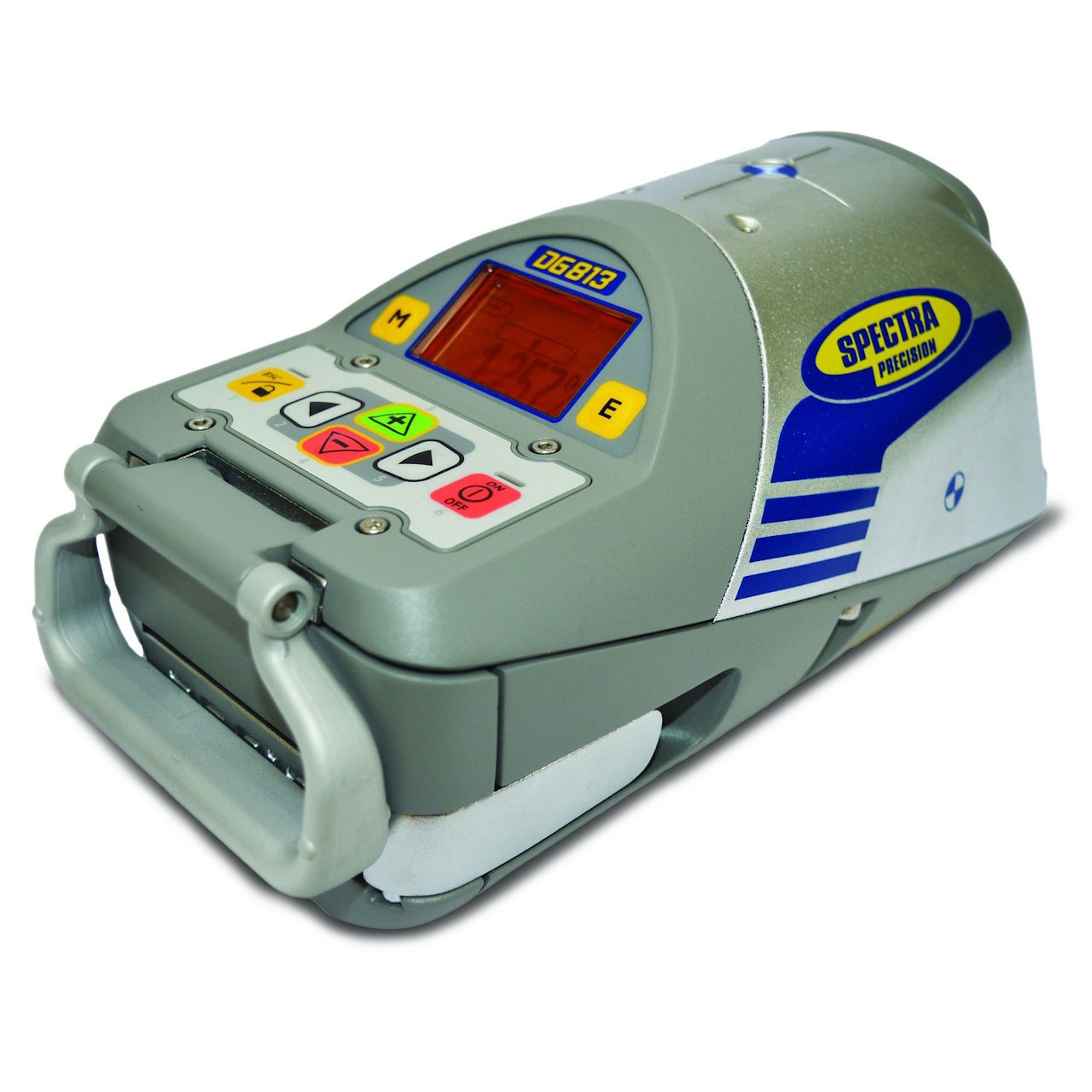

  • DG813 Pipe Laser:
    • Compact and powerful device that can project a red beam over a distance of up to 150 m (500 ft).
    • Grade range from -12% to +40% and is fully self-leveling over the entire range.
    • Has cross axis compensation, which means that the laser does not have to be level in the pipe.
    • Large graphical display on the laser and the remote control, which makes it easy to use and adjust.
    • Advanced functions make setting up and using it easy and accurate:
      • Line-Set/Check - allows the user to align the laser to the manhole quickly and easily to set direction. The beam will go up to 100% allowing easy alignment even in short trenches
      • Line Scan - provides a quick alignment to the center of the target for the second day setup
      • Line Alert- notifies the user if the set-up is disturbed eliminating costly re-work from errors
  • 1248 trivate plate:
    • Metal plate that helps you center the laser in the pipe.
    • Adjustable legs that can fit pipes with diameters from 200 mm (8 in) to 600 mm (24 in).
    • Built-in target holder for the 956G target
  • RC803 IR/Radio Remote Control:
    • Helps you to control the pipe laser from a distance.
    • Works via radio or infrared for both "over-the-top" and in-pipe setups.
    • Graphical display that shows the same information as the pipe laser
    • Buttons that allow you to adjust the grade, line, and other settings of the pipe laser
  • SF803 Spot Finder:
    • Helps you align the laser beam over long distances.
    • Detect manual and automatic beams of the DG813 laser.
    • Unique automatic functions that make the DG813 the smartest pipe laser in the industry:
      • Spot Align – automatically aligns the DG813 to the center of the Spot Finder in the pipe or to the direction of the manhole when used in a deep, short trench or "Over the Top" set up.
      • Spot Match – a great tool for checking that pipe has been installed to the correct grade or for finding the grade of existing pipe work. Can also be used to calculate the grade between manholes.
      • SpotLok – can be used to easily establish a steep slope reference or to lock the beam in a desired position for applications such as solar farms where the beam could be subject to drift.
      • Spot Search – can be used to manually locate the beam over long distances out of the trench
  • ST805 Signal Transporter:
    • Enhances the communication between the laser and the remote control or spot finder.
    • Receive and transmit radio or infrared signals over a range of up to 120 m (400 ft).
    • Ideal for working in high-vibration or wet conditions where the signals may be disturbed
  • 956 Target:
    • Helps you locate the laser beam in the pipe.
    • Has two target plates: one with a small hole for precise alignment, and one with a larger hole for rough alignment.
    • Has magnets on the back for attaching it to metal surfaces.
  • NiMH Battery Pack and Charger:
    • Can help you to power the pipe laser for up to 40 hours
Applications:
  • Installation of gravity flow sanitary pipelines
  • Storm sewer pipelines
  • Pipe jacking
  • Tunnel boring
  • Can be used in a pipe or in "Over the Top" set-ups
  • Steep slope applications at mountain area
  • Installation of solar farms
    • Specifications:


      Laser Specifications
    • Accuracy, Self-Leveling (level):1,3: ± 1.5 mm/30 m, (1/16 in @ 100 ft)
      10 arc seconds
    • Operating range1,2: up to 150 m (500 feet)
    • Laser type
      • DG813, DG613: red diode laser 600 - 680 nm
      • DG613G: green diode laser 510 - 570 nm
    • Laser class: Class 3A/3R, <5mW OR Class 2
    • Self-leveling range
      • Longitudinal: Over the entire grade range with automatic cross-axis compensation
    • Grade range: -12% to +40%
    • Spot Align search range (DG813): up to +45° (with SF803 tilted to the laser)
    • Line Range: 20° ±1°
    • Leveling indicators: LCD indications; beam and LED flash
    • Power source: 10000mAh NiMH battery pack
    • Battery life1:
      • DG813, DG613: red - 40 hours NIMH
      • DG613G: green - 30 hours NIMH
    • Temperature compensation: Yes
    • Length: 25 cm (9.8 in)
    • Diameter: 13,5 cm (5.3 in)
    • Operating temperature: -20°C to 50°C (-4°F to 122°F)
    • Storage temperature: -20°C to 70°C (-4°F to 158°F)
    • Tripod attachments: 5/8 x 11 horizontally
    • Dust and Waterproof: IP68
    • Weight: 3.98 kg (6.61 lbs)
    • Low voltage indication: LCD battery indicator
    • Low voltage disconnection: unit shuts off


      RC803 Specifications
    • Radio operating range (Over the Top)1,2,5: up to 130 m (425 ft)
    • IR operating range (front)1,2: up to 150 m (500 ft)
    • Power source: 2 x 1.5V AA alkaline batteries
    • Battery life1: 130 hours
    • Dust and Water proof: IP66
    • Weight (incl. batteries): 0.26 kg (0.57 lbs)


      SF803 Specifications
    • Operating range1,4,5: up to 150 m (500 ft)
    • Power source: 4 x 1.5V AA alkaline batteries
    • Battery life1: 130 hours
    • Dust and Water proof: IP67
    • Weight (incl. batteries and slider): 0.43 kg (0.95 lbs)


      ST805 Specifications
    • Radio operating range1,2,4,5: up to 120 m (400 ft)
    • Power source: 2 x 1.5V AA alkaline batteries
    • Battery life1: 24 hours (continuous use)
    • Dust and Water proof: IP66
    • Weight (incl. batteries): 0.3 kg (0.75 lbs)
    (1) at 21° Celsius (70° F)
    (2) under optimal atmospheric circumstances
    (3) along the axis
    (4) depending on WIFI/WLAN ambient environment
    (5) depending on product height (typ.: three feet / one meter)
    • MPN: DG813
    • UPC: 692284012116
