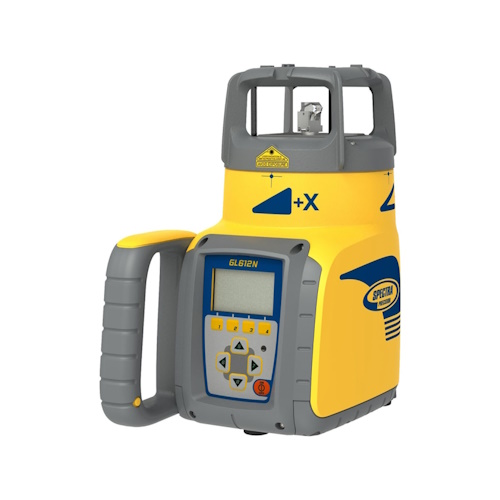

Spectra Precision GL612N Single-Slope Grade Laser w/HL760 Receiver, C70, RC602N, 105516, 10 Ah NiMH Rechargeable Batteries and Charger - GL612N

Product Code: ET16618
Spectra Precision GL612N Single-Slope Grade Laser w/HL760 Receiver, C70, RC602N, 105516, 10 Ah NiMH Rechargeable Batteries and Charger - GL612N
Condition: New
  • Usually ships off dock within:14 to 21 Business Days
Your Price $2,516.80
(You Save 20%)
List Price $3,146.00

Accepted Payment Types

Apply Now
Easy Financing Available
as low as $42/mo
for 60 months. Details

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description
More Information
Reviews
Help
Spectra Precision GL612N Single-Slope Grade Laser w/HL760 Receiver, C70, RC602N, 105516, 10 Ah NiMH Rechargeable Batteries and Charger

Model Number: GL612N

Features:
  • The Spectra Precision GL612N Single-Slope Grade Laser w/HL760 Receiver, C70, RC602N, 105516, 10 Ah NiMH Rechargeable Batteries and Charger is a single-slope grade laser that can be used for various leveling, grading, and alignment tasks in construction projects.
  • Ultimate Control of X/Y Axes
    • Fully automatic up to +/-25% grade on X/Y axes
    • Automatic Axis Features (X Axis - only GL622N/GL622IR)
      • High Precision Axis Alignment (only GL622N/GL622IR)
      • Simplified Grade Match: measures and displays the existing grade over unknown ground
      • Complete PlaneLok: automatically locks on the laser beam to an existing elevation
    • Alignment range for both axes is +/-40°
    • Fully automatic vertical leveling (not GL622IR)
    • Fingerprint function - detects only the laser beam of the paired transmitter
  • Built for Today’s Jobs
    • Withstands a 1 m (3 ft) drop onto concrete
    • Long operating range - 800 m (2.600 ft) diameter
    • Long operating radio range - 150 m (490 ft)
    • Intuitive keypad and graphic display
    • Password secured
    • Mask mode
    • Various power options
    • Automatic temperature compensation
    • Electronic leveling vibration filter
Applications:
  • General Construction
    • Leveling concrete forms and footers
    • Vertical alignment such as wall, columns and form alignment (GL612N/GL622N)
    • Dual slope grading and steep slope excavating
    • Slope work for sports fields, tennis courts, driveways, parking garages, ramps
  • Pipe and Drainage Installations
      • Over-the-Top sewer and drainage pipe installations
    • Trenching and drainage
Specifications:


    GL612N/GL622N/GL622IR Specifications
  • Leveling accuracy1,3: ± 0.5 mm/10 m, 1/16" @ 100 ft, 10 arc seconds
  • Grade accuracy1,3: ± 1.0 mm/10 m, 1/8" @ 100 ft, 20 arc seconds
  • Grade temperature drift sensitivity: ± 0,3 mm / 10 m / 1°C; 1/16" @ 310 ft. @ 1°F
  • Operating diameter1,2: appr. 800 m (2600 feet) with detector
  • Grade range (Y, X-GL622N/GL622IR): ± 25% both axes (not simultaneously)
  • Rotation: 300, 600, 750 rpm
  • Laser type: 639 nm (GL622IR: typ.830 nm)
  • Laser class : Class 2 (GL622IR: class 1)
  • Self-leveling range: appr. ± 14°
  • Leveling indicators: LCD indications and LED flashes
  • Radio range (HL760)1,2,4: up to 150 m (490 ft)
  • Power source: NiMH battery pack
  • Battery life1: 35 hours NiMH (GL622IR: 40 hours NiMH)
  • Operating temp.: -20°C to 50°C (-4°F to 122°F)
  • Storage temp.: -20°C to 70°C (-4°F to 158°F)
  • Tripod attachments: 5/8 x 11 horizontally and vertically
  • Dust and waterproof: Yes - IP67
  • Weight: 3.1 kg (6.8 lbs)
  • Low voltage indication: LCD battery indicator
  • Low voltage disconnection: unit shuts off
  • Warranty: 5 Years
RC602N Remote Control Specifications
  • Operating range1,2,4: up to 150 m (490 ft)
  • Power source: 2 x 1.5V AA alkaline batteries
  • Battery life1: 130 hours
  • Dust and waterproof: Yes - IP66
  • Weight: 0.26 kg (0.57 lbs)
HL760 Digital Readout Receiver
  • Digital readout units: mm, cm, ft, in, frac. in
  • Reception height: 127 mm (5 inches)
  • Six On-grade sensitivities:
    • Ultra Fine 0.5 mm (~1/32 in)
    • Super Fine 1 mm (~1/16 in)
    • Fine 2 mm (~1/8 in)
    • Medium 5 mm (~1/4 in)
    • Coarse 10 mm (~1/2 in)
    • Calibration Mode 0.1 mm (~1/64 in)
  • Battery life (2 x AA): 60+ hours continuous operation
  • Auto shut-off: 30 minutes/24 hours
  • Operating temp.: -20°C to 50°C (-4°F to 122°F)
  • Dust and waterproof: Yes - IP67
  • Weight: 0.27 kg (9.5 oz)
  • Warranty: 3 Years "No Excuses"
(1) at 21° Celsius (70° F)
(2) under optimal atmospheric circumstances
(3) along the axis
(4) Height of instruments 1m (e.g. with tripod)
  • MPN: GL612N
  • UPC: 692284012901
