Spectra Precision LR60 Display Receivers - (4 Options Available)

Product Code: ET14525

Condition: New

Your Price	$2,537.99
	(You Save 17%)

List Price

$3,045.00

Qty

Accepted Payment Types

Free Shipping

Select Option

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description

More Information

Reviews

Help

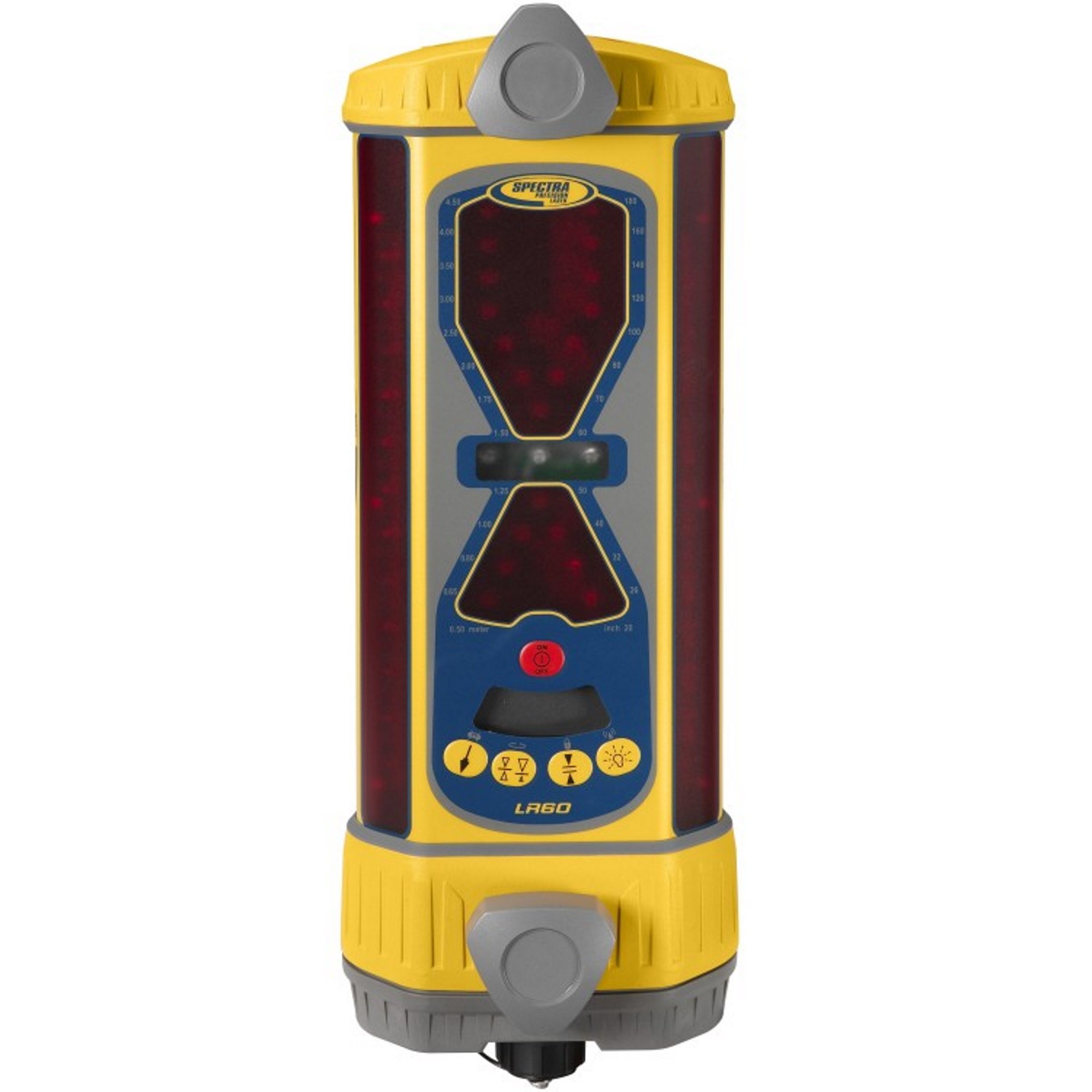

Spectra Precision LR60 Display Receivers

Available Options:

LR60: Non-Wireless w/ NiMH Batteries
LR60W: w/ NiMH Batteries and RD20 Remote Display
LR60W-2: Wireless w/ NiMH Batteries

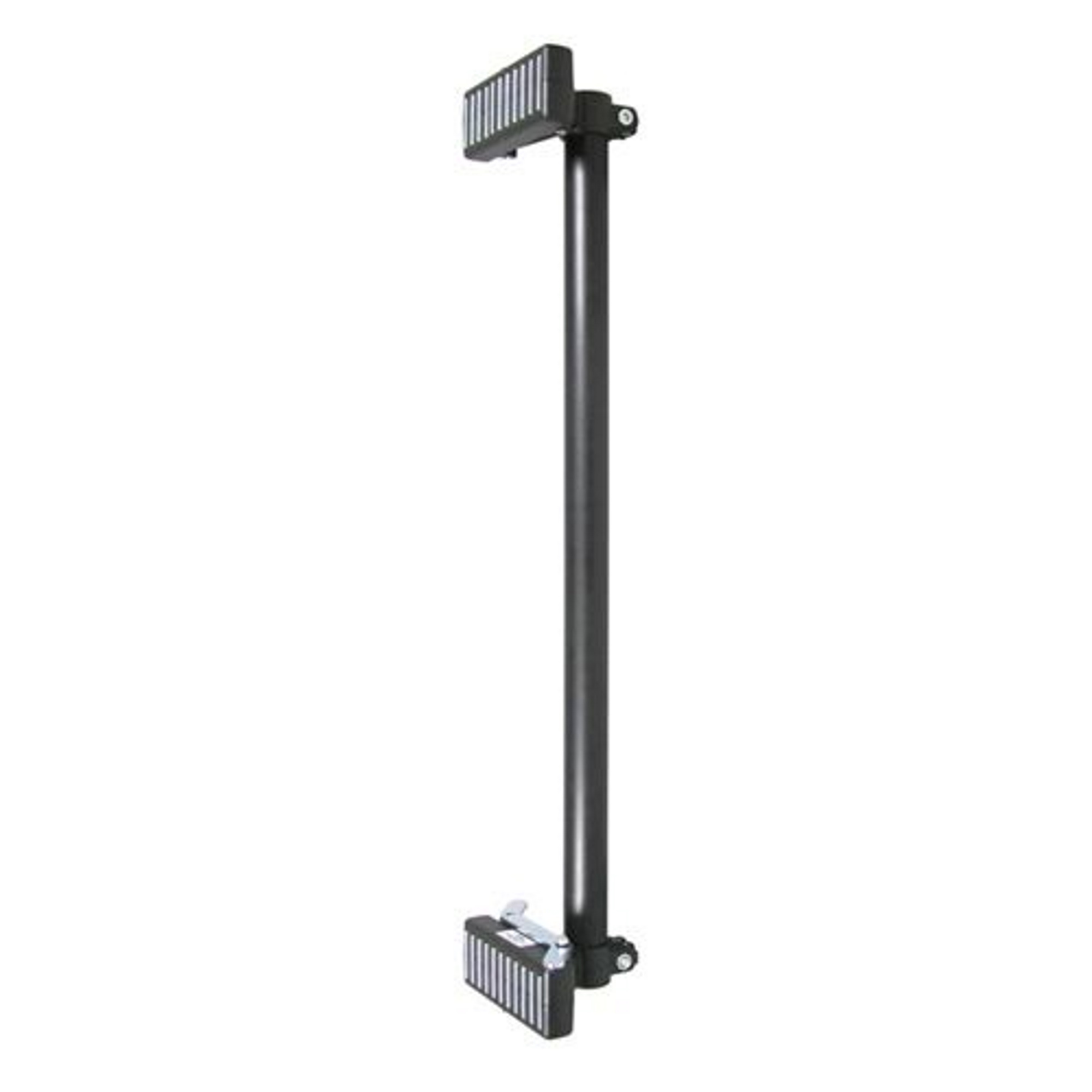

LR60-MM: Wireless w/ NiMH Batteries, MM-1 Magnetic Mount, and RD20 Remote Display

Features:

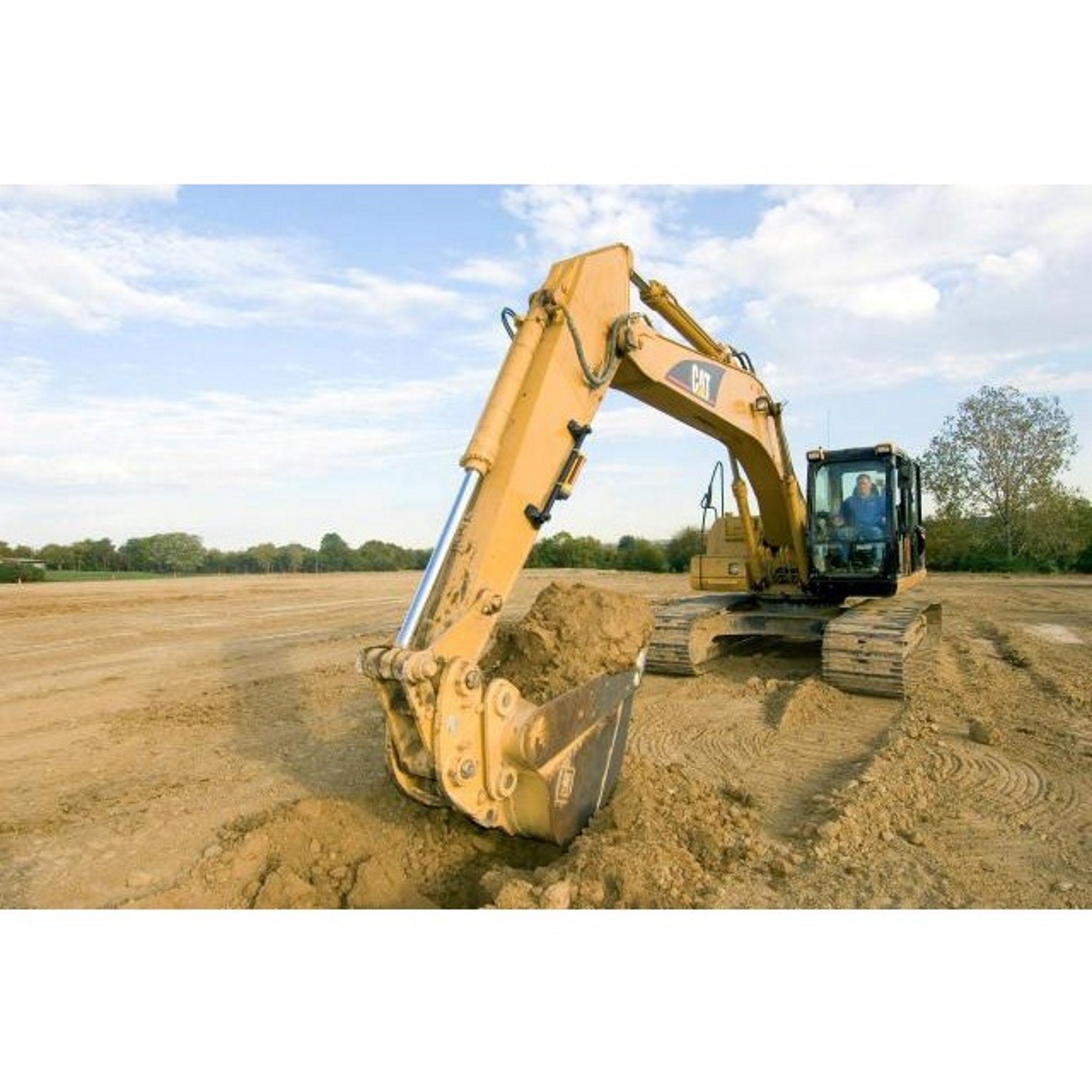

Patented Angle Compensation for Excavators automatically calculates and corrects the grade display for the dipper arm's angle.
Check grade with the dipper arm extended or retracted up to 30 degrees.
For quick and accurate grade checking, there's a built-in plumb indicator.
Large vertical reception height for use with bigger excavators.

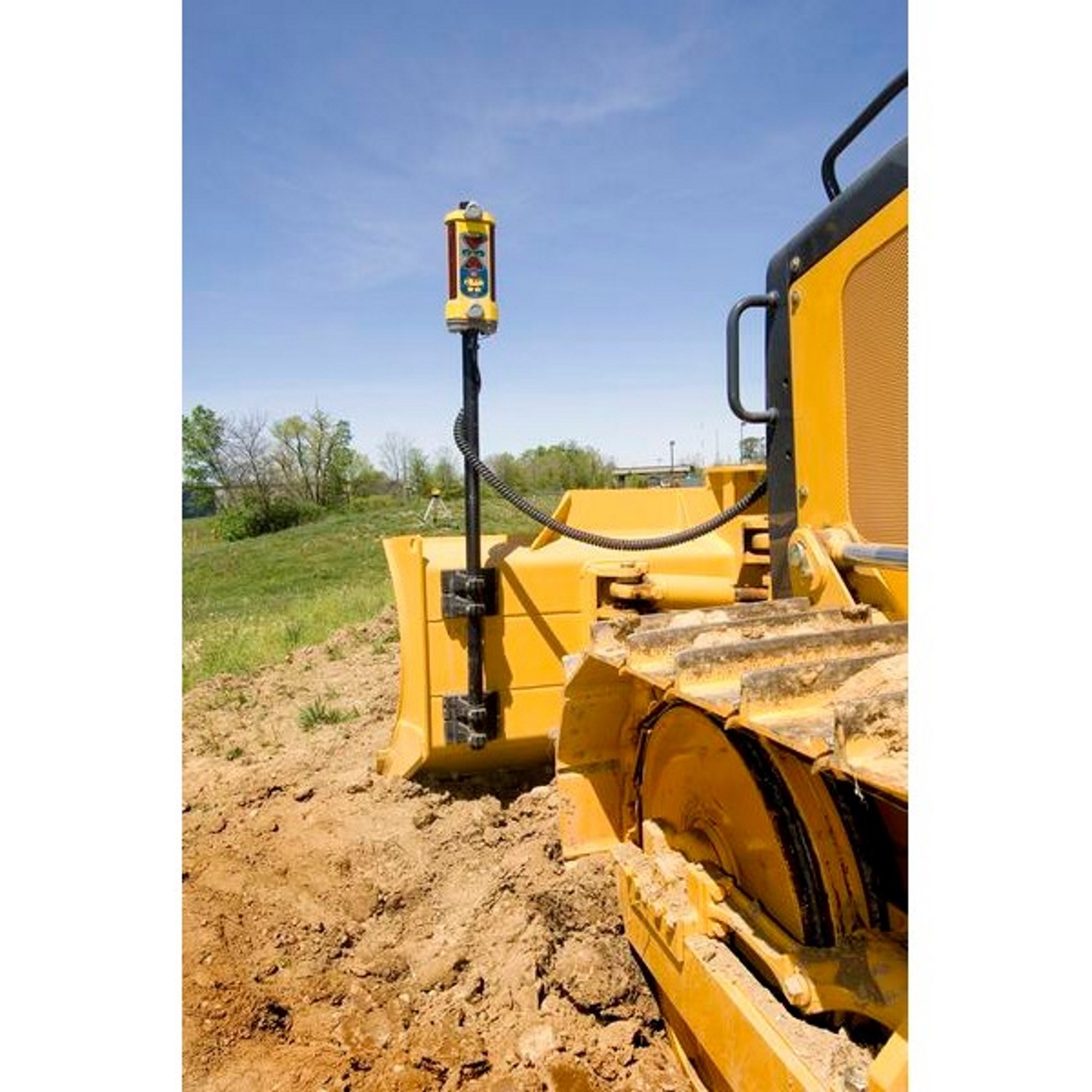

Center On-grade provides an equal amount of grade information above and below on-grade. Use on dozers, graders, scrapers, and box blades
The LR60W wirelessly connects to the RD20 in-cab display.

Specifications:

Quantity: 1
Number of Display Channels: 9-Channel Display
Accuracy: Center on grade mode (grading)
- Setup: 5 mm (0.20 in)
- Fine: 10 mm (0.40 in)
- Standard: 20 mm (0.80 in)
- Wide: 40 mm (1.6 in)
Accuracy: offset on grade mode (excavating)
- Setup: 6 mm (0.25 in)
- Fine: 12 mm (0.50 in)
- Standard: 25 mm (1.0 in)
- Wide: 50 mm (2.0 in)
ACE-Angle Compensation Mode:
- Fine: 12 mm (0.50 in)
- Standard: 25 mm (1.0 in)
Blade-Tilt Accuracy: N/A
Plumb-Swing Accuracy:
- Standard: (12 mm 0.5 in)
- ACE Mode: 25 mm (1.0 in)
Vertical Reception: 222 mm (8.75 in)
LED Battery Life:
- Alkaline Bright/Dim: 45 / 75 hrs
- Wireless with remote on: 35 / 25 hrs
- Ni-MH Bright/Dim: 40 / 50 hrs
- Wireless with remote on: 25 / 20 hrs
Receiver Warranty: 2 Years
