Spectra Precision UL633N, RC603N, 2 x HL760 Receivers & C70 and 105516, SF601, NiMH Rechargeable Batteries and Charger, Carrying Case

Model Number: UL633N

Features:

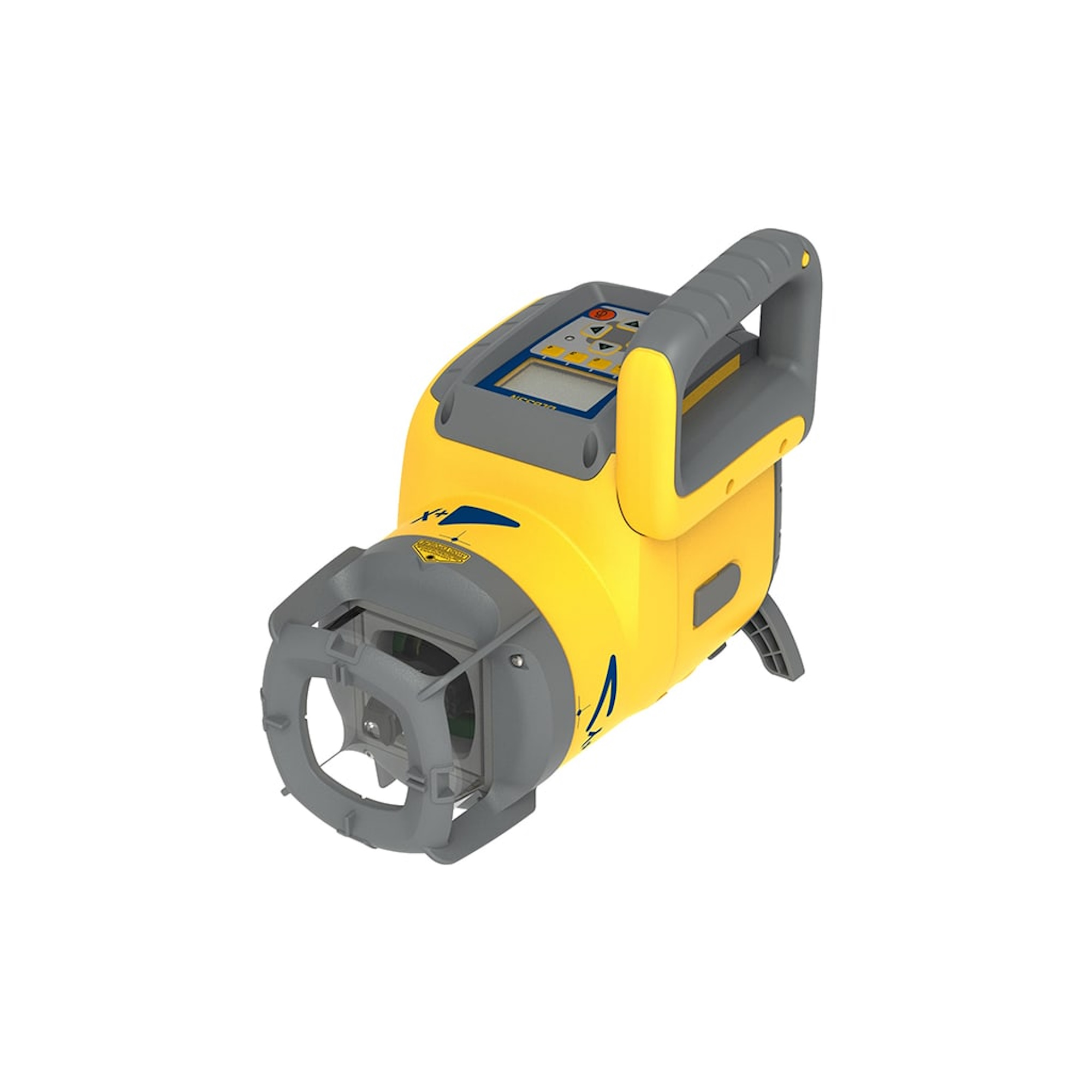

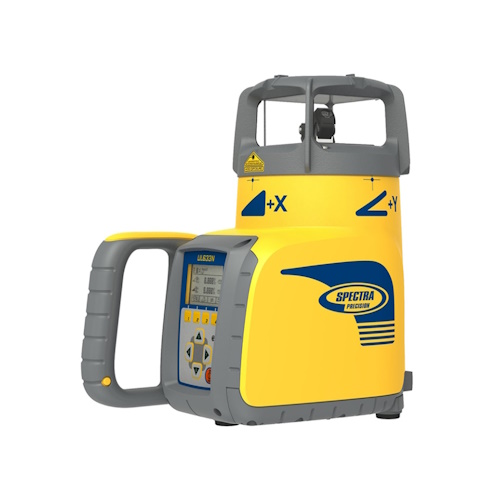

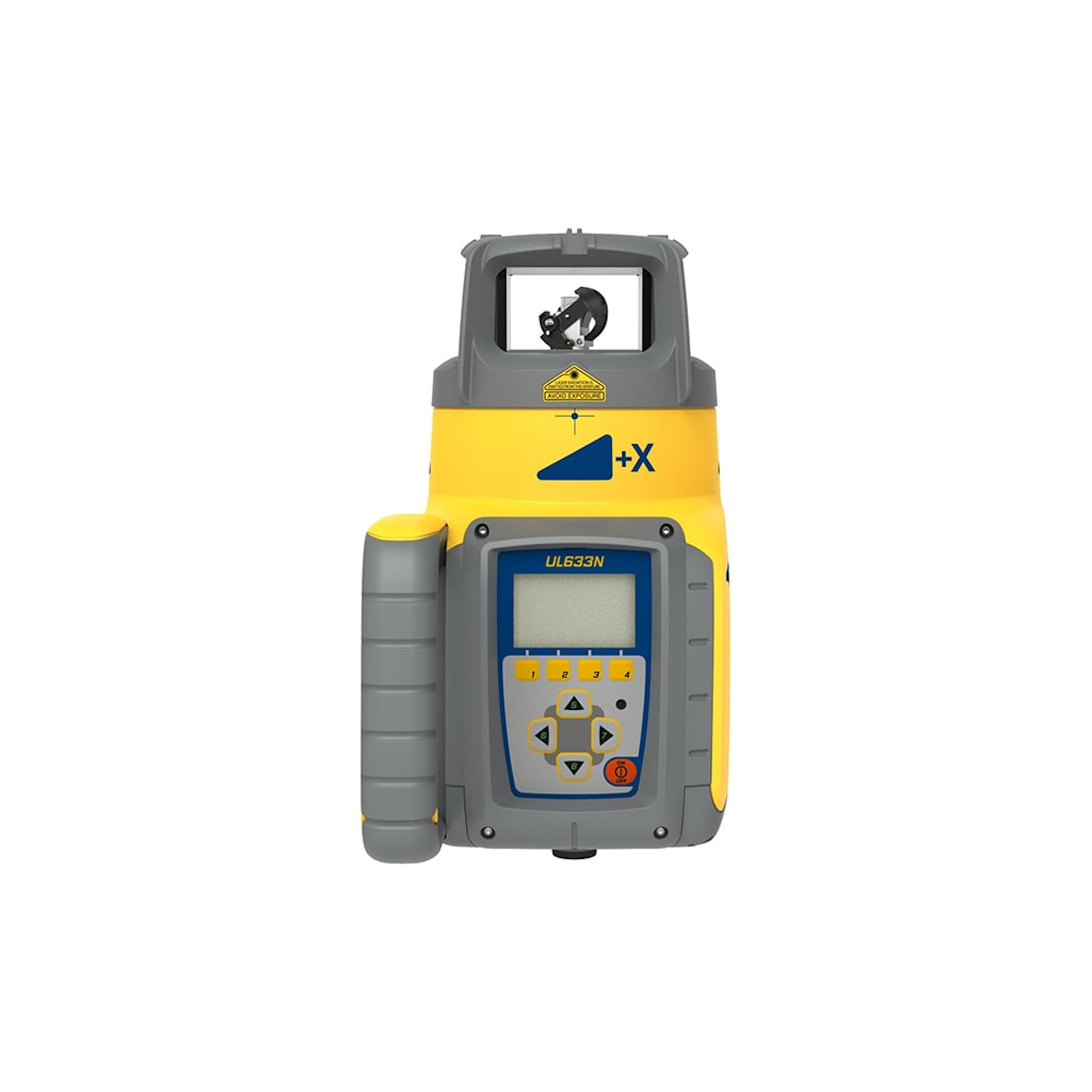

The Spectra Precision UL633N, RC603N, 2 x HL760 Receivers & C70 and 105516, SF601, NiMH Rechargeable Batteries and Charger, Carrying Case is a construction laser that can control all three axes (X/Y/Z) simultaneously, making it suitable for various leveling, grading, and alignment tasks.
Uses radio and infrared communication and fan beam technology to achieve high accuracy and reliability
Total Control of X/Y Axes
- Unlimited Automatic Dual Axis Features
  - High Precision Axis Alignments
  - Simplified Grade Match: measures and displays the existing grade over unknown ground
  - Complete PlaneLok: automatically locks on the laser beam to an existing elevation
- All functions flexible from 10 to 170 degrees
- Horizontal Angle Measurement capability
Total Control of Z Axis
- Automatic Detection of plumb beam
  - Spot Align: aligns the plumb beam to a desired position
  - Spot Match: displays the measured Z-axis grade value
  - SpotLok: locks automatically the plumb beam to the SF601 center point
- Manual Detection of plumb beam
  - Spot Search
- Complete Cross Axis Compensation
Versatile Communication Links
- Radio (2 radio channels)
- IR
Built for Today’s Jobs
- Fully automatic up to +/-25% grade on X/Y/Z axes
- Withstands a 1 m (3 ft) drop onto concrete
- Long operating range - 800 m (2.600 ft) diameter
- Intuitive keypad
- Mask mode
- Various power options
- Automatic temperature compensation
- Electronic leveling vibration filter

Applications:

General Construction
- Leveling concrete forms and footers
- Vertical alignment such as anchor bolt and form alignment

Machine Guidance Compatible
- Dual slope grading and steep slope excavating
- Slope work for sports fields, tennis courts, driveways, parking garages, ramps

Interior
- Layout of walls
- Installation of drop ceilings

Specifications:

UL633 Specifications

Leveling accuracy1,3: ± 0.5 mm/10 m, 1/16" @ 100 ft, 10 arc seconds
Grade accuracy1,3: ± 1.0 mm/10 m, 1/8" @ 100 ft, 20 arc seconds
Operating diameter1,2: appr. 800 m (2600 feet) with detector
Grade range (Y;X): ± 25% both axes (not simultaneously)
Grade range (Z): ± 25%
Rotation: 0 - 900 rpm
Scan mode: 5 preset sizes + variable adjustment
Laser type: red diode laser 650 nm
Laser class : Class 3A/3R, <5mW
Self-leveling range: appr. ± 14°
Leveling indicators: LCD indications and LED flashes
Radio range (HL750): up to 80 m (260 ft)
Power source: NiMH battery pack
Battery life1: 35 hours NiMH; 40 hours alkaline
Operating temp.: -20°C to 50°C (-4°F to 122°F)
Storage temp.: -20°C to 70°C (-4°F to 158°F)
Tripod attachments: 5/8 x 11 horizontally and vertically
Dust and waterproof: Yes - IP67
Weight: 3.1 kg (6.8 lbs)
Low voltage indication: LCD battery indicator
Low voltage disconnection: unit shuts off
Warranty: 5 Years

RC603 Remote Control Specifications

Operating range1,3: up to 100 m (330 ft)
Power source: 2 x 1.5V AA alkaline batteries
Battery life1: 130 hours
Dust and waterproof: Yes - IP66
Weight: 0.26 kg (0.57 lbs)

Spot Finder SF601 Specifications

Operating range1,4: up to 80 m (260 ft)
Power source: 4 x 1.5V AA alkaline batteries
Battery life1: 30 hours
Dust and waterproof: Yes - IP67
Weight: 0.43 kg (0.95 lbs)

HL750 Digital Readout Receiver Specifications

Digital readout units: mm, cm, ft, in, frac. in
Reception height: 127 mm (5 inches)
Six On-grade sensitivities:

- Ultra Fine 0.5 mm (~1/32 in)
- Super Fine 1 mm (~1/16 in)
- Fine 2 mm (~1/8 in)
- Medium 5 mm (~1/4 in)
- Coarse 10 mm (~1/2 in)
- Calibration Mode 0.1 mm (~1/64 in)

Battery life (2 x AA): 60+ hours continuous operation
Auto shut-off: 30 minutes/24 hours
Operating temp.: -20°C to 50°C (-4°F to 122°F)
Drop performance: 3 m (10 ft)
Dust and waterproof: Yes - IP67
Weight: 0.27 kg (9.5 oz)
Warranty: 3 Years "No Excuses"

(1) at 21° Celsius (70° F)
(2) under optimal atmospheric circumstances
(3) along the axis
(4) depending on sun light conditions
