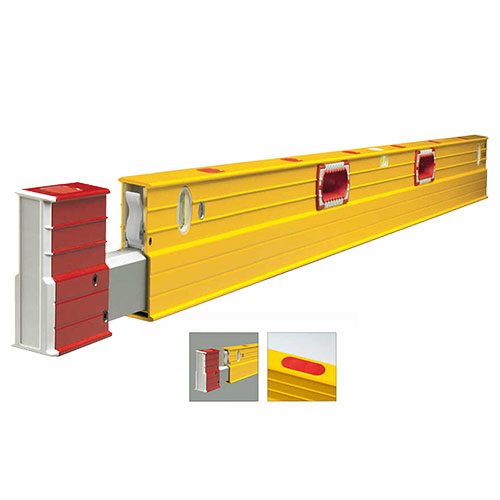

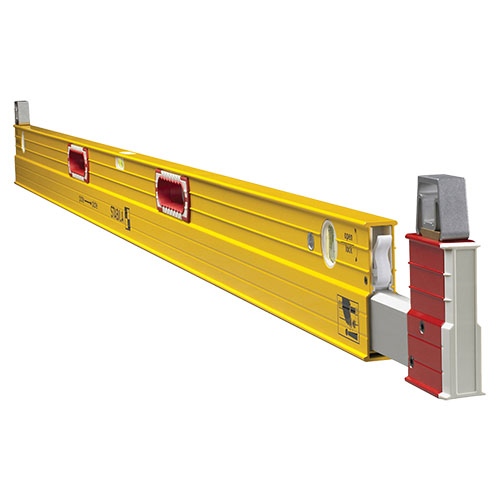

Stabila Type 106T Extendable Plate Level w/ Removable Standoffs - (2 Sizes Available)

• 35610: 72"
• 35712: 84"

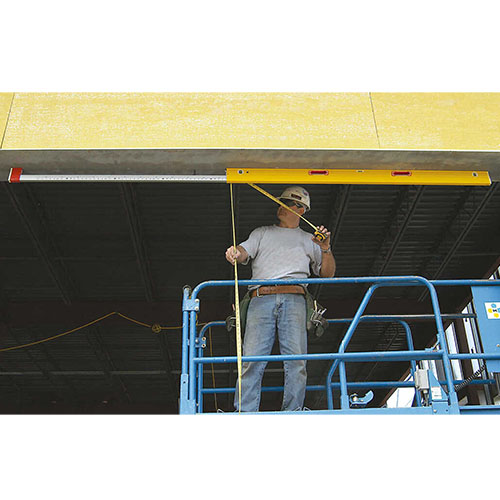

STABILA Plate Levels are designed for precisely positioning top and bottom wall plates plumb quickly. In addition, they are the best installation tools for tall doors, floor to ceiling sliding glass windows and high risk custom kitchen cabinet installations.

• STABILA Type 106T Plate Levels
• These levels extend so tall walls, tall doors and big windows can be installed properly and quickly.
• Strong reinforced frame.
• Measuring surfaces are not machined.
• Two hand grips.
• Steel hang hole for storage.
• 6 sided keyed extension rail delivers smooth and rigid operation.
• Vial accuracy guaranteed for life.
• Plumb vial always at eye level .
• 2 plumb vials, 1 level vial.
• Opposite side is a measuring surface and straight edge.
• Positioning scale on both sides of the extension rail for FAST set-ups: : 9ft 1in, 10ft 1in, etc.

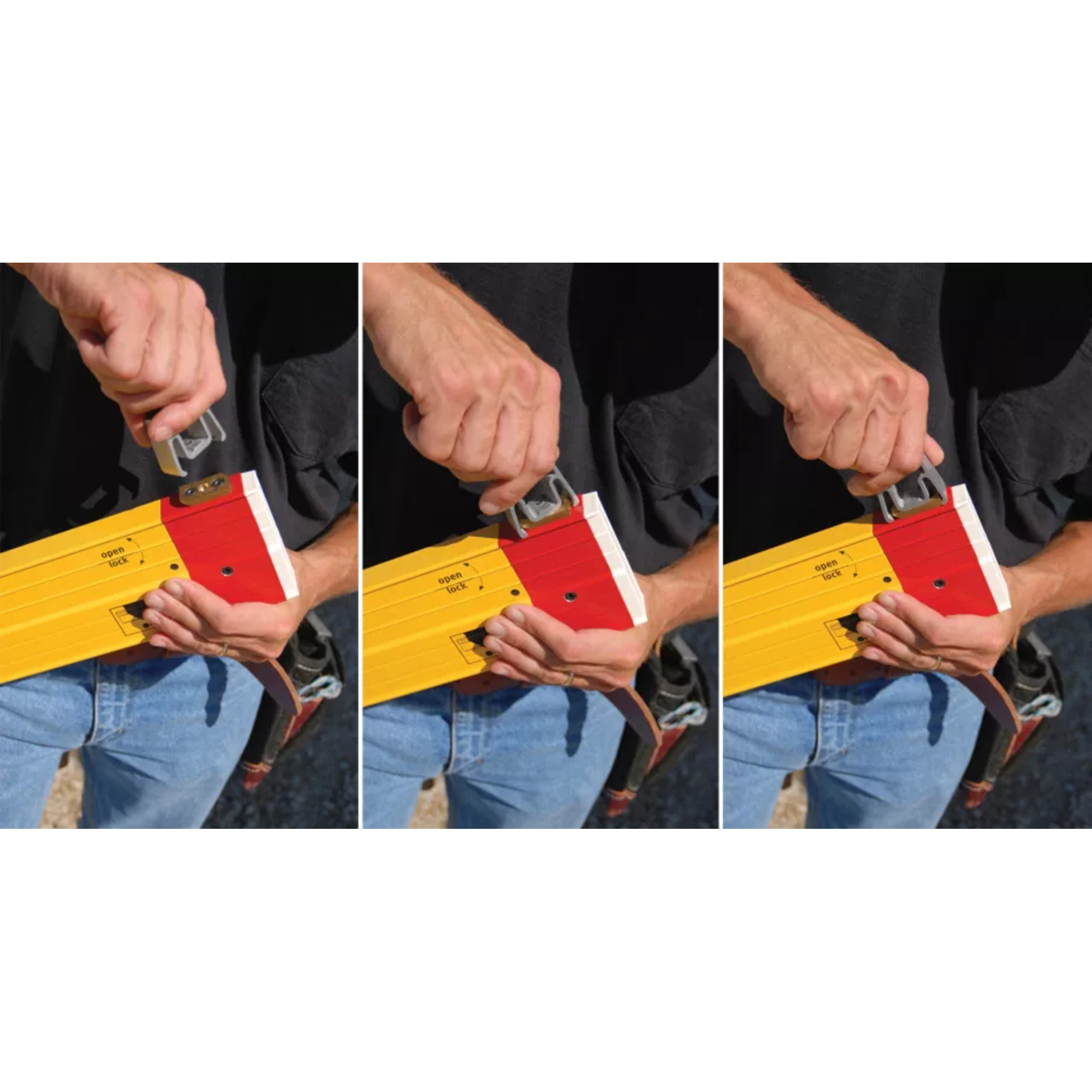

• The removable 1-5/8in stand-offs included deliver accurate plate to plate measurements around braces. They simply twist-on.
• Also available in magnetic - without stand-offs.
• Carrying cases, replacement endcaps are available as optional accessories.
• Order the maintenance kit cat. number 33000 to keep the extension system operating like new

• Measurement accuracy in normal position ±: 1/32in @ 72in
• Measurement accuracy in reverse position ±: 3/64in @ 72in
• Measurement accuracy in extended normal position ±: 1/8in @ 120in
• Number of measuring surfaces: 2
• Profile: Reinforced 2 chamber profile
• End caps: Standard
