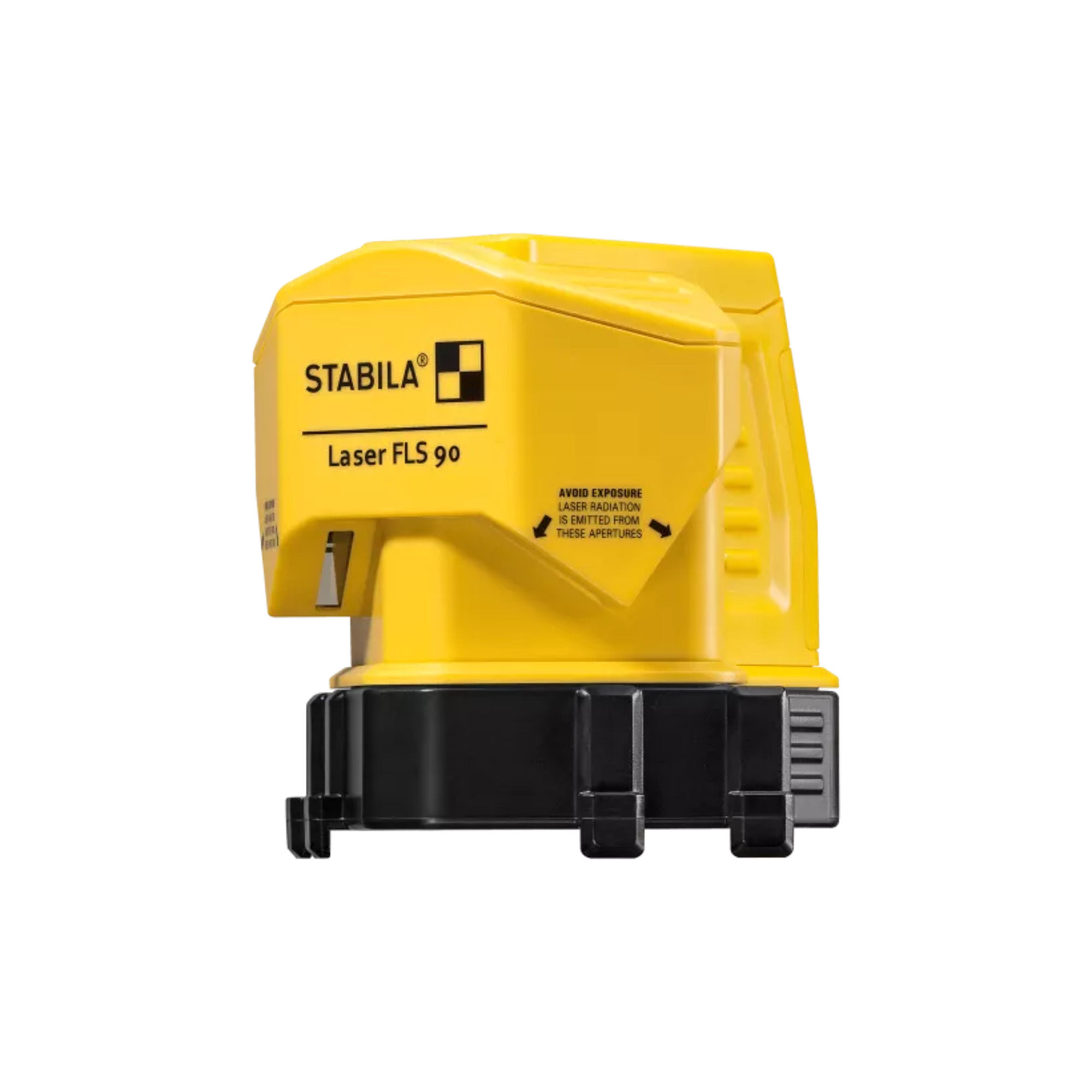

Stabila FLS 90 Floor Line Laser - 04490

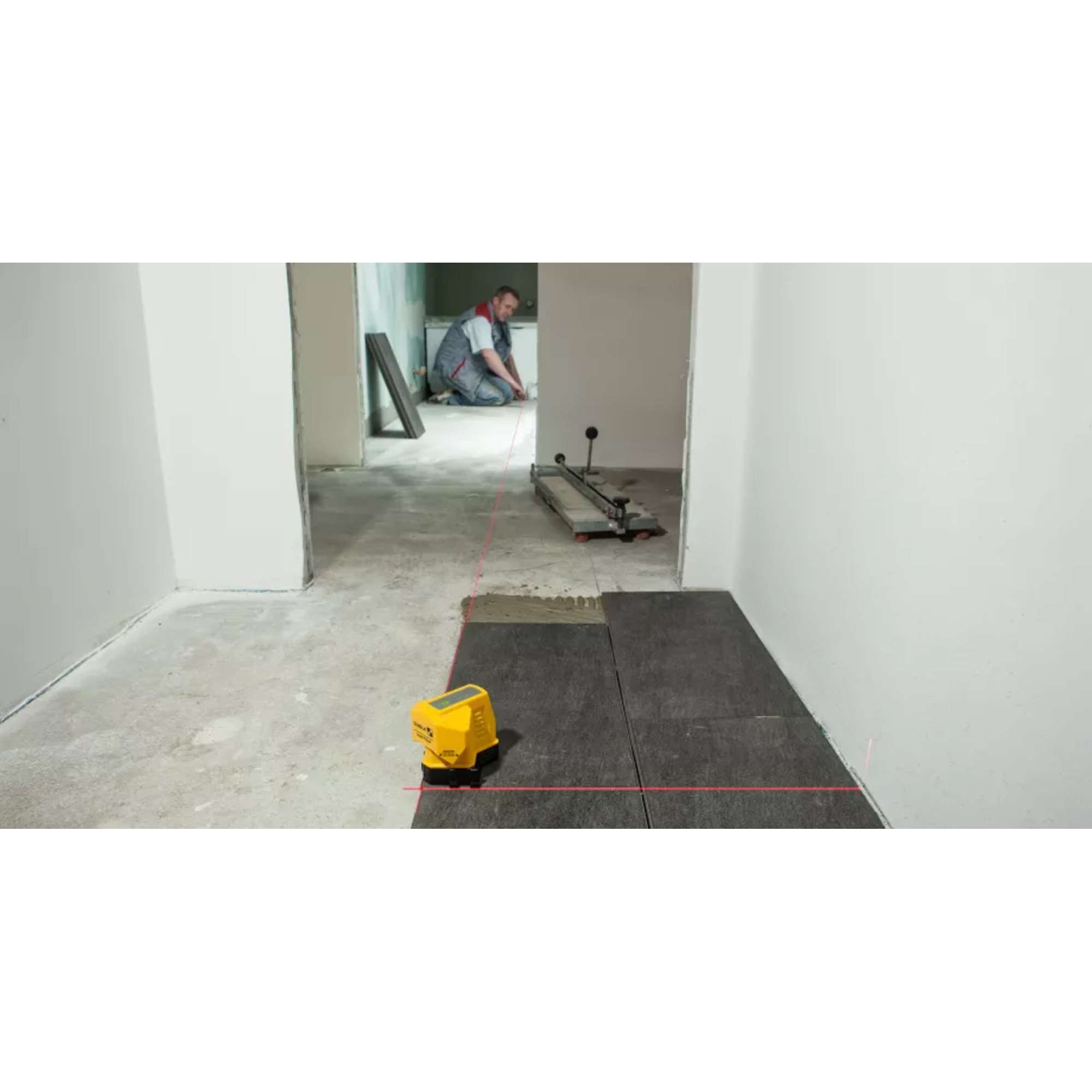

The Stabila FLS 90 is a handy floor line laser designed for precise and efficient layout work. It projects a 90° angle directly on the floor, enabling particularly accurate and time-saving alignment along laser lines. With its one-button operation, the laser can be switched on and used immediately, even with one hand. Equipped with STABILA floor line optics, the FLS 90 delivers razor-sharp laser lines with optimum visibility up to 15 m (50 ft). The beams are focused and directed along the floor surface using patented technology, ensuring maximum clarity for layout tasks.

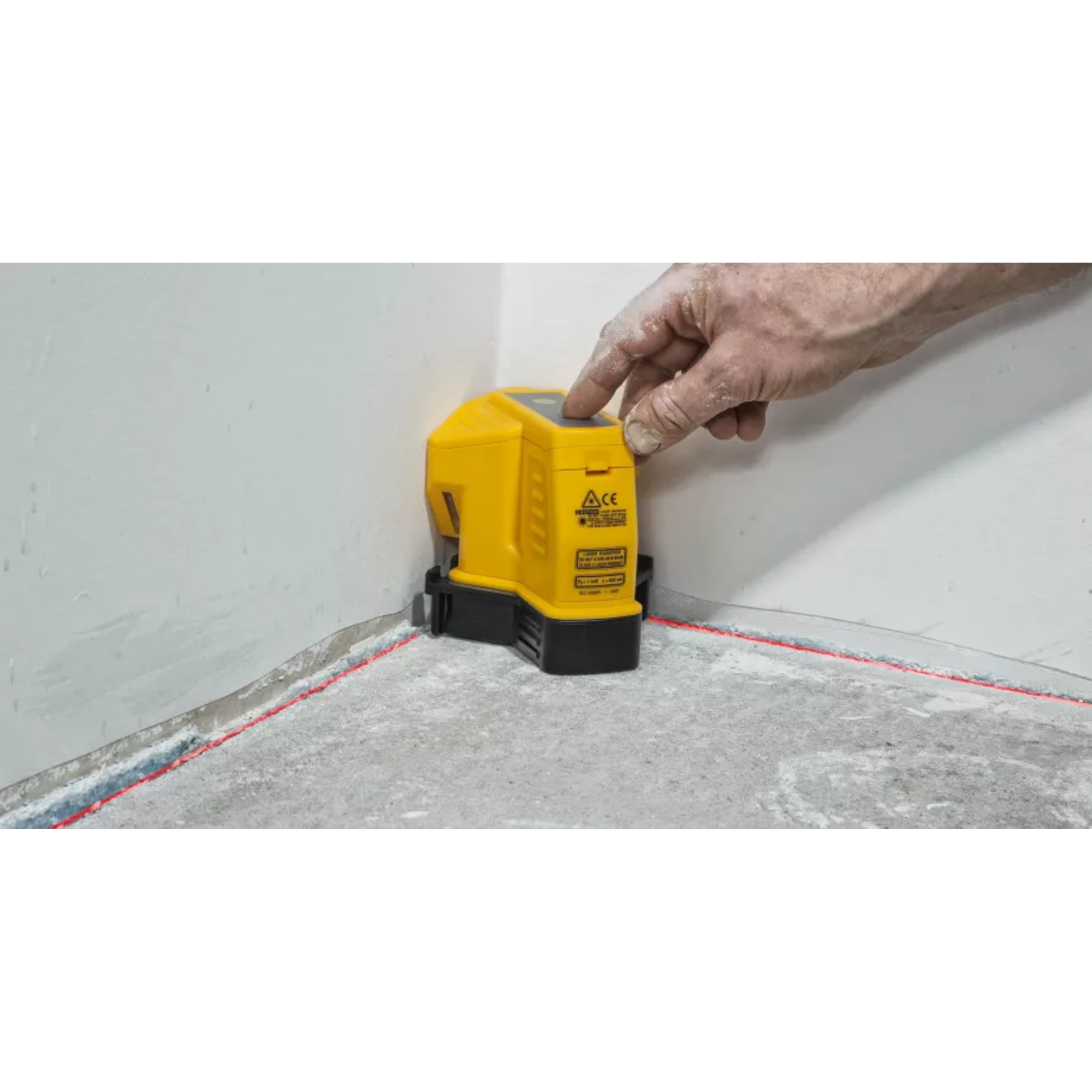

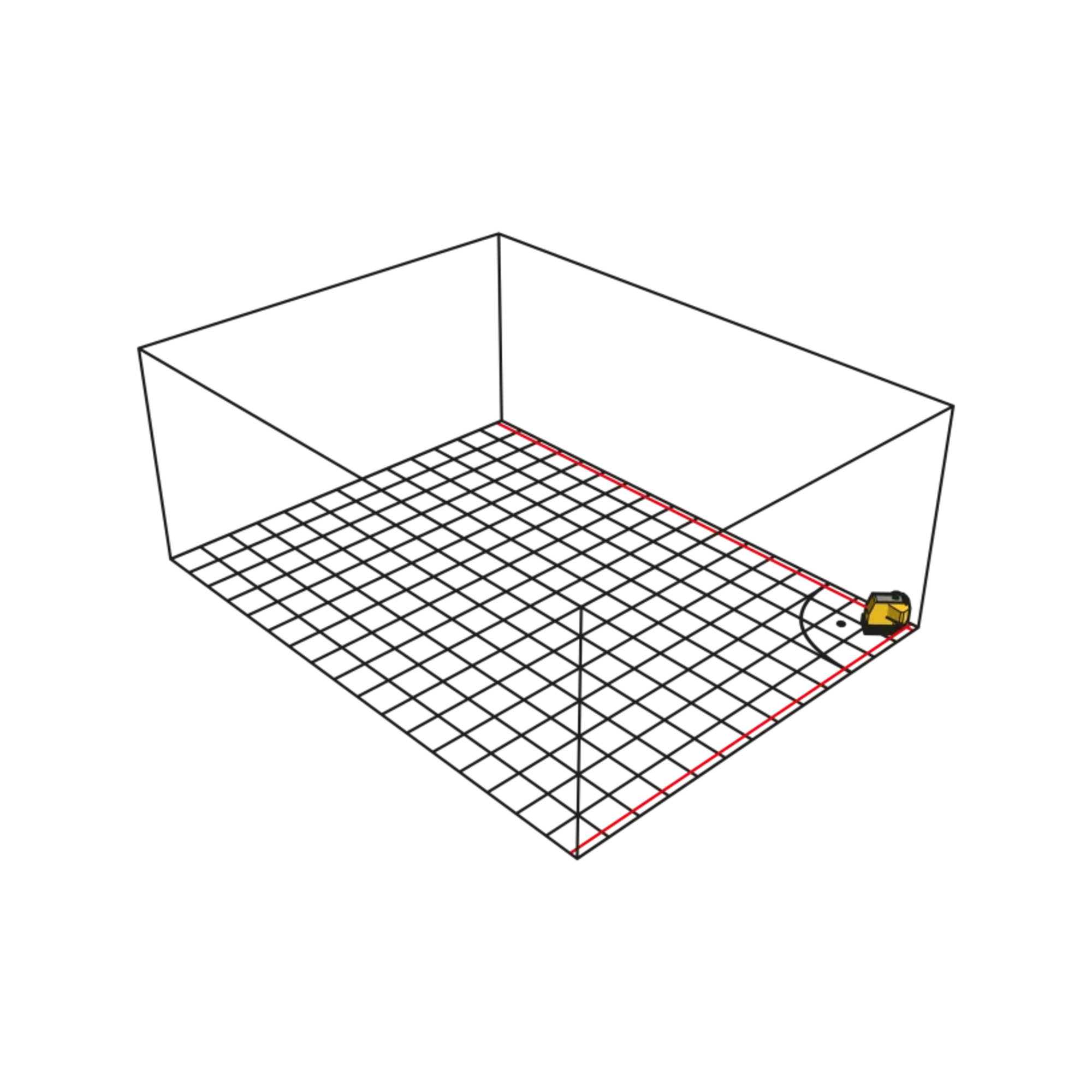

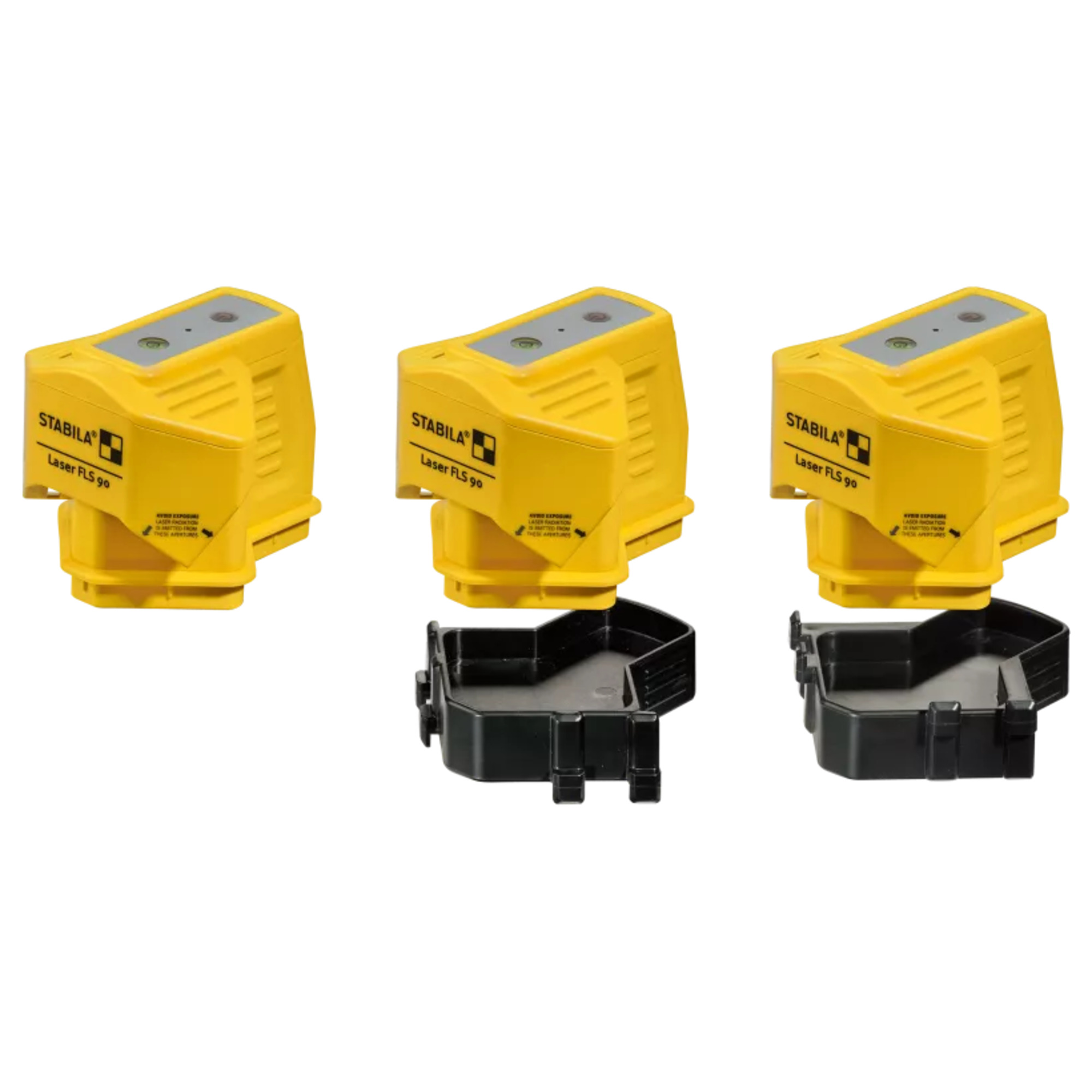

Its innovative dual-purpose base with positioning claws makes placement on flat surfaces and tiles simple, while the laser can also be positioned in corners to check room squareness—instantly revealing any irregularities for correction during layout work. For extended applications, the pulse-modulated laser lines allow use with an optional line receiver, ensuring exact measurements over larger distances. Built for durability, the FLS 90 carries a protection class IP54, safeguarding against dust and water spray. For convenience, it comes with a belt pouch for safe storage and easy transport.

• 50ft square, solid lines.
• Compact housing so you can position the tool directly in corners.
• Laser delivers 50ft bright, crisp lines that are square.
• Can be used with a line receiver to extend the range up to 400ft+. See catalog number 07335.

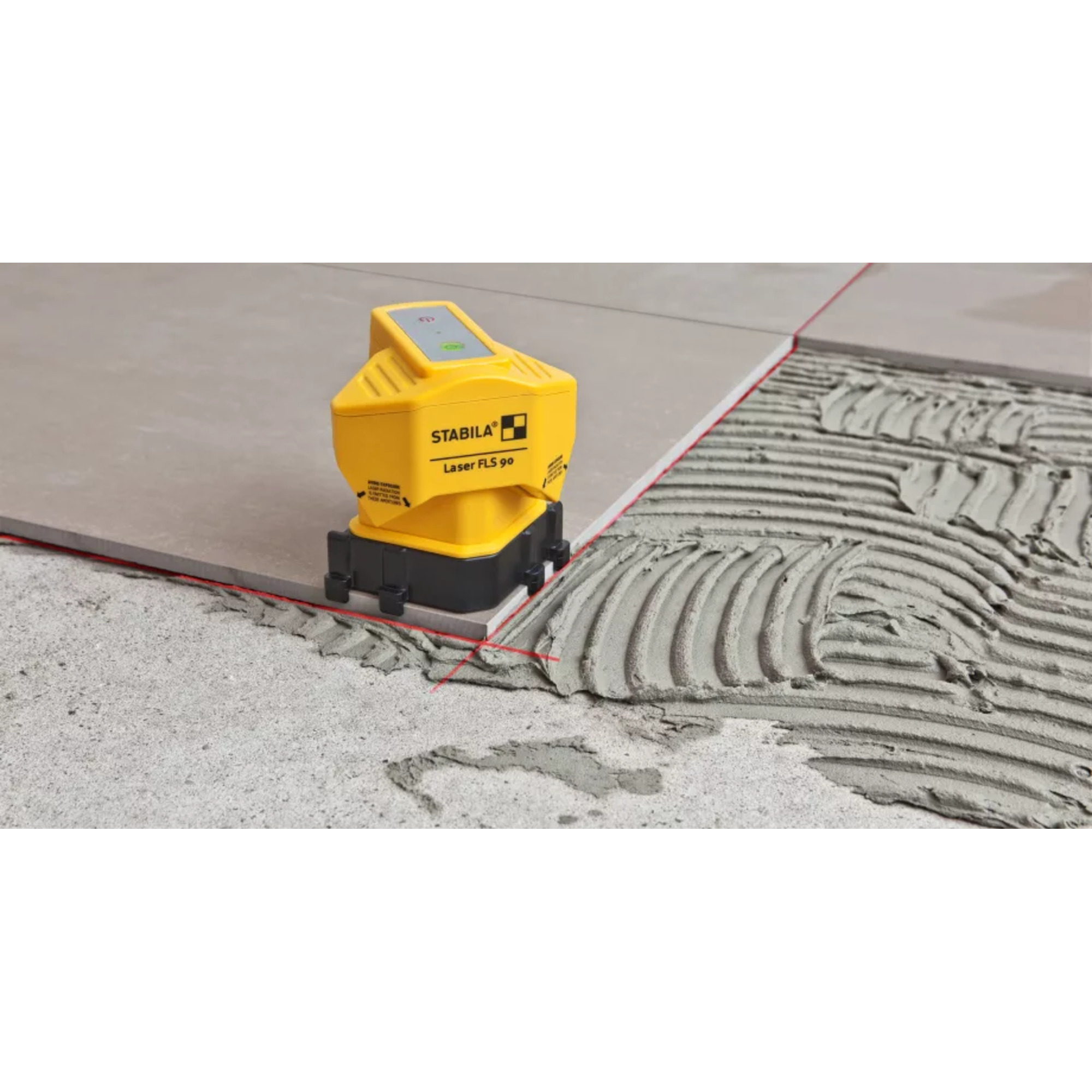

• Unique base of the tool allows you to reference the edge of tiles so you can see layout lines extended before you make them permanent.

• Laser class: 2
• Output: < 1 mW
• Laser wavelength: 635 nm
• Measuring range of set receiver: 490 ft
• Measuring range of visible line: 50 ft
• Operating life: 20 h
• Protection rating: IP 54
• Each cubic inch: 361
• Weight: 1.8 lbs
• Dimension in inches HxWxD: 9.4x7.3x5.25

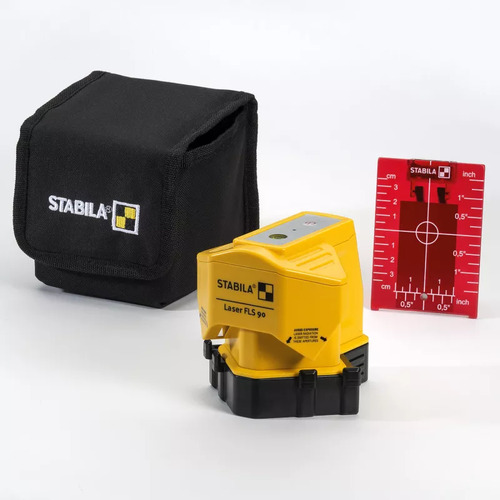

• FLS 90 floor line laser
• Target plate
• Belt pouch
• 3 x AA 1.5 V batteries
