Stabila LAR 300 EXTERIOR Rotary Laser - (2 Options Available)

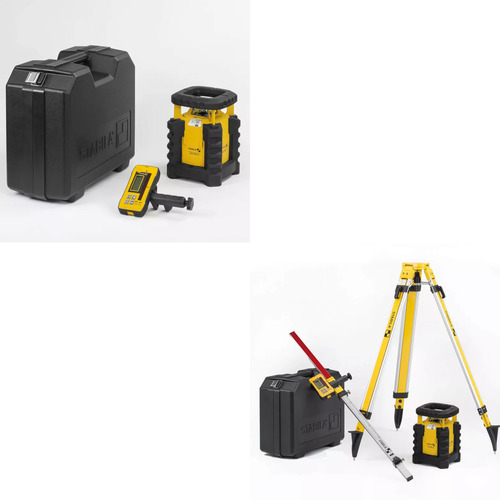

• 05800: 300 EXTERIOR Rotary Laser Kit
• 05820: 300 EXTERIOR Rotary Laser Set w/ Tripod & Grade Rod

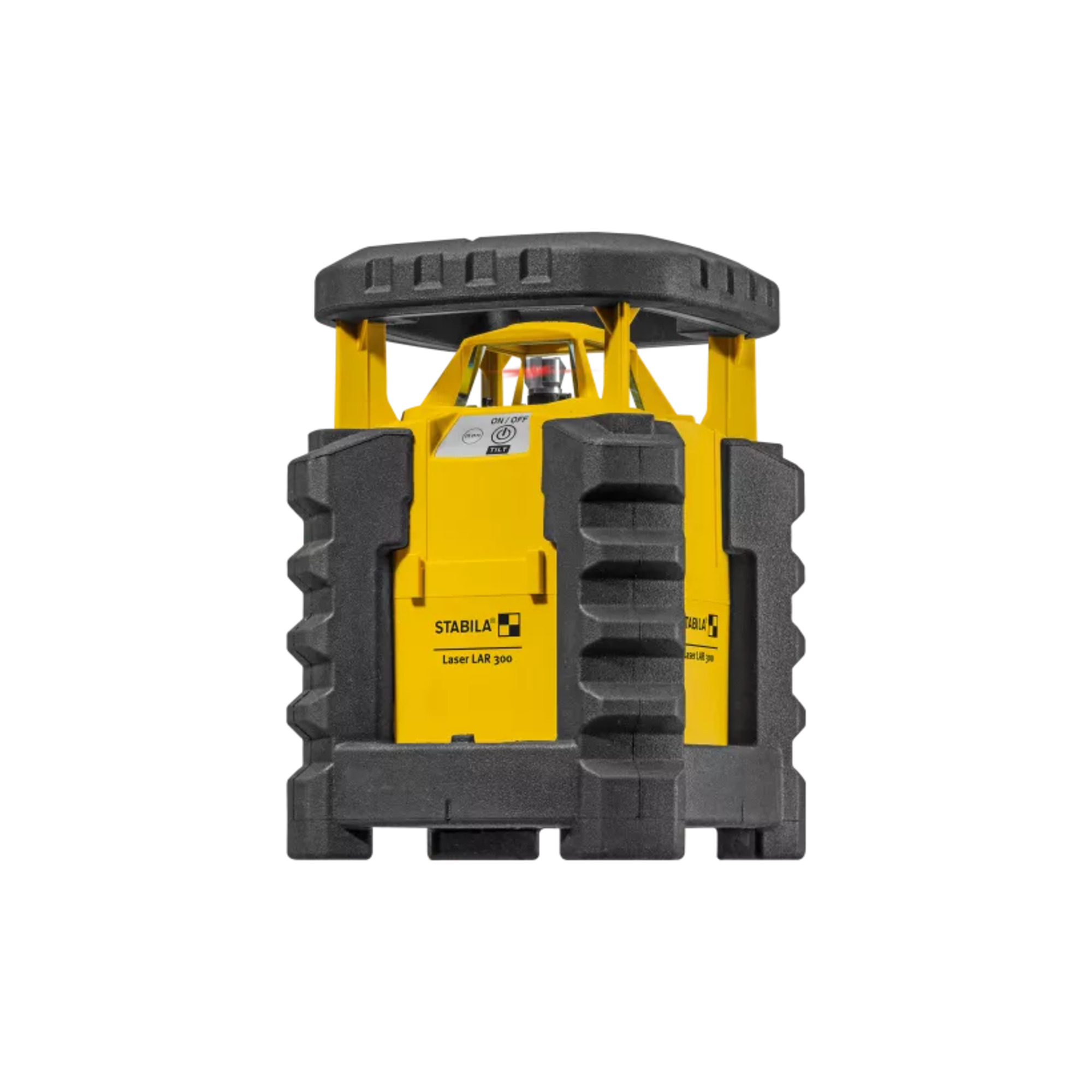

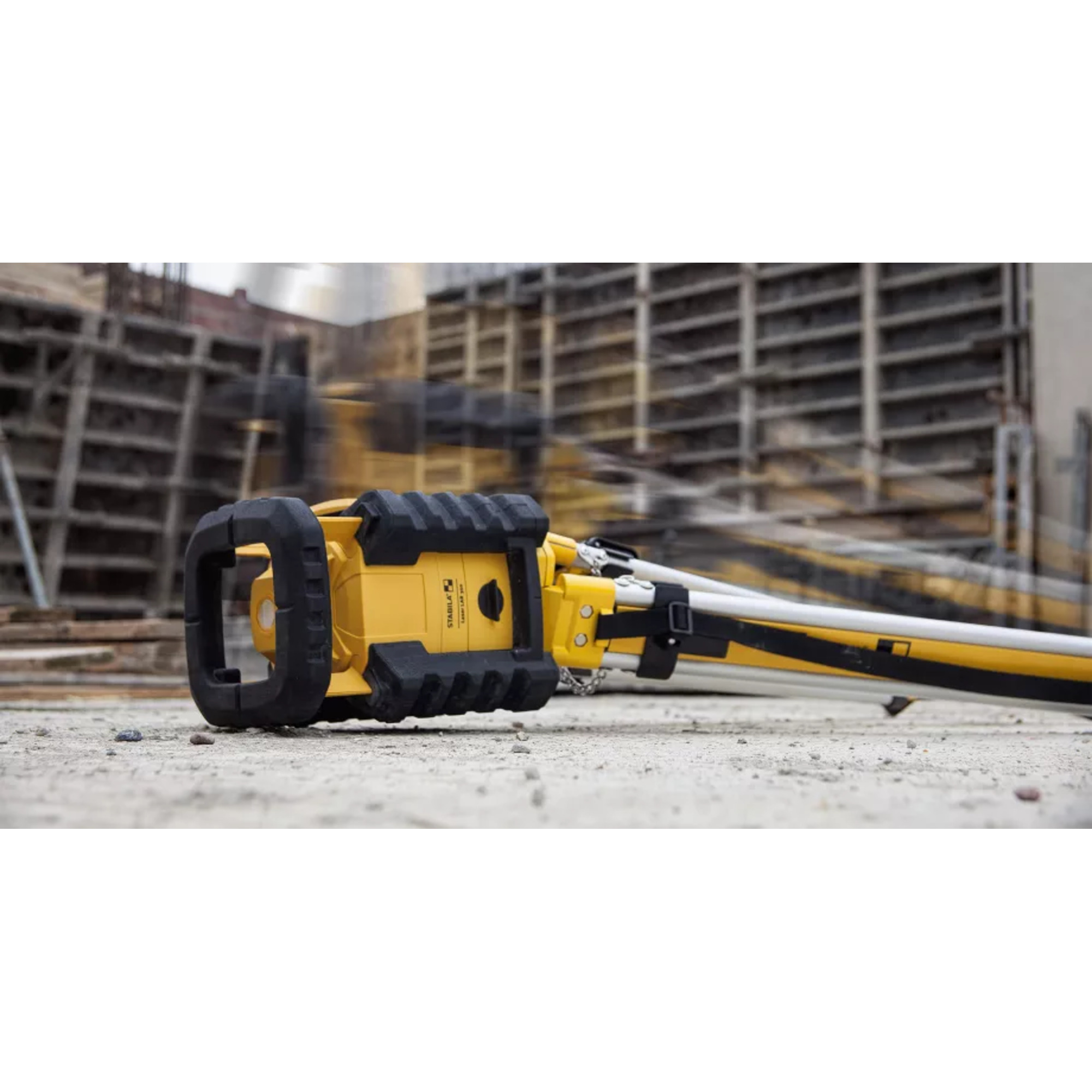

The Stabila LAR 300 is a fully automatic, motor-driven rotary laser designed for horizontal applications, delivering precision and durability for demanding construction environments. Ready for immediate use, it features fast self-leveling within 10 seconds and provides a high leveling accuracy of ± 1/8 in at 100 ft (± 0.1 mm/m). Built in Germany to exacting standards, the LAR 300 is exceptionally tough thanks to the STABILA PROTECTOR system, which ensures perfect protection even if the laser is dropped from a tripod at heights up to 6 ft (1.8 m). Simply reset the tripod, switch on, and continue measuring without interruption. With an IP65 rating, the unit is dustproof and waterproof, and it remains resistant to extreme temperatures ranging from 14°F to 140°F (-10°C to +60°C). Operation is exceptionally simple with one-button control, making it easy to use on busy job sites.

The LAR 300 offers a large working area when paired with the included receiver, covering up to 2600 ft (800 m) in diameter. Heights can be corrected quickly thanks to the receiver’s digital read-out, which shows the exact distance from grade, while arrows guide up or down adjustments. The receiver also provides visual and acoustic guidance with dual displays for maximum clarity. For flexible mounting, the laser includes a 5/8" thread for tripod attachment. A hard case ensures safe transport and storage, and the system is compatible with commercially available machine controllers, making it a versatile solution for construction professionals.

• Extremely tough thanks to the STABILA PROTECTOR system.
• Extremely simple operation.
• High-performance receiver – extremely large working area of up to 2600 ft (800 m) in diameter.
• Deviations from the reference height can be read directly from the receiver display.

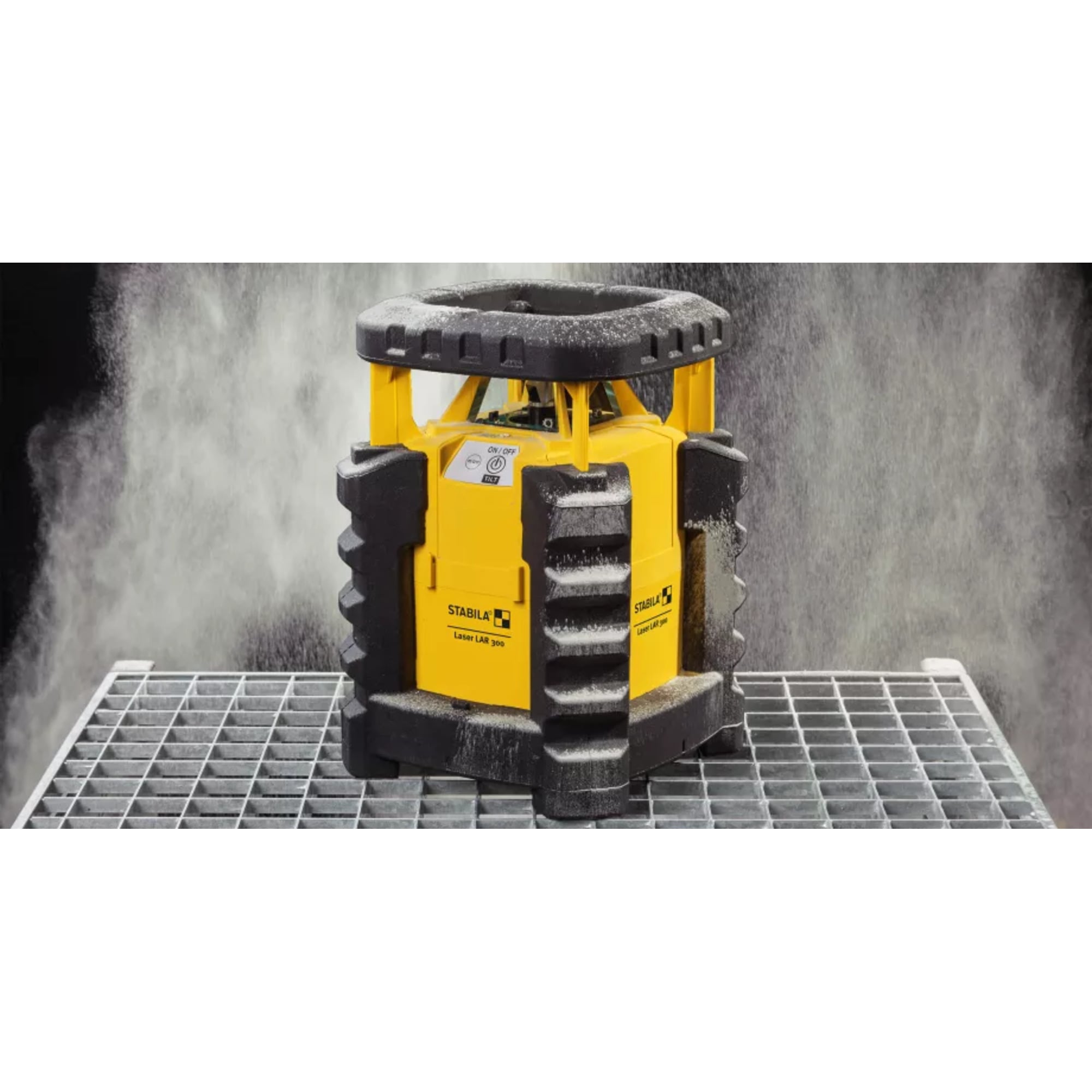

• Waterproof and dustproof (IP 65).

• Laser class: 2
• Output: < 1 mW
• Laser wavelength: 635 nm
• Self-levelling range ±: 5°
• Levelling accuracy ±: 1/8 in @ 100 ft
• Diameter of working area for set receiver: 2600 ft
• Operating life: 80 h
• Protection rating: IP 65
• Tripod connection: 5/8"-11
