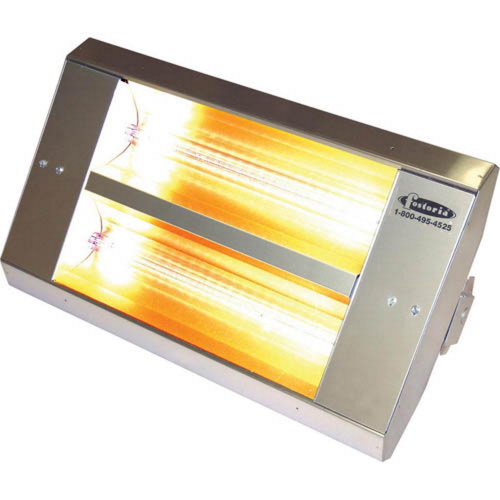

TPI 2 Lamp 8MM 3.2KW 480V 90Sym MTM EIR Htr STAINLESS Finish W.AG-Sleeves - 22290THSS480VAG

Product Code: ET12693
TPI 2 Lamp 8MM 3.2KW 480V 90Sym MTM EIR Htr STAINLESS Finish W.AG-Sleeves - 22290THSS480VAG
Condition: New
  • Usually ships off dock within:7 to 10 Business Days
Your Price $964.99
(You Save 36%)
List Price $1,516.00

Accepted Payment Types

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description
More Information
Reviews
Help
TPI 2 Lamp 8MM 3.2KW 480V 90Sym MTM EIR Htr STAINLESS Finish W.AG-Sleeves

Model Number: 222-90-THSS-480V-AG

Features:
  • Listed for suspended, totally exposed (outdoor), high-bay (indoor) comfort heating and exterior snow & ice control applications
  • Listed for recessed applications
  • Series:
    • 222 (Stainless Steel Version) 2-lamp –– THSS Series
  • Housing:
    • 20 gauge Stainless Steel for durability and corrosion-resistance.
  • Reflectors and End Caps:
    • .040 Gold anodized Aluminum reflectors and end caps for superior reflectivity.
    • Five choices of reflector patterns including 30 degree narrow (symmetric & asymmetric), 60 degree medium (symmetric & asymmetric), and 90 degree wide (symmetric)
    • THSS models have stainless steel endcaps.
  • Elements:
    • Clear quartz lamps.
    • Coiled tungsten filament located within a sealed quartz envelope, halogen filled, with porcelain end caps and 6" wire pigtail leads.
    • Elements are 12mm in diameter and deliver a 96% radiant efficiency with high moisture and thermal shock resistance.
    • Instantaneous heat-up and cool-down performance.
    • Available wattages from 1600 to 3650 Watts per element.
    • Available voltages from 208 to 600 Volts
  • Controls:
    • Mul-T-Mount heaters are not manufactured with any control device on the unit.
    • All controls are accessories and should be specified as such.
    • Please consult the technical sales department of factory for help in determining applicable controls.
    • Please follow installation instructions that accompany each heater.
  • Accessories:
    • Recessed mounting frames (painted or stainless steel)
    • Adjustable mounting brackets (stainless steel only)
    • Vertical mounting brackets (stainless steel only)
    • Wire guards, thermostats, snow detectors, SCR controllers, and power contactor panels (ICP Series)
  • In-Built surface mounting brackets allows for fixture adjustment up to 45° horizontal tilt
  • In-built surface mounting brackets attached to the top wiring channel
  • 0 to 45-degree tilt @15-degree increments
  • Made in U.S.A.
Specifications:
  • Quantity: 1
  • MFG CATALOG NUMBER: 04905902
  • KW: 3.2
  • BTU: 10,922
  • VOLTS: 480
  • REFLECTOR PATTERN: 90° Symmetrical
  • 12mm DIAMETER REPLACEMENT LAMP: 04913102
  • WT. (LBS): 20
NOTE: Consult the factory, the product instruction manual, or a licensed electrician for 3-phase wiring of all 2-element heaters.

WARNING: This product can expose you to chemicals including nickel which is known to the State of California to cause cancer, and chromium, which is known to the State of California to cause birth defects and/or reproductive harm. For more information go to www.P65Warnings.ca.gov.
  • MPN: 22290THSS480VAG
  • UPC: 686334490597
