TPI 3 Lamp 8MM 4.8KW 208V 60Sym MTM EIR Htr Stainless Steel W.AG-Sleeves - 22360THSS208VAG

Product Code: ET12822

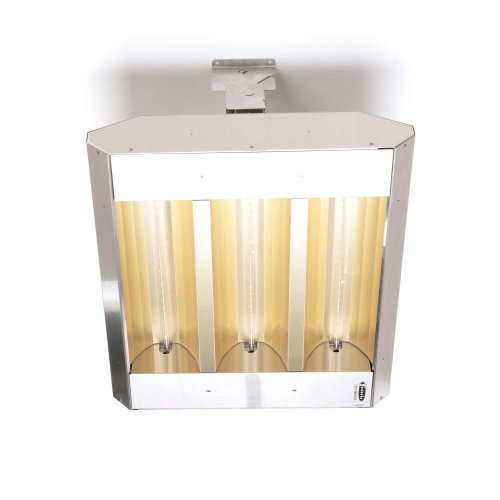

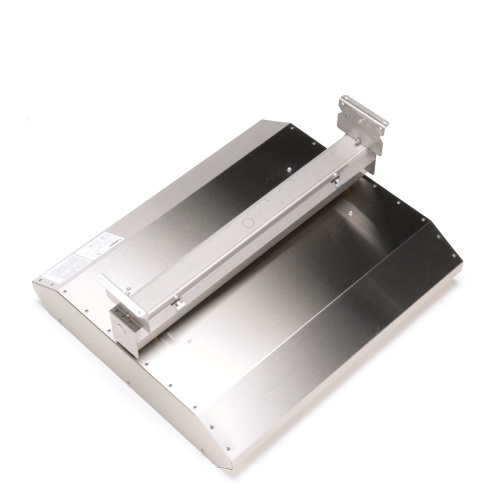

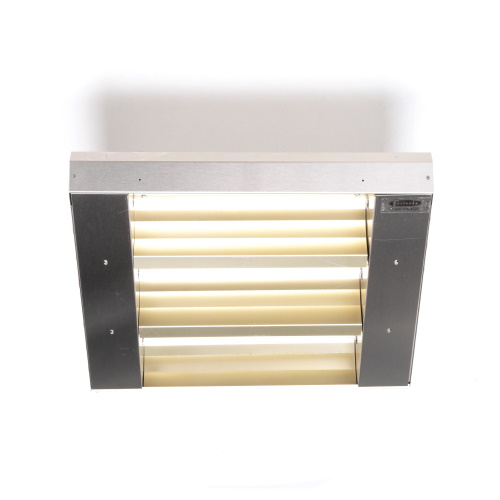

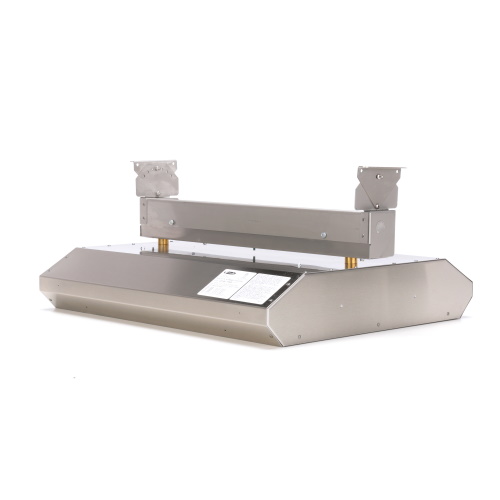

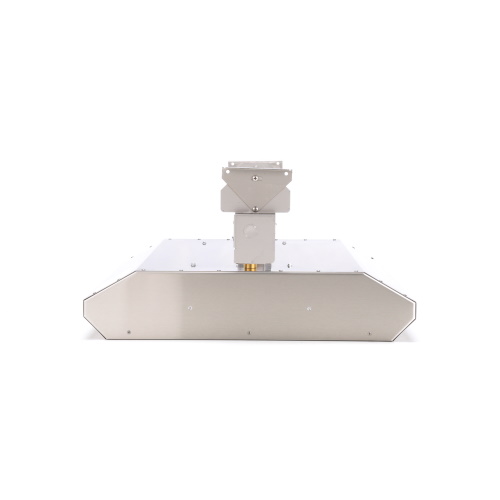

Photograph of TPI 3 Lamp 8MM 4.8KW 208V 60Sym MTM EIR Htr Stainless Steel W.AG-Sleeves - 22360THSS208VAG

Images/TPI/ET12822-TPI-3-Lamp-8MM-4-8KW-208V-60Sym-MTM-EIR-Htr-Stainless-Steel-W-AG-Sleeves-22360THSS208VAG-additional-4-md.jpg

Condition: New

Usually ships off dock within:2 to 4 Business Days

Your Price	$1,351.68
	(You Save 36%)

List Price

$2,112.00

Qty

Accepted Payment Types

Email This Product To A Friend

View More Of This Brand

Factory Authorized Dealer

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description

More Information

Reviews

Help

TPI 3 Lamp 8MM 4.8KW 208V 60Sym MTM EIR Htr Stainless Steel W.AG-Sleeves

Model Number: 223-60-THSS-208V-AG

Features:

Listed for suspended, totally exposed (outdoor), high-bay (indoor) comfort heating and exterior snow & ice control applications
Listed for recessed applications
Series:
- 223 (Stainless Steel Version) 3-lamp –– THSS Series
Housing:
- 20 gauge Stainless Steel for durability and corrosion-resistance.
Reflectors and End Caps:
- .040 Gold anodized Aluminum reflectors and end caps for superior reflectivity.
- Five choices of reflector patterns including 30 degree narrow (symmetric & asymmetric), 60 degree medium (symmetric & asymmetric), and 90 degree wide (symmetric).
- THSS models have stainless steel endcaps.
Elements:
- Clear quartz lamps.
- Coiled tungsten filament located within a sealed quartz envelope, halogen filled, with porcelain end caps and 6" wire pigtail leads.
- Elements are 12mm in diameter and deliver a 96% radiant efficiency with high moisture and thermal shock resistance.
- Instantaneous heat-up and cool-down performance.
- Available wattages from 1600 to 3650 Watts per element.
- Available voltages from 208 to 600 Volts
Controls:
- Mul-T-Mount heaters are not manufactured with any control device on the unit.
- All controls are accessories and should be specified as such.
- Please consult the technical sales department of factory for help in determining applicable controls.
- Please follow installation instructions that accompany each heater.
Accessories:
- Recessed mounting frames (painted or stainless steel)
- Adjustable mounting brackets (stainless steel only)
- Vertical mounting brackets (stainless steel only)
- Wire guards, thermostats, snow detectors, SCR controllers, and power contactor panels (ICP Series)
Heaters shipped with glare reducing sleeves & elements
Asymmetrical pattern units are also available for 30° & 60°
Made in U.S.A.

Specifications:

Quantity: 1
MFG CATALOG NUMBER: 04910802
KW: 4.8
BTU: 16,382
VOLTS: 208
REFLECTOR PATTERN: 60° Symmetrical
8mm DIAMETER REPLACEMENT LAMP: 04912802
WT. (LBS): 25

NOTE: Consult the factory, the product instruction manual, or a licensed electrician for 3-phase wiring of all 2-element heaters.

WARNING: This product can expose you to chemicals including nickel which is known to the State of California to cause cancer, and chromium, which is known to the State of California to cause birth defects and/or reproductive harm. For more information go to www.P65Warnings.ca.gov.

MPN: 22360THSS208VAG
UPC: 686334491082
