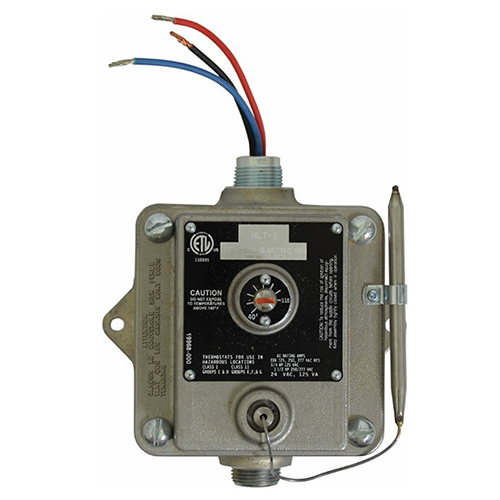

TPI 40-110 Degrees 22Amp @ 125-277VAC Hazardous Location Thermostat, Single Pole - HLT-1

Product Code: ET13020
TPI 40-110 Degrees 22Amp @ 125-277VAC Hazardous Location Thermostat, Single Pole - HLT-1
Condition: New
  • Usually ships off dock within:2 to 4 Business Days
Your Price $574.99
(You Save 37%)
List Price $914.00

Accepted Payment Types

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description
More Information
Reviews
Help
Made in the USA TPI 40-110 Degrees 22Amp @ 125-277VAC Hazardous Location Thermostat, Single Pole

Model Number: HLT-1

Features:
  • Motor Rating (full load): 3/4 HP @ 125V, 1-1/2 HP @ 250V
  • Pilot Duty Rating 125VA @ 24VAC
  • NEMA Class Seven Div. 1 Approved
  • Class I Group C & D, Class II Group E, F, & G
  • Not rated for Group B
  • SPDT & DPDT Models
  • Heat or cool compatible
  • Celsius and Fahrenheit temperature scale
  • Bi-Metal or capillary sensor
  • Snap action switch
  • Casting tapped top and bottom for 3⁄4” conduit
  • ½” thick cast aluminum housing
  • All EPET optional thermostats manufactured with anti-static plastic
  • Dimension 5.75” x 6.375” x 5.57”
  • Made in U.S.A.
Specifications:
  • Description: SPDT - Capillary
  • Load Rating: 22A @ 120-277VAC
  • Motor Rating HP: 1-1/2 HP @ 250V (full load)
  • Temperature Range: 40-110 F
  • Width: 5.75
  • Depth: 5.75
  • Height: 6.375
  • Color: Aluminum Housing / Black Faceplace
Note: Image shown is a representation, actual product may vary.
  • MPN: HLT1
  • UPC: 686334523158
