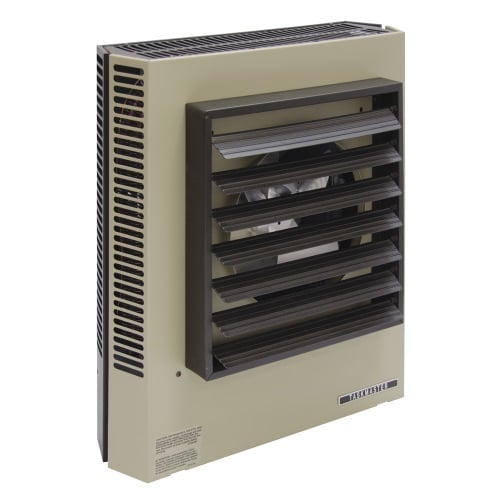

TPI 5100 Series Taskmaster 20 KW Fan-Forced Electric Heater

Model Number: P3P5120CA1N

Features:
  • Heavy 18 gauge welded steel cabinet with powder coated finish and control compartment housing a master terminal board with a hinged and latched access door, simplifying wiring, installation & maintenance.
  • Heating Element: Copper clad steel sheath element with continuously brazed steel fins formed to allow side draw through air flow.
  • Overheat Protection: All units come equipped with automatic reset type limit controls to de-energize the heater should an over-temperature situation occur.
  • Totally enclosed, 1-speed, 1-phase, permanently lubricated, thermally protected motors with unit bearings on 3 KW - 20 KW models.
  • All motors mounted with rubber insulators to minimize vibration & noise.
  • Fan over-ride purges unit of residual heat at shutdown
  • Lovuer Assembly: Louvers are individually adjustable for directional control of air flow up to 15° from straight horizontal.
  • Unit Heaters can be mounted for horizontal or vertical discharge. Applications up to 6000 Ft. See UH Series above 6000 Ft.
  • ETL C/US listed for indoor commercial and industrial heating applications
  • 1 Year Limited Manufacturer's Warranty
  • Made in U.S.A.
Specifications:
  • KW: 20
  • BUT/H: 68.3
  • Volts: 480
  • PH: 3
  • AMPS: 24.1
  • Control Voltage: 24
  • Temp Rise: 57° F
  • Air Throw: 32 ft.
  • CFM: 1100 ft.
  • Plug Type: Hardwire
  • Recommended Mounting Height Horizontal: 12 ft
  • Recommended Mounting Height Vertical: 18 ft
  • Weight: 65 lbs
  • MPN: P3P5120CA1N
  • UPC: 686334645409
