TPI 5100 Unit Htr. - (4 Options Available)

Product Code: ET12947

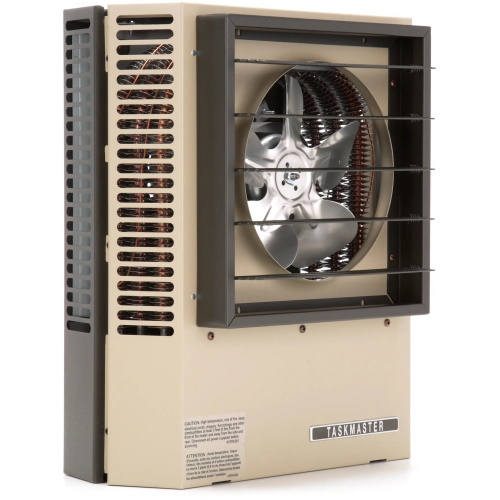

Photograph of TPI 5100 Unit Htr. - (4 Options Available)

Condition: New

Usually ships off dock within:7 to 10 Business Days

Your Price	$809.99 809.99
	(You Save 36%)

List Price

$1,273.00

Qty

Accepted Payment Types

Select Option

Email This Product To A Friend

View More Of This Brand

Factory Authorized Dealer

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description

More Information

Reviews

Help

TPI 5100 Unit Htr.

Available :

HF1B5103N: 3.3/2.5KW 240/208V 1P
HF1B5105N: 5/3.7KW 240/208V 1P
HF2B5103N-1P: 3.3/2.5KW 240/208V 1/3P
HF2B5103N-3P: 3.3/2.5KW 240/208V 3P

Features:

CONSTRUCTION:
- Heavy 18 gauge welded steel cabinet with powder-coated finish and control compartment housing a master terminal board with a hinged and latched access door, simplifying wiring, installation & maintenance.
HEATING ELEMENT:
- Copper clad steel sheath element with continuously brazed steel fins formed to allow side draw through airflow.
OVERHEAT PROTECTION:
- All units come equipped with automatic reset type limit controls to de-energize the heater should an over-temperature situation occur.
FAN and MOTOR:
- Totally enclosed, 1-speed, 1-phase, permanently lubricated, thermally protected motors with unit bearings on 3 KW - 20 KW models. Totally enclosed, 2-speed, 1-phase, permanently lubricated, thermally protected motors with sleeve bearings on 25 KW - 50 KW models.
- All motors mounted with rubber insulators to minimize vibration & noise.
- Fan over-ride purges unit of residual heat at shutdown.
LOUVER ASSEMBLY:
- Louvers are individually adjustable for directional control of airflow up to 15° from straight horizontal.
- Optional diffusers available for downflow (vertical
  discharge) applications.
TEMPERATURE CONTROLS:
- Optional low voltage and line voltage thermostats available with an adjustable temperature range of 40°F to 110°F.
- Units with model numbers ending in CA1 are factory wired for low voltage controls.
- 25 KW through 50 KW units are designed for two-stage heating operation.
INSTALLATION:
- Unit Heaters can be mounted for horizontal or vertical discharge.
- Applications up to 6000 ft. See UH Series above 6000 ft.
Made in U.S.A.
FIELD INSTALLED OPTIONS:
- In-unit or wall-mounted temperature control thermostats low or line voltage
- Summer fan switch to operate the fan only
- Power disconnect switch
- Heat stratification thermostat

Specifications:

Quantity: 1
