TPI 5600 Series Multiple Wattage/Volts Fan Forced Unit Heater, 1 Phase - HF5605T

Product Code: ET12963
TPI 5600 Series Multiple Wattage/Volts Fan Forced Unit Heater, 1 Phase - HF5605T
Condition: New
  • Usually ships off dock within:7 to 10 Business Days
Your Price $893.99
(You Save 36%)
List Price $1,404.00

Accepted Payment Types

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description
More Information
Reviews
Help

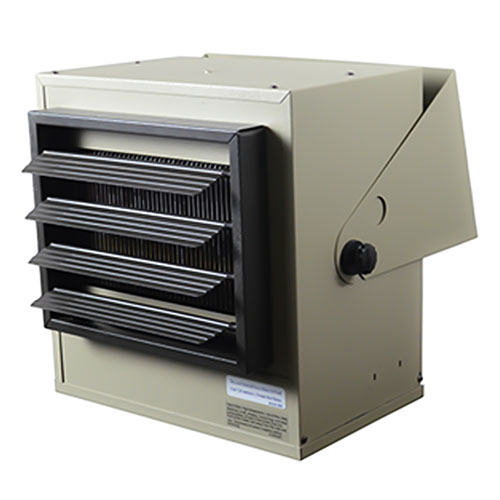

Made in the USA TPI 5600 Series Multiple Wattage/Volts Fan Forced Unit Heater, 1 Phase

Model Number: HF5605T

Features:
  • Casing & Construction: Fabricated of die formed, heavy gauge steel and finished with two tone, brown and beige, durable powder coated paint. Supply air is drawn through the rear heavy duty expanded steel inlet grill. Heated air is discharged through front adjustable louvers, which are spring loaded for individual adjustment.
  • Element: Heavy-duty block fin element design. The multiple tap electric connection design allows field conversion to eight wattage settings at 208/240-Volt single phase or 240/480 Volt, 3 phase. Units are available on special order with a specific wattage/voltage setting.
  • Motor: Motor shall be totally enclosed, permanently lubricated, all angle industrial rated with thermal overload protection.
  • Wiring: Wiring to terminal block adjacent to incoming knockout in accordance with NEC and local codes.
  • Thermal Overload: All heaters shall be equipped with an automatic reset thermal cutout to shut down the element and motor circuits if unsafe operating temperatures are exceeded.
  • Controls: The heater shall have a heavy-duty hydraulic thermostat factory installed and wired. All controls and wiring shall be in a large wiring compartment with hinged door for easy access. An optional disconnect switch shall be available for field installation.
  • Mounting: Heaters are standard with a three position-mounting bracket for wall, ceiling or workbench. Heaters can be mounted for horizontal or vertical discharge. Note: Minimum mounting height is 6 feet, and minimum distance from side of heater to nearest wall is 6 inches.
  • Note: Approved for residential
  • Made in U.S.A.
Specifications:
  • Agency Rating: ETL-CUS
  • Wattage 208V: 3750/ 3123/ 2500/ 1874
  • Wattage 240V: 5000/ 4165/ 3332/ 2500
  • BTU 208V: 12798@3750W/ 10659@3123W/ 8553@2500W/ 6396@1874
  • BTU 240V: 17065@5000W/ 14215@4165W/ 11365@3332W/ 8533@2500W
  • Voltage: 208/240
  • Phase: 1
  • 1PH AMP 208V: 18@3750W/ 15@3123W/ 12@2500W/ 9@1874W
  • 1PH AMP 240V: 21@5000W/ 17@4165W/ 14@3332W/ 10@2500W
  • Temperature Rise: 240V/57F@5000W 240V/48F@4165W 240V/38F@3332W 240V/29F@2500W 208V/43F@3750W 208V/36F@3123W 208V/29F@2500W 208V/21F@1874W
  • Temperature Range: 40-120 F
  • Air Throw: 16
  • CFM: 275
  • Color: Beige/Brown
  • Weight (lbs): 32
Note: Image shown is a representation, actual product may vary.
  • MPN: HF5605T
  • UPC: 686334707282
