TPI FSA Series 1.45KW Heavy Duty Overhead Flat Panel Emitter - 600 Volts - FSA-1457-1

Product Code: ET12639
TPI FSA Series 1.45KW Heavy Duty Overhead Flat Panel Emitter - 600 Volts - FSA-1457-1

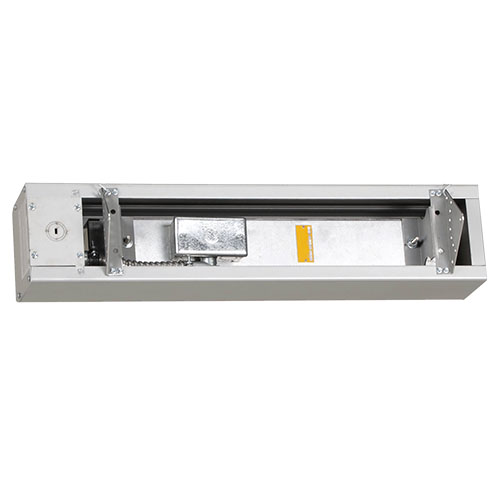

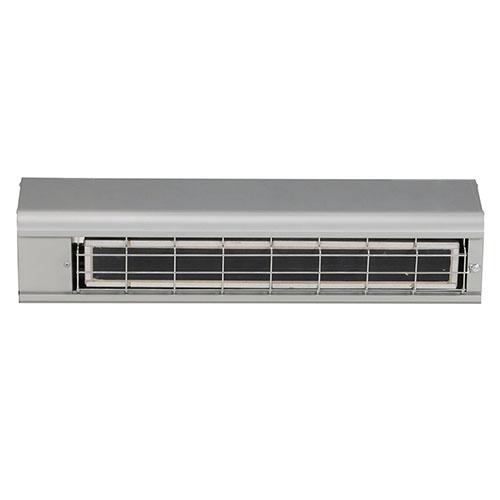

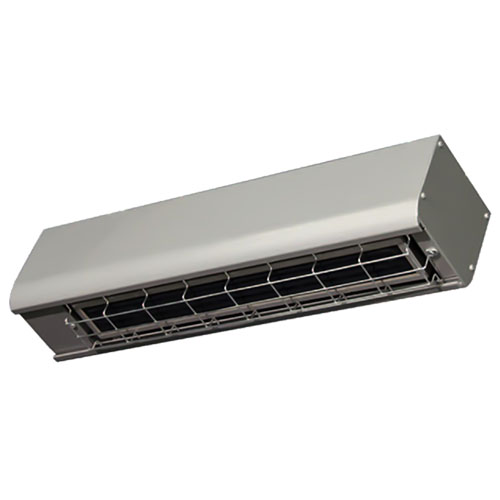

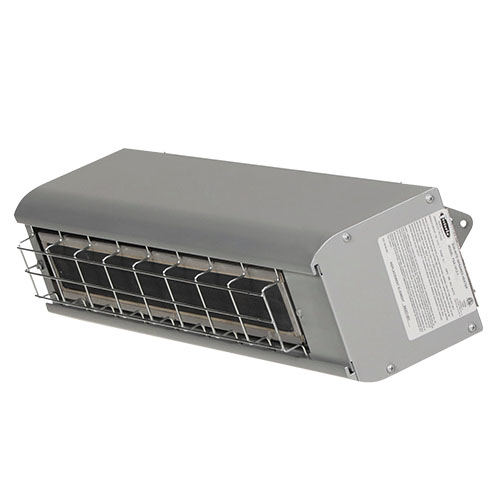

Photograph of TPI FSA Series 1.45KW Heavy Duty Overhead Flat Panel Emitter - 600 Volts - FSA-1457-1
Photograph of TPI FSA Series 1.45KW Heavy Duty Overhead Flat Panel Emitter - 600 Volts - FSA-1457-1
Photograph of TPI FSA Series 1.45KW Heavy Duty Overhead Flat Panel Emitter - 600 Volts - FSA-1457-1
TPI FSA Series 1.45KW Heavy Duty Overhead Flat Panel Emitter - 600 Volts - FSA-1457-1 Photograph of TPI FSA Series 1.45KW Heavy Duty Overhead Flat Panel Emitter - 600 Volts - FSA-1457-1 Photograph of TPI FSA Series 1.45KW Heavy Duty Overhead Flat Panel Emitter - 600 Volts - FSA-1457-1 Photograph of TPI FSA Series 1.45KW Heavy Duty Overhead Flat Panel Emitter - 600 Volts - FSA-1457-1
Condition: New
  • Usually ships off dock within:2 to 4 Business Days
Your Price $996.48
(You Save 36%)
List Price $1,557.00

Accepted Payment Types

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description
More Information
Reviews
Help
Made in the USA TPI FSA Series 1.45KW Heavy Duty Overhead Flat Panel Emitter - 600 Volts

Model Number: FSA-1457-1

Features:
  • ETL C/US Listed for suspended high-bay indoor or protected outdoor applications
  • Designed for spot / zone or total area heating applications
  • Heating elements included (Heavy Duty Single Flat Panel Emitter)
  • Medium wave emitter operates at 78.5% radiant efficiency - with a 25,000 hour life expectancy
  • Extruded aluminum housing with a nickel-gray finish, providing a 60° symmetrical heat pattern
  • Electrical enclosure included for direct wire installation
  • Single or three-phase wiring configurations
  • “L” brackets included on the top of the heating housing for chain suspension, wall mounting, or ceiling mounting options
  • Units can be surface mounted, semi-recessed, or fully-recessed
  • Zinc plated heavy-gauge safety grills included for all models
  • Optional wall mounting bracket sold separately
  • Shipped fully assembled
  • Made in U.S.A.
Specifications:
  • Watts: 1450
  • Volts: 600
  • Phase: 1
  • BTUs / Hr.: 4947
  • Amps: 1-PH (2.52) / 3-PH (N/A)
  • WT. (LBS): 13
  • Mounting Clearances: 24” from ceiling, 36” from vertical surface & from another heater(4” when using optional mounting bracket), 72” from face of heater to combustible surface
  • Recommended Mounting Height: 8’ - 10’
Accessories:
  • Optional Power Control
    Optional - ICP Control Panels Features:
  • NEMA 4 outdoor rated control box
  • Door interlock disconnect switch
  • Custom made to customers specifications
  • SCR and proportional controls optional Circuit breakers sized for heater load per stage
  • See ICP page to select panel to control one or multiple units, if required
  • MPN: FSA14571
  • UPC: 686334488952
