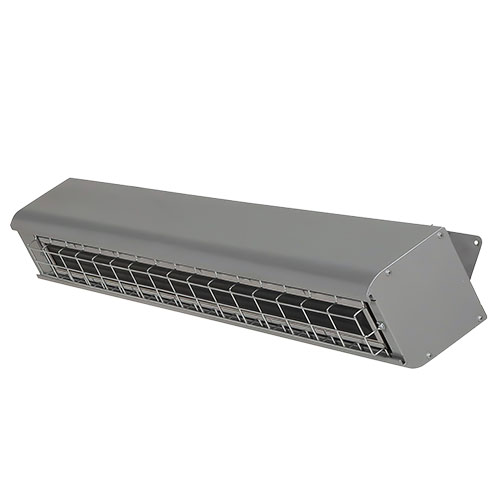

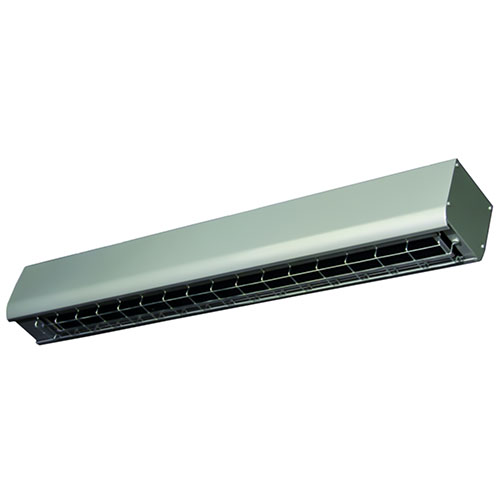

TPI FSA Series 3.15KW Heavy Duty Overhead Flat Panel Emitter - 277 Volts - FSA-3127-1

Product Code: ET12642

Condition: New

Your Price	$1,135.36
	(You Save 36%)

List Price

$1,774.00

Qty

Accepted Payment Types

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description

More Information

Reviews

Help

TPI FSA Series 3.15KW Heavy Duty Overhead Flat Panel Emitter - 277 Volts

Model Number: FSA-3127-1

Features:

ETL C/US Listed for suspended high-bay indoor or protected outdoor applications
Designed for spot / zone or total area heating applications
Heating elements included (Heavy Duty Single Flat Panel Emitter)
Medium wave emitter operates at 78.5% radiant efficiency - with a 25,000 hour life expectancy
Extruded aluminum housing with a nickel-gray finish, providing a 60° symmetrical heat pattern
Electrical enclosure included for direct wire installation
Single or three-phase wiring configurations
“L” brackets included on the top of the heating housing for chain suspension, wall mounting, or ceiling mounting options
Units can be surface mounted, semi-recessed, or fully-recessed
Zinc plated heavy-gauge safety grills included for all models
Optional wall mounting bracket sold separately
Shipped fully assembled
Made in U.S.A.

Specifications:

Watts: 3150
Volts: 277
Phase: 1
BTUs / Hr.: 10,748
Amps: 1-PH (11.37) / 3-PH (N/A)
WT. (LBS): 22
Mounting Clearances: 24” from ceiling, 36” from vertical surface & from another heater(4” when using optional mounting bracket), 72” from face of heater to combustible surface
Recommended Mounting Height: 8’ - 12’

Accessories:

Optional - ICP Control Panels Features:

NEMA 4 outdoor rated control box
Door interlock disconnect switch
Custom made to customers specifications
SCR and proportional controls optional Circuit breakers sized for heater load per stage
See ICP page to select panel to control one or multiple units, if required
