TPI FSA Series 9.5KW Heavy Duty Overhead Flat Panel Emitter - 480 Volts - FSA-9548-3

Product Code: ET12654
TPI FSA Series 9.5KW Heavy Duty Overhead Flat Panel Emitter - 480 Volts - FSA-9548-3

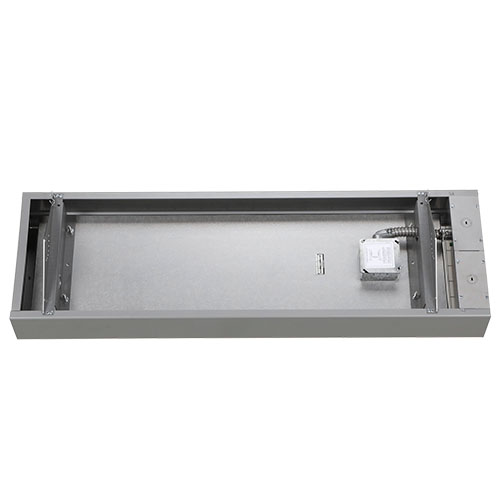

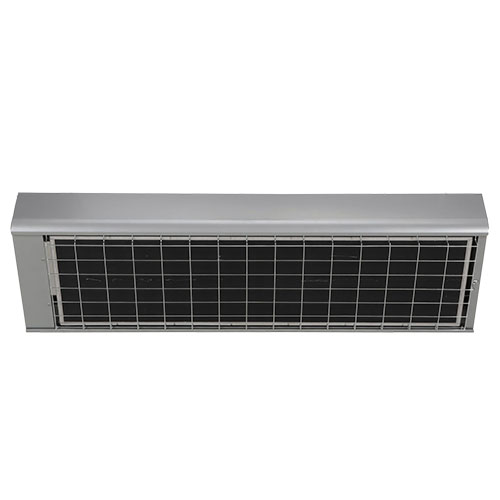

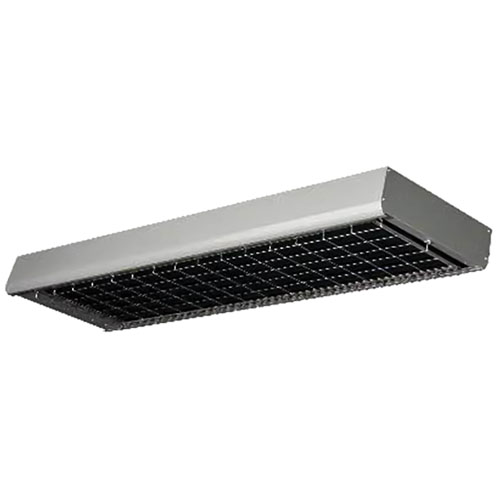

Photograph of TPI FSA Series 9.5KW Heavy Duty Overhead Flat Panel Emitter - 480 Volts - FSA-9548-3
Photograph of TPI FSA Series 9.5KW Heavy Duty Overhead Flat Panel Emitter - 480 Volts - FSA-9548-3
TPI FSA Series 9.5KW Heavy Duty Overhead Flat Panel Emitter - 480 Volts - FSA-9548-3 Photograph of TPI FSA Series 9.5KW Heavy Duty Overhead Flat Panel Emitter - 480 Volts - FSA-9548-3 Photograph of TPI FSA Series 9.5KW Heavy Duty Overhead Flat Panel Emitter - 480 Volts - FSA-9548-3
Condition: New
  • Usually ships off dock within:2 to 4 Business Days
Your Price $2,227.20
(You Save 36%)
List Price $3,480.00

Accepted Payment Types

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description
More Information
Reviews
Help
Made in the USA TPI FSA Series 9.5KW Heavy Duty Overhead Flat Panel Emitter - 480 Volts

Model Number: FSA-9548-3

Features:
  • ETL C/US Listed for suspended high-bay indoor or protected outdoor applications
  • Designed for spot / zone or total area heating applications
  • Heating elements included (Heavy Duty Single Flat Panel Emitter)
  • Medium wave emitter operates at 78.5% radiant efficiency - with a 25,000 hour life expectancy
  • Extruded aluminum housing with a nickel-gray finish, providing a 60° symmetrical heat pattern
  • Electrical enclosure included for direct wire installation
  • Single or three-phase wiring configurations
  • “L” brackets included on the top of the heating housing for chain suspension, wall mounting, or ceiling mounting options
  • Units can be surface mounted, semi-recessed, or fully-recessed
  • Zinc plated heavy-gauge safety grills included for all models
  • Optional wall mounting bracket sold separately
  • Shipped fully assembled
  • Made in U.S.A.
Specifications:
  • Watts: 9500
  • Volts: 480
  • Phase: 1 or 3
  • BTUs / Hr.: 32,414
  • Amps: 1-PH (19.8) / 3-PH (11.44)
  • WT. (LBS): 39
  • Mounting Clearances: 24” from ceiling, 36” from vertical surface & from another heater(4” when using optional mounting bracket), 72” from face of heater to combustible surface
  • Recommended Mounting Height: 12’ - 16’
Accessories:
  • Optional Power Control
    Optional - ICP Control Panels Features:
  • NEMA 4 outdoor rated control box
  • Door interlock disconnect switch
  • Custom made to customers specifications
  • SCR and proportional controls optional Circuit breakers sized for heater load per stage
  • See ICP page to select panel to control one or multiple units, if required
  • MPN: FSA95483
  • UPC: 686334489096
