TPI FSS Series 1.45KW Infrared Flat Panel Emitter Suspension Mount - 208 Volts - FSS-1420-1

Product Code: ET12468

Condition: New

Your Price	$818.56
	(You Save 36%)

List Price

$1,279.00

Qty

Accepted Payment Types

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description

More Information

Reviews

Help

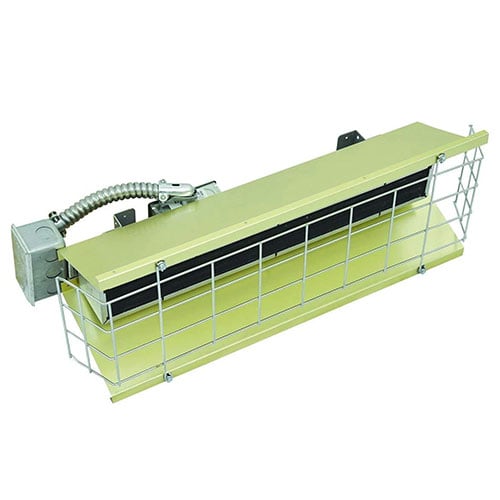

TPI FSS Series 1.45KW Infrared Flat Panel Emitter Suspension Mount - 208 Volts

Model Number: FSS-1420-1

Features:

Heavy Duty Overhead Infrared Heaters for Indoor Spot Heating,Zone, or Total Area Heating Applications
High-density, medium wavelength radiant heat, with 60° symmetric heat pattern
Flat panel emitter operates at a radiant efficiency of 78.5%
Non-glare, uniform heat generating directional heat pattern
Rugged steel structure surrounds emitter element, great for high vibration areas
Gold anodized aluminum housing for efficient, long term reflectivity & corrosion resistance
Single or three phase wiring on select models
“ L” brackets included for chain suspension, or rigid mounting
Field wiring box mounted on each heater
Heavy duty wire guard factory installed
25,000 hour element life expectancy
Shipped fully assembled
Ideal spot heating system for high-bay buildings up to 24’
Controls:Flat panel emitter heaters are not manufactured with any control device on the unit. All controls and accessories should be specified as remote mounted.Please consult the technical sales department of factory for help in determining applicable controls. Please follow installation instructions that accompany each heater.
Made in U.S.A.

Specifications:

Accessories:

ICP Control Panels Features:

NEMA 4 outdoor rated control box
Door interlock disconnect switch
Custom made to customers specifications
SCR and proportional controls optional
Circuit breakers sized for heater load per stage
Please see ICP page to select panel to control one or multiple units, if required.
