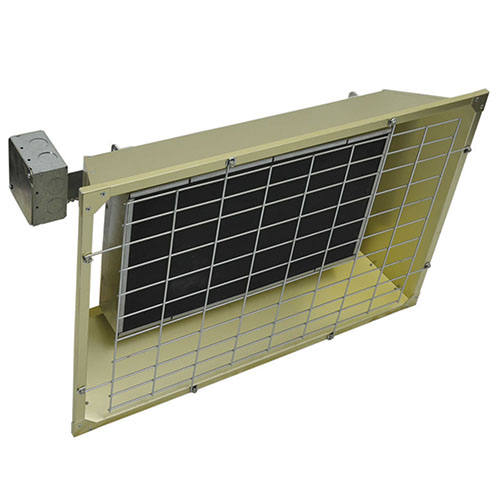

TPI FSS Series 4.30KW Infrared Flat Panel Emitter Suspension Mount - 240 Volts - FSS-4324-3

Product Code: ET12505
TPI FSS Series 4.30KW Infrared Flat Panel Emitter Suspension Mount - 240 Volts - FSS-4324-3
Condition: New
  • Usually ships off dock within:2 to 4 Business Days
Your Price $1,359.99
(You Save 36%)
List Price $2,138.00

Accepted Payment Types

Apply Now
Easy Financing Available
as low as $23/mo
for 60 months. Details

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description
More Information
Reviews
Help
Made in the USA TPI FSS Series 4.30KW Infrared Flat Panel Emitter Suspension Mount - 240 Volts

Model Number: FSS-4324-3

Features:
  • Heavy Duty Overhead Infrared Heaters for Indoor Spot Heating,Zone, or Total Area Heating Applications
  • High-density, medium wavelength radiant heat, with 60° symmetric heat pattern
  • Flat panel emitter operates at a radiant efficiency of 78.5%
  • Non-glare, uniform heat generating directional heat pattern
  • Rugged steel structure surrounds emitter element, great for high vibration areas
  • Gold anodized aluminum housing for efficient, long term reflectivity & corrosion resistance
  • Single or three phase wiring on select models
  • “ L” brackets included for chain suspension, or rigid mounting
  • Field wiring box mounted on each heater
  • Heavy duty wire guard factory installed
  • 25,000 hour element life expectancy
  • Shipped fully assembled
  • Ideal spot heating system for high-bay buildings up to 24’
  • Controls:Flat panel emitter heaters are not manufactured with any control device on the unit. All controls and accessories should be specified as remote mounted.Please consult the technical sales department of factory for help in determining applicable controls. Please follow installation instructions that accompany each heater.
  • Made in U.S.A.
Specifications:
  • Watts: 4300
  • Volts: 240
  • Phase: 1 or 3
  • BTUs/Hr.: 14,672
  • Amps: 1-PH (17.91) / 3-PH (10.36)
  • Elements Per Heater: 1
  • WT. (LBS):18
  • Required Minimum Mounting Clearance: 24” from ceiling
  • Recommended Mounting Height: 10’ - 14’
Accessories:
  • Power contractor panels
    ICP Control Panels Features:
  • NEMA 4 outdoor rated control box
  • Door interlock disconnect switch
  • Custom made to customers specifications
  • SCR and proportional controls optional
  • Circuit breakers sized for heater load per stage
  • Please see ICP page to select panel to control one or multiple units, if required.
  • MPN: FSS43243
  • UPC: 686334488273
