TPI HLA Series 15KW Hazardous Location Fan Forced Unit Heater, 3P - 240 Volts - HLA20-240360-15.0-24

Product Code: ET12617
TPI HLA Series 15KW Hazardous Location Fan Forced Unit Heater, 3P - 240 Volts - HLA20-240360-15.0-24
Photograph of TPI HLA Series 15KW Hazardous Location Fan Forced Unit Heater, 3P - 240 Volts - HLA20-240360-15.0-24
Photograph of TPI HLA Series 15KW Hazardous Location Fan Forced Unit Heater, 3P - 240 Volts - HLA20-240360-15.0-24
Photograph of TPI HLA Series 15KW Hazardous Location Fan Forced Unit Heater, 3P - 240 Volts - HLA20-240360-15.0-24
TPI HLA Series 15KW Hazardous Location Fan Forced Unit Heater, 3P - 240 Volts - HLA20-240360-15.0-24 Photograph of TPI HLA Series 15KW Hazardous Location Fan Forced Unit Heater, 3P - 240 Volts - HLA20-240360-15.0-24 Photograph of TPI HLA Series 15KW Hazardous Location Fan Forced Unit Heater, 3P - 240 Volts - HLA20-240360-15.0-24 Photograph of TPI HLA Series 15KW Hazardous Location Fan Forced Unit Heater, 3P - 240 Volts - HLA20-240360-15.0-24
Condition: New
  • Usually ships off dock within:14 to 21 Business Days
Your Price $12,433.99
(You Save 36%)
List Price $19,546.00

Accepted Payment Types

Apply Now
Easy Financing Available
as low as $207/mo
for 60 months. Details

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description
More Information
Reviews
Help
Made in the USA TPI HLA Series 15KW Hazardous Location Fan Forced Unit Heater, 3P - 240 Volts

Model Number: HLA20-240360-15.0-24

Important Order Information:
  • Please note: Orders for this item are non-cancellable once placed.

    • Features:
    • Designed for rugged industrial applications in hazardous locations where the possibility of explosion or fire exists due to the presence of certain flammable gases, vapors, powdered metals or dust

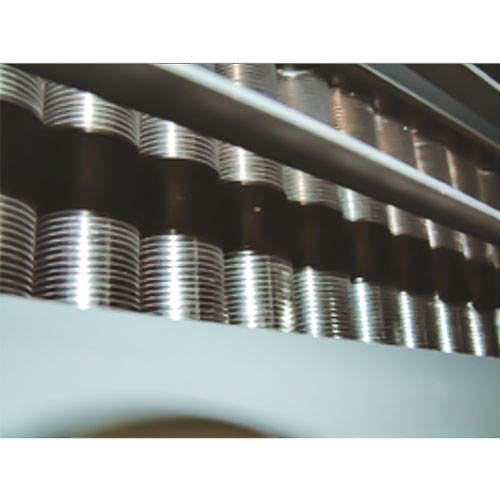

    • Permanently sealed, liquid to air, finned tube heat exchanger core
    • Ethylene Glycol to water mixture used as a heat transfer fluid in the heater core, providing -45° C. (-49° F) freeze damage protection

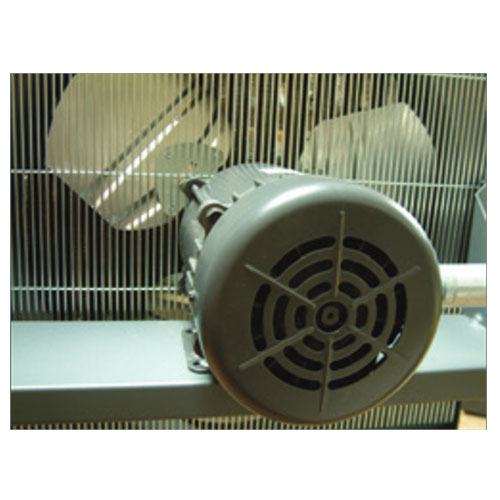

    • High-performance electric motor driven fan blows air across finned tubes to effect uniform heat transfer and area heat distribution

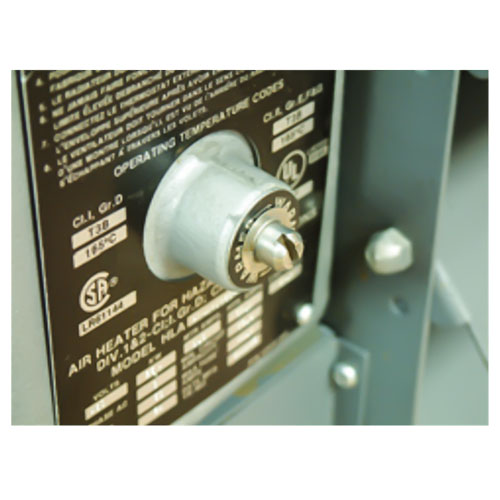

    • Manual Reset capillary type limit provides high temperature regulation and is rated for 6,000 cycles of service
    • Stainless steel and aluminum pressure relief valve for overpressure
    • A back-up contactor is included for additional protection
    • 14 gauge steel cabinet powder coated epoxy paint finish contains heater core, motor, and fan assembly
    • Narrow gap safety fan guard shields all moving parts
    • Adjustable louvers allow directional control of air
    • Copper conductor wires enclosed in rigid metal conduits carry all electrical power
    • Box lugs furnished for field connections within approved enclosure
    • Made in U.S.A.
    Specifications:
    • KW: 15
    • BTUs: 51200
    • Volts: 240
    • PH: 3
    • Amps: 38.1
    • Control Voltage: 24
    • Temp Rise °F: 19.2
    • Air Throw: 43'
    • CFM: 2450
    • Recom’d Mounting Ht.: 13’
    • WT.(LBS): 193
    Note: Before selecting a hazardous location electric heater refer to Article 500 or other applicable standard referenced in the National Electric Code.
    • MPN: HLA2024036015.024
    • UPC: 686334734219
