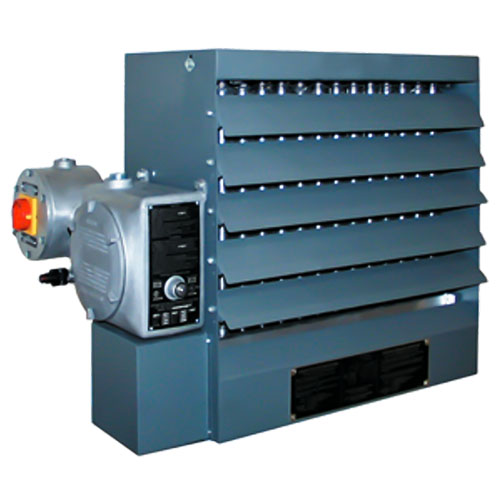

TPI HLA Series 3KW Hazardous Location Fan Forced Unit Heater, 3P - 208 Volts

Model Number: HLA12-208360-3.024

Features:

Designed for rugged industrial applications in hazardous locations where the possibility of explosion or fire exists due to the presence of certain flammable gases, vapors, powdered metals or dust

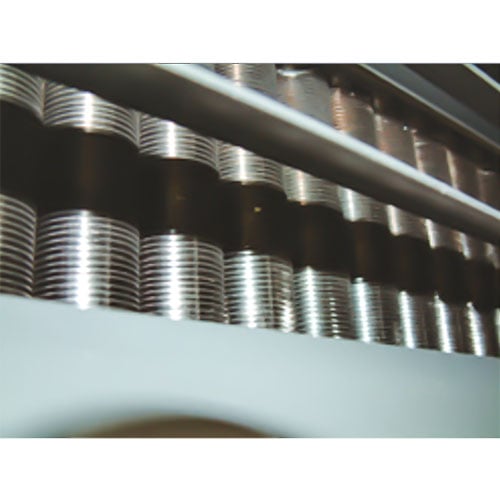

Permanently sealed, liquid to air, finned tube heat exchanger core
Ethylene Glycol to water mixture used as a heat transfer fluid in the heater core, providing -45° C. (-49° F) freeze damage protection

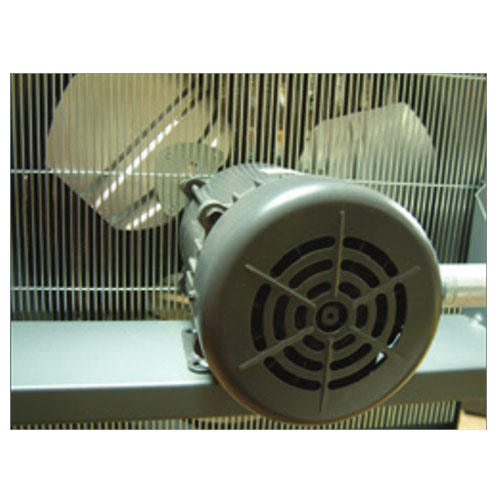

High-performance electric motor driven fan blows air across finned tubes to effect uniform heat transfer and area heat distribution

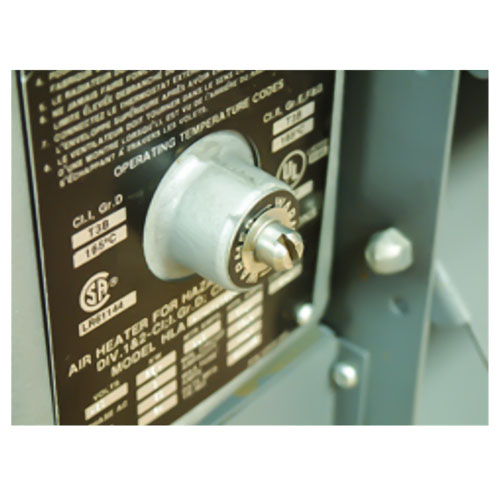

Manual Reset capillary type limit provides high temperature regulation and is rated for 6,000 cycles of service
Stainless steel and aluminum pressure relief valve for overpressure
A back-up contactor is included for additional protection
14 gauge steel cabinet powder coated epoxy paint finish contains heater core, motor, and fan assembly
Narrow gap safety fan guard shields all moving parts
Adjustable louvers allow directional control of air
Copper conductor wires enclosed in rigid metal conduits carry all electrical power
Box lugs furnished for field connections within approved enclosure
Made in U.S.A.

Specifications:

KW: 3
BTUs: 10250
Volts: 208
PH: 3
Amps: 9.8
Control Voltage: 24
Temp Rise °F: 16.5
Air Throw: 24
CFM: 580
Recom’d Mounting Ht.: 8’
W T.(LBS): 167

Note: Before selecting a hazardous location electric heater refer to Article 500 or other applicable standard referenced in the National Electric Code.

MPN: HLA122083603.024
UPC: 686334734004
